Home > Lights & Lighting > LED Interior Lighting > LED Tube > QUSUN LED T5 2pin Lamp Base PC Diffuser SMD2835
QUSUN LED T5 2pin Lamp Base PC Diffuser SMD2835
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
SMD2835
Warranty(Years):
2
Input Voltage(V):
AC180-250V
Payment & Shipping
Payment Methods:
Port of Shipment:
xiaolan port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Supplier Preminum 18W 1900lm Integrated LED T5 Tube LedNegotiableMOQ: 1 Piece -
High Lumen Premium Integrated Fixture 1900lm 18W Price Led Tube Light t5NegotiableMOQ: 1 Piece
-
Premium Integrated Fixture 18W1900lm T5 Tube 5NegotiableMOQ: 1 Piece
-
QUSUN 18W1900lm Premium Led Tube Lighting Led Tube t5NegotiableMOQ: 1 Piece
-
Integrated Fixture 104lm/w 14W Light Led t5 TubesNegotiableMOQ: 1 Piece
LED Light Source
SMD2835
Warranty(Years)
2
Input Voltage(V)
AC180-250V
Lamp Power(W)
5
Lamp Luminous Flux(lm)
520
Lamp Luminous Efficiency(lm/w)
104
Color Temperature(CCT)
Other, 6000k,4000k,3000k
Working Temperature(℃)
20, 45
Working Lifetime(Hour)
30000
Lamp Body Material
PC
Certification
CCC, CE, CQC, EMC, LVD, VDE
Place of Origin
Guangdong, China
Brand Name
QUSUN
Model Number
T5
Product Description

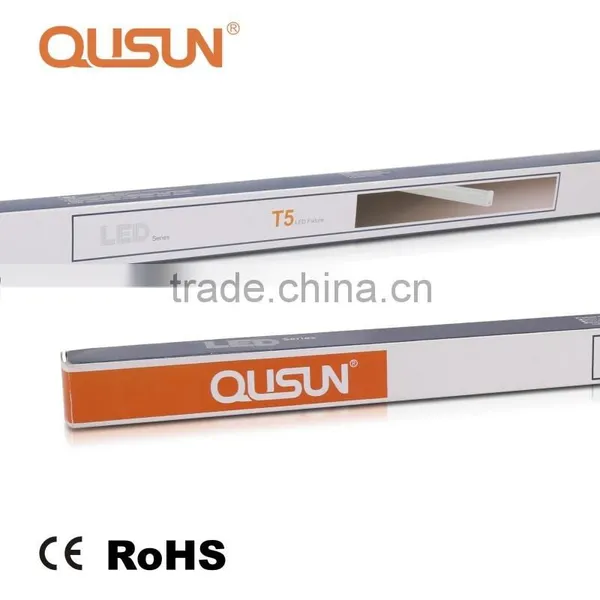

Packaging & Shipping
| Packaging specification |
|
| Packing: | Color Box |
| PCS/CTN: | 25 |
| Carton Box Dimmension (mm): | 1255*200*150 |
| CBM/CTN: | 0.0377 |
Company Information
Date Sheet
| LED lighting at a glance | |
| Base: | without, fully assembled |
| Nominal wattage: | 18W |
| Nominal luminous flux: | 1836lm |
| Comparative value: | approx. 36 W fluorescent lamp |
| Beam angle: | 120° |
| Dimensions: | L 1200 mm |
| Electrical specification | |
| Operating voltage: | AC 180-250V, 50/60 Hz |
| Rated wattage: | 18W |
| Power factor: | 0.5 |
| Switching cycles: | > 15.000 |
| Energy efficiency grade: | LED |
| Electrical protection: | IP20 |
| Protection class: | II |
| Lighting specification | |
| Rated luminous flux: | 1836lm |
| Rated color rendering index (CRI): | > 70 Ra |
| Rated beam angle: | 120° |
| Rated starting time: | < 0,5 s |
| Rated warm-up time (60 %): | instant full light |
| Further specification | |
| Nominal - / rated lamp life time: | 30.000 h |
| Dimmable: | no |
| Rated lamp mercury content: | 0,0 mg |
| Body housing: | PC |
| Operating temperature: | -20 to + 45°C |
F&Q
Why LED lamps?
LED lamps save 90% energy compared to halogen or normal bulbs and have a lifetime of 30,000 hours.
Which application area?
This is especially suitable for large spaces, where it depends on uniformly bright lighting throughout the room, eg Workshops, offices, etc.
