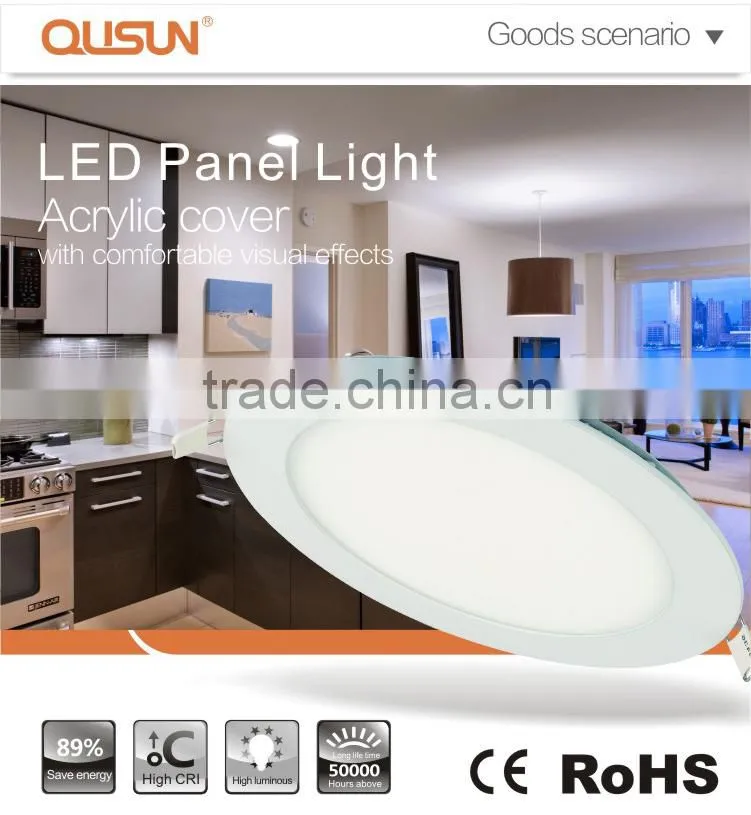

Round/Square Recessed ultra thin 12W led panel light round
- 80000 Piece / Pieces per Month
- Zhongshan
- Credit Card
- MDL Sky LED Panel Light Model: MDL-PL-SKY
- A led panel light 12w 220v led lights for home round backlit square frameless plastic recessed foco led panel lights
- A Factory Wholesale Low Price 8W 12W 18W 24W 30W Surface Indoor Lighting Ceiling Led Panel Lights
- MDL Ultra-thin LED Panel Light Model: MDL-PLRB
- Keysight/Agilent T34450A OLED Green
- led panel light 12w 220v round backlit square frameless plastic recessed led panel light
Product Details
LED Light Source: | SMD2835 | Warranty(Years): | 2 | Input Voltage(V): | AC180-250V/AC100-240V |
Lamp Power(W): | 12 | Lamp Luminous Flux(lm): | 924 | Lamp Luminous Efficiency(lm/w): | 77 |
Color Temperature(CCT): | Other, 6000K 4000K 3000K | Working Temperature(℃): | -20, 45 | Working Lifetime(Hour): | 30000 |
Lamp Body Material: | Aluminum | IP Rating: | Other, IP20 | Certification: | CCC, CE, CQC, EMC, LVD |
Place of Origin: | Guangdong, China | Brand Name: | QUSUN | Model Number: | MPLY102-12W |
Product Description
Packaging specification | |

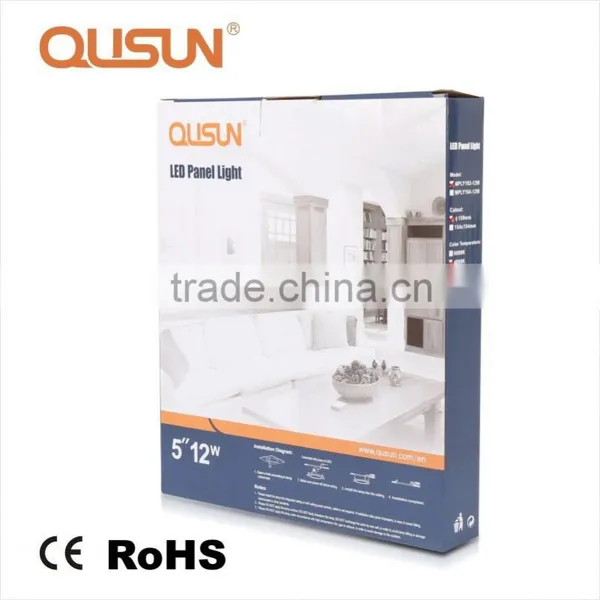

Packing: | Color Box |
PCS/CTN: | 30 |
Carton Box Dimmension (mm): | 540*380*245 |
CBM/CTN: | 0.05 |
LED lighting at a glance | |
Base: | without, fully assembled |
Nominal wattage: | 12W |
Nominal luminous flux: | 924lm |
Comparative value: | approx. 24W fluorescent tube |
Beam angle: | 120° |
Dimensions: | ø 170 mm |
Electrical specification | |
Operating voltage: | AC 180-250V/ AC100-240,50/60 Hz |
Rated wattage: | 12 W |
Power factor: | >0.5/>0.9 |
Switching cycles: | > 15.000 |
Energy efficiency grade: | LED |
Electrical protection: | IP20 |
Protection class: | II |
Lighting specification | |
Rated luminous flux: | 924lm |
Rated color rendering index (CRI): | > 75 Ra/>80 Ra |
Rated beam angle: | 120° |
Rated starting time: | < 0,5 s |
Rated warm-up time (60 %): | instant full light |
Further specification | |
Nominal - / rated lamp life time: | 30.000 h |
Dimmable: | no |
Rated lamp mercury content: | 0,0 mg |

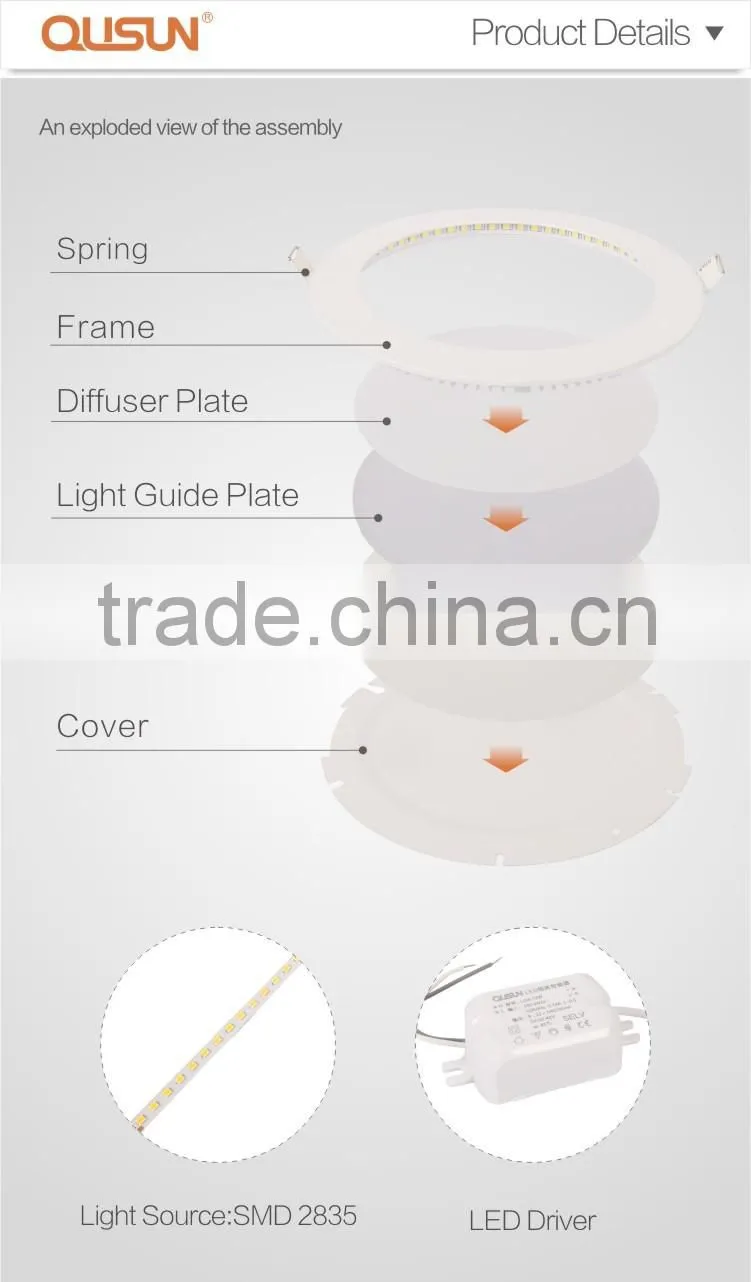

Body housing: | Die-casting Aluminum + PMMA |
Operating temperature: | -20 to + 45°C |
LED Slim Panel Light
LED Slim Panel Light in a simple design for uniform omnidirectional light with low power consumption at a relatively high luminosity.
Product Features:
- Ultra slim panel light, available in different standardised sizes, compatiable for replacing.

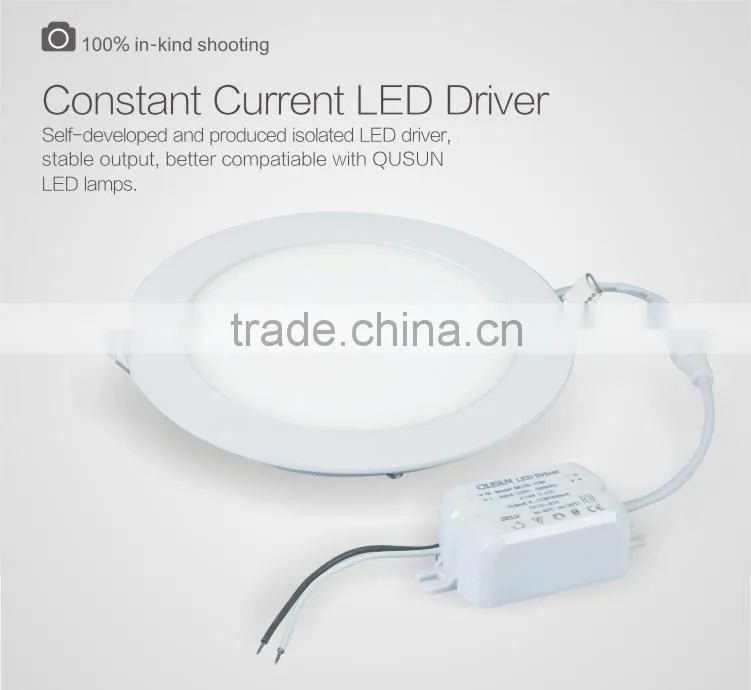

- Using safe external constant current driver.
- Uniform and well-distrubted light with low power consumption at a relatively high luminosity.
- Replacement to traditional downlight.

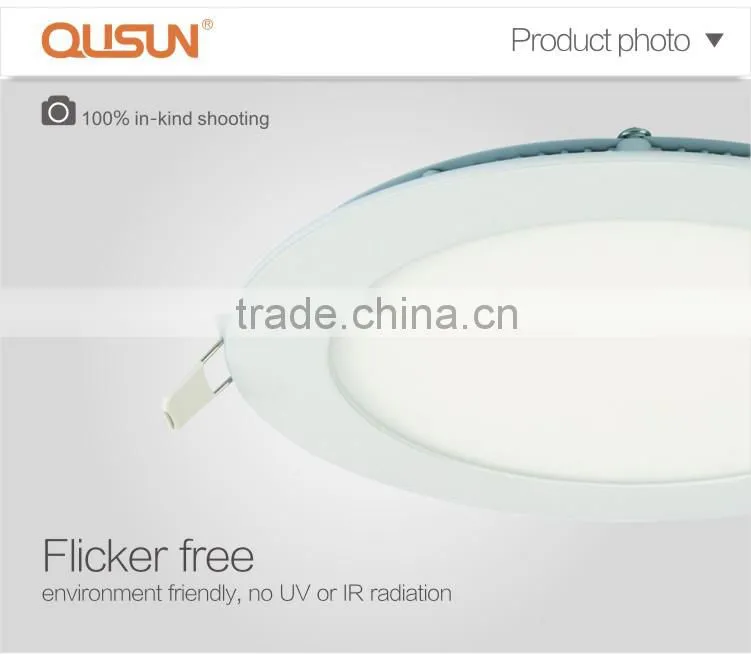

- No mercury, UV, IR or flicker.
Comparative value
This 12W LED panel light is equivalent to about a 24W fluorescent tube.
Application
The large viewing angle of 120°, this lamp isparticularly suitable for large spaces, where it depends on color-neutraland uniform lighting throughout the room, for example, bathrooms, kitchens, workshops, offices, corridors, staircases, etc.
Never change bulbs!
This lamp contains permanently installed (non-replaceable) LEDs. With a lifetime of 30,000 hours and more than 12,500 cycles it will light years across.
