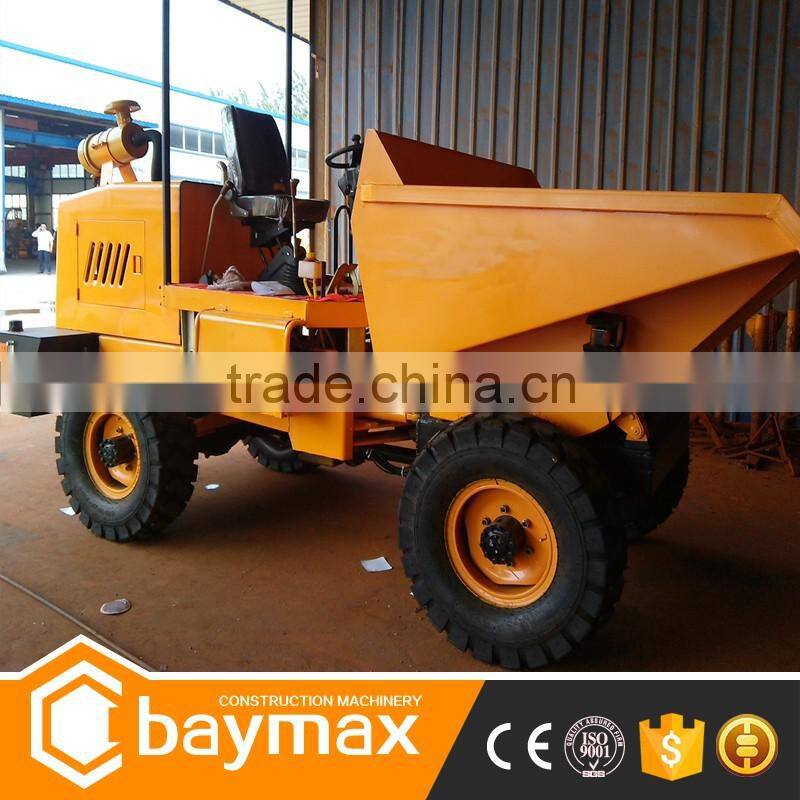

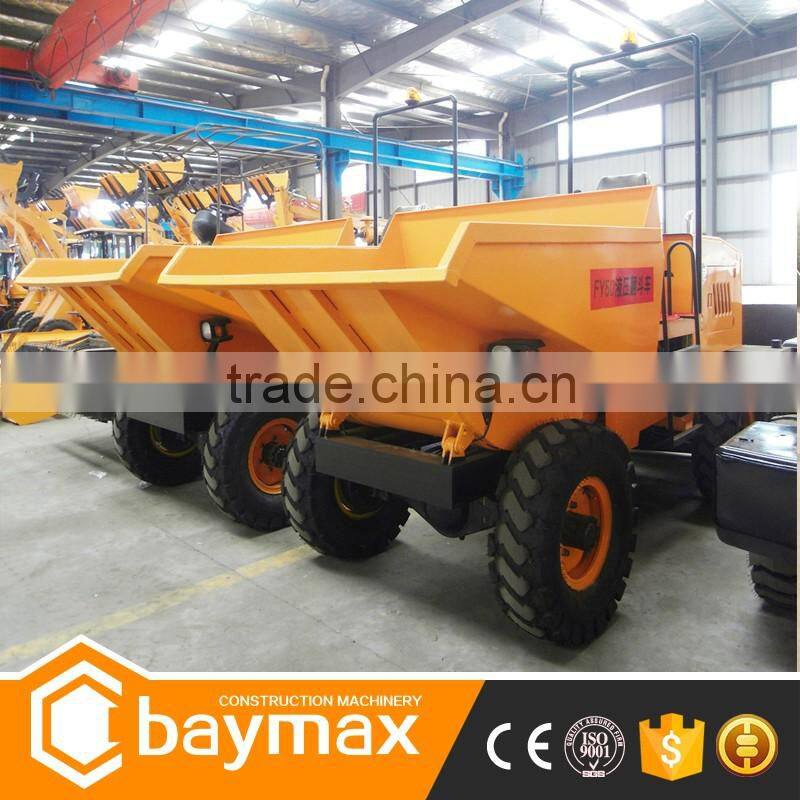

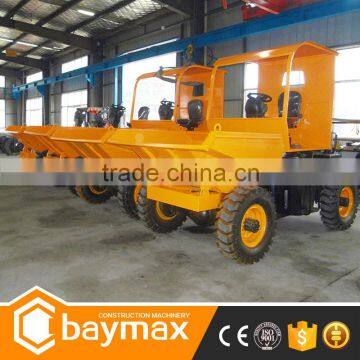

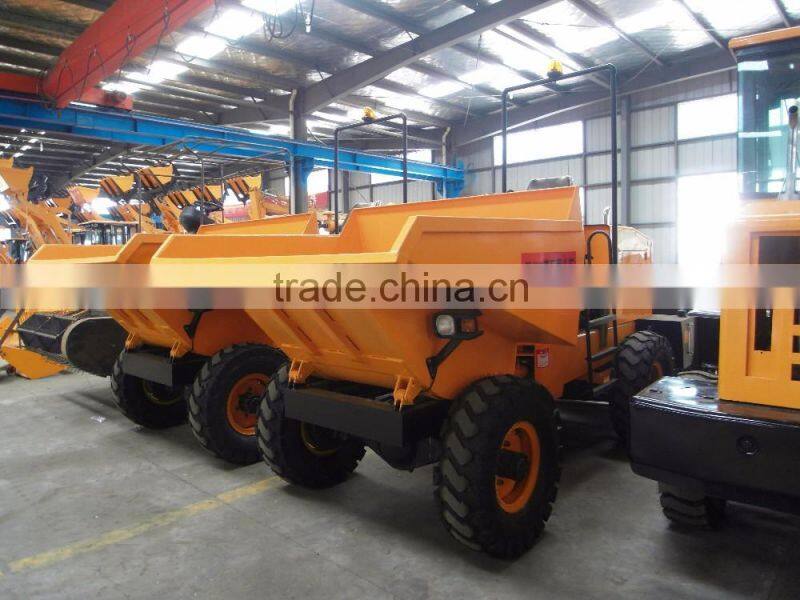

Mini tipper truck dumper demensions

FY50 mini dumper specification

model no.

              FY50

rated load (kg)

5000

bucket volume (m³)

2.5

discharge height (mm)

390

maximum gradient(%)

21

buck width

1700

traveling speed

Ⅰforward 1gear

9

Ⅱforward 2gear

8

Ⅲforward 3gear

22

reward gear

7.5

minimum turning radius (mm)

5000

overall dimension (mm)

5500*1700*2750

wheel base (mm)

2210

Thread (mm)

1400

mini ground clearance (mm)

200

net weight (kg)

3000

Engine

engine model

JD490

rated power(kw)

41

rated power(r/min)

2400

tipping model

Hydraulic(4 wheel drive)

electic starting

Yes
