OEM electronic manufacturing electronic toy
Quick Details
- Place of Origin: China (Mainland)
- Brand Name: HUA XING
- Model Number: 145
- Base Material: FR-4, PTEE, aluminum
- Copper Thickness: 1OZ
- Board Thickness: 1.6mm
- Min. Hole Size: 0.1mm
- Min. Line Width: 0.075mm
- Min. Line Spacing: 0.075mm
- Surface Finishing: HASL, OSP
- Color: White
1.Specifications
1.Fast and one-stop service
2.Accept Design,Clone,OEM,ODM service
3.PCB+Components+PCBA
4.CE,ROHS,UL

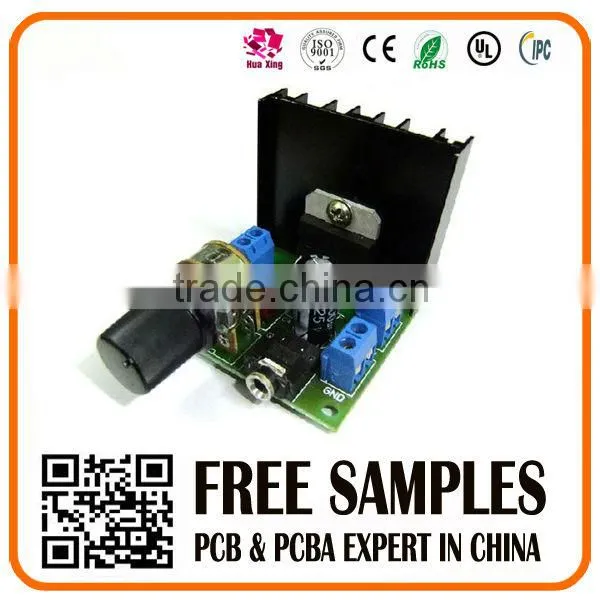

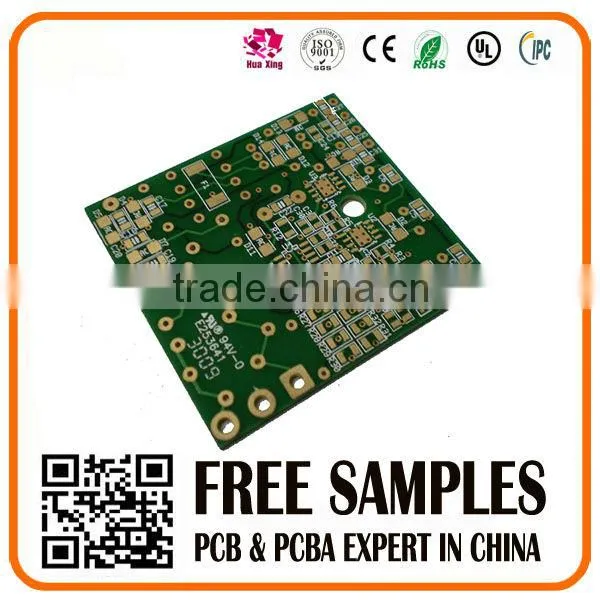

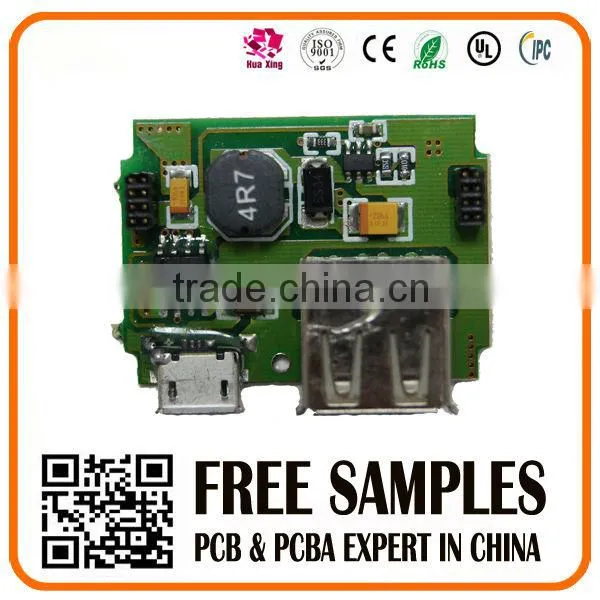

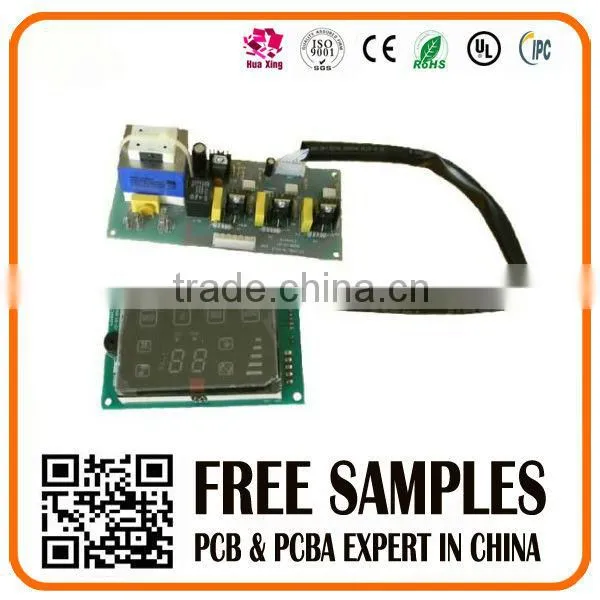

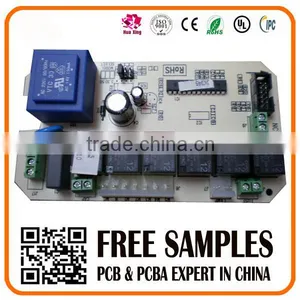

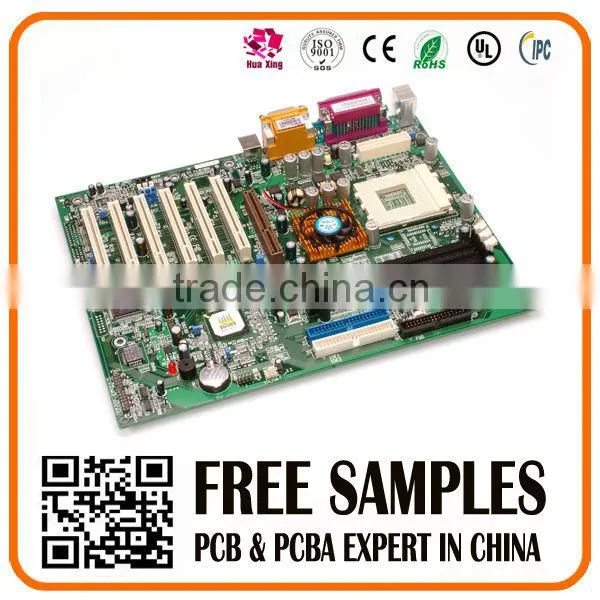

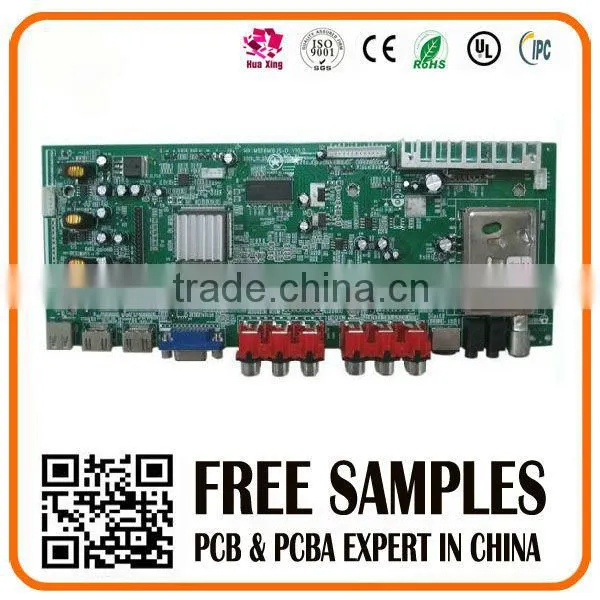

2.Picture or product
3.How To PCB Quote
Starting Requirements and Specifications
(1) Gerber data for all artwork layers
(2) Aperture list or lists for all layers
(3) Drill file in Gerber or Excellon format
(4) Drawings: Print should be hard copy or Gerber HPGL or DXF format
4.Technical capacity
5.PCB or PCB Assembly files requests
1)Gerber files of the PCB Board
2)BOM(Bill of material) for assembly
To short the lead time,please kindly advertise us if there is any acceptable components substitution.
3)Testing method & Test fixtures if necessary.
4)programming files & programming tool if necessary
5)Schematic if necess
6.Packaging
7. Detailed Terms for Pcb Assembly
Technical requirement:
1) Professional Surface-mounting and Through-hole soldering Technolog
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity
8.Certifications
9.Our factory
10.FAQ
OEM ODM electronic manufacturing electronic toy
1.What service can you provide?
We can provide PCB circuit board gerber file design,Copy and Clone,OEM and ODM service.Not only produce PCB,PCB Assembly,but also Plastic Enclosure,and Complete products
2.Are my design files secure when I send them to you?
Your files are held in complete safety and security while Hua Xing PCBA Limited is in possession of them. Your files are never shared nor will any third parties have access to your design files. Since they are your property, we respect the copyright of your files. The customer controls the disposition of these files per your requirements and written approval.
3.For small quantity orders, can you produce prototype PCBs?
Yes. Hua Xing PCBA Limited has the capability to produce circuit boards in any amount. But,the greater the quantity, the greater the cost savings.
4.Do you have an order minimum?
We accept order with as low as a quantity of 1 (piece or panel).
5.What is the standard thickness of laminate that Hua Xing PCBA Limited uses?
1.6 mm (0.063″)
6.What are all your options for laminate thickness?
We can handle the following non-standard thicknesses: 0.2mm (0.0079″), 0.4mm (0.016″), 0.6mm (0.024″), 0.8 mm (0.032″), 1.0 mm (0.04″), 1.2mm (0.047″), 2.0mm (0.079″), and 2.3mm (0.091″).
7.Do you have the capability of manufacturing high frequency materials? Rogers?
While expensive, we can manufacture these materials. Contact us for pricing prior to placing an order.
11.Shippment
More details about us, kindly scan website:
If you send us your Gerber Files , PCB specification and BOM, we will quote for you within 12 hours.
Thanks in advance !
If there are any inquiries please don't hesitate to contact us, we'll response in 24 hours!
