Folding shelf bracket,Heavy-duty storage and work surface applications

Specifications

Folding shelf bracket
4 position bracket
Heavy-duty storage and work surface applications
750lbs./pair

The folding bracket is a 4 position bracket (0, 70, 80 and 90 degree positions) that is perfect choice for creating a temporary work area when space is tight and flexability is critical.

Applications:
Heavy-duty storage and work surface applications
where limitations and/or flexibility in space is critical(Retail/grocery stores,warehouses,industrial,garages,maintenance storage,office/residential storage).
Load Rating:
Up to 750lbs./pair
Mounting:Wall
Material:Cold rolled steel
Finishes:
Zinc Plated
Features:
These sturdy folding L-brackets allow you to create a worksurface that cab be quickly folded out of the way when no longer needed.The bracket's convenient one-hand release mechanism makes the bracket easy-to-open,close,or adjust without the danger of getting hands caught in a folding crossbar.
*Brackets can be mounted to any type of wall

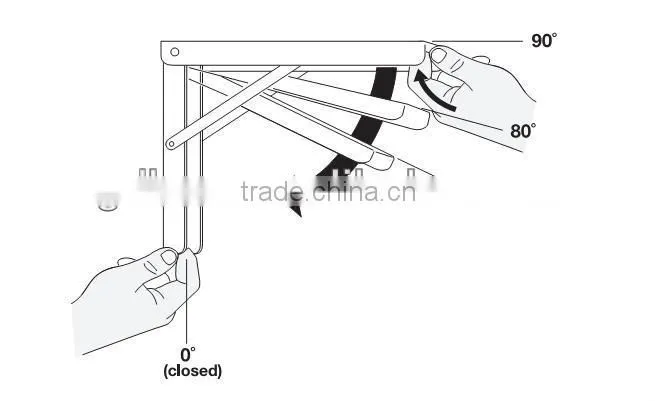

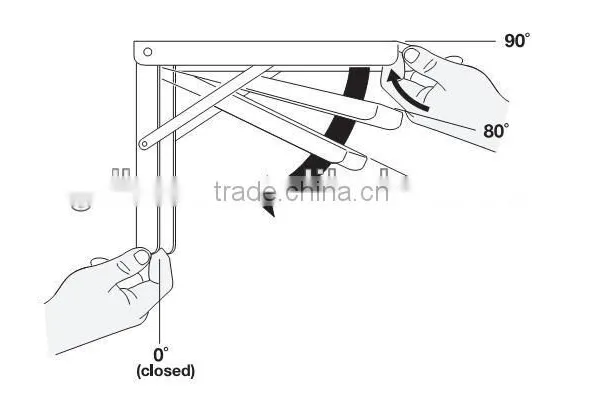

*Adjustable to 4 positions:90,80,70 and 0 degree(closed position)

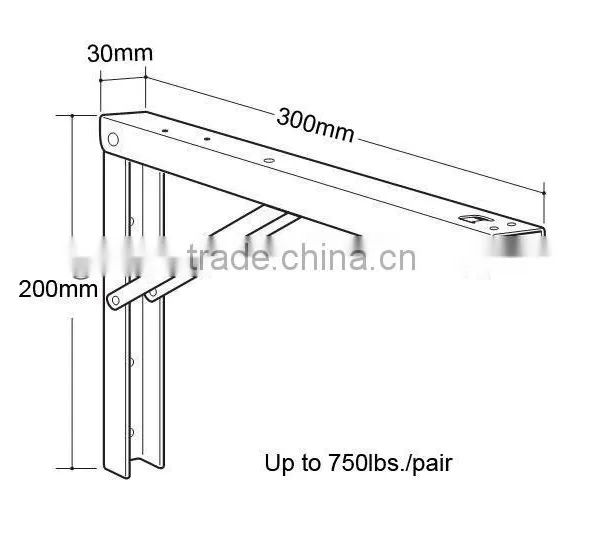

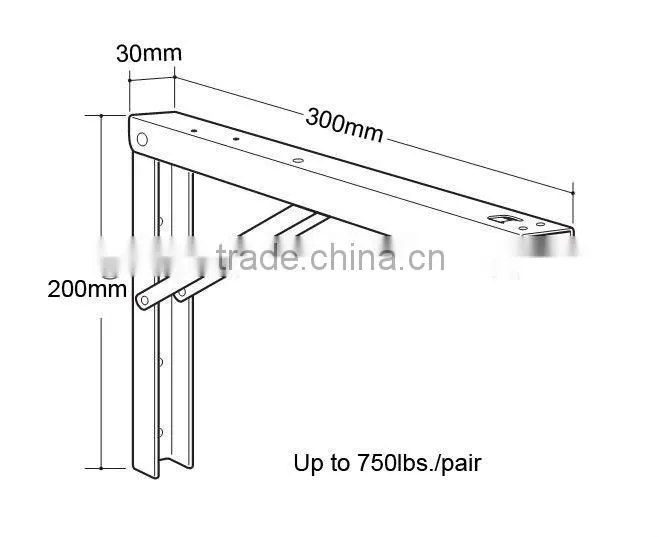

*Diameter 300mm deep x 200mm high
*Durable zinc-coated steel construction with spring-loaded release lever

Screw:#10,#8

Need more information, please contact us !

Details picture 1:

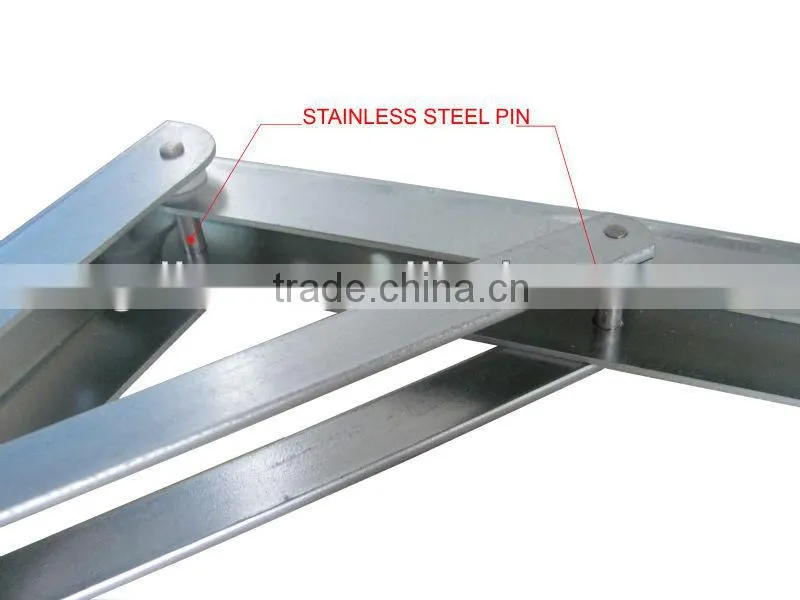

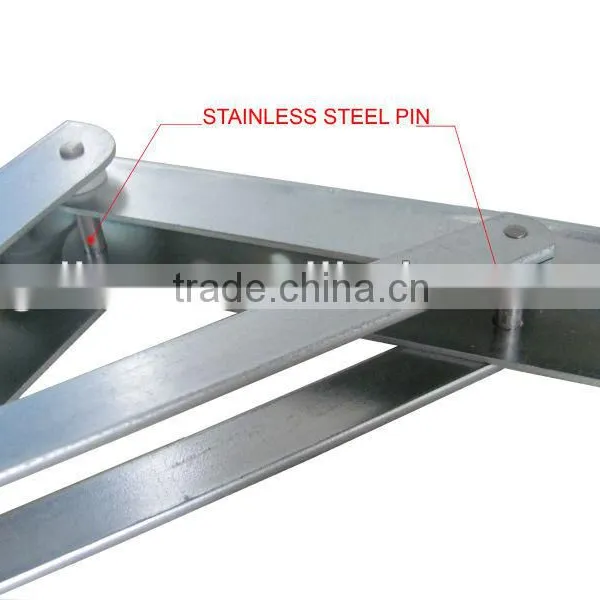

Stainless steel pin



Details picture 2:

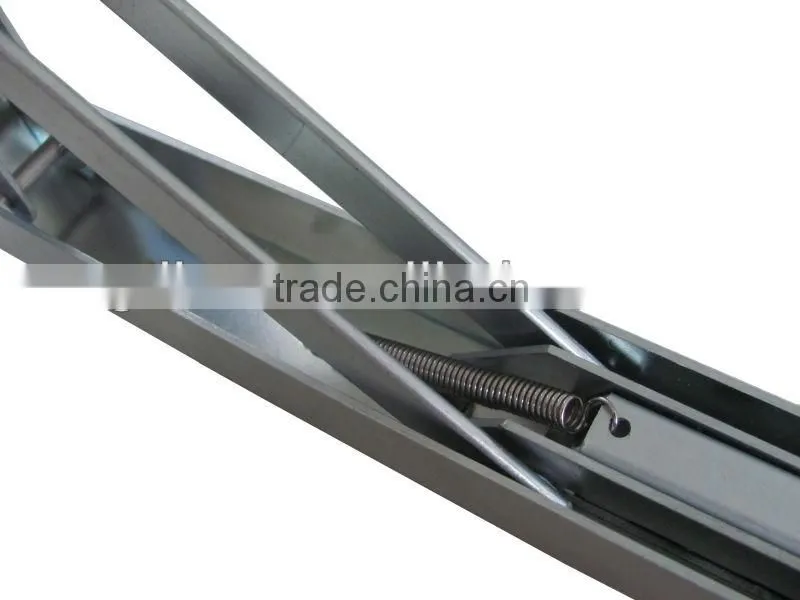

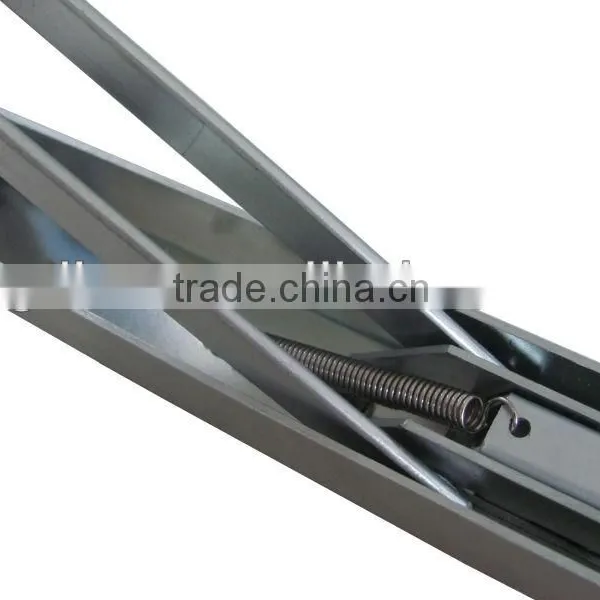

Spring
