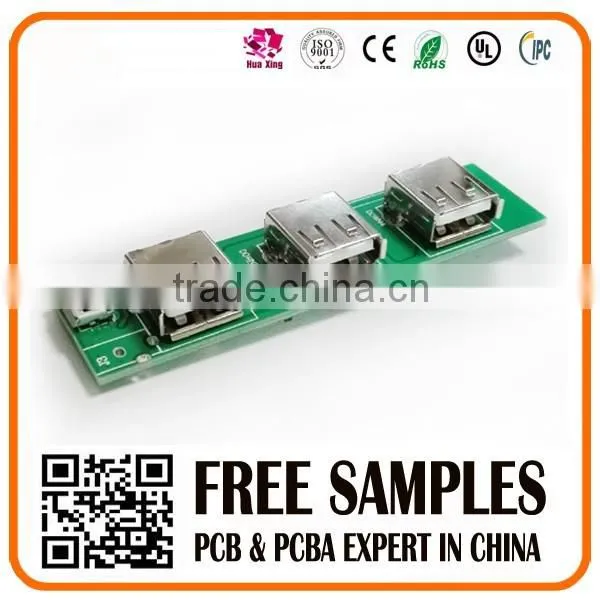

Help CenterUSB 3 Outputs Pcb Design and Production
Related Products
-
USB 3.0 HUB Manufacturer and DesignUS$ 5 - 20MOQ: 1 Piece -
Hot Seller Solar Water Heater Controller Electric Heater PCBAUS$ 1 - 25MOQ: 1 Piece
-
2 Layer ROHS Scanner PCBA Manufacturer in ChinaUS$ 1 - 25MOQ: 1 Piece
-
Pcb for Smt ConnectorUS$ 1 - 25MOQ: 1 Piece
-
Electronic Pcb Assembly SMT Components Mount PcbaUS$ 1 - 2MOQ: 1 Piece
PCB Manufacturer
1.Fast and one-stop service
2.Accept Design,Clone,OEM,ODM service
3.PCB+Components+PCBA
4.CE,ROHS,UL
PCB Assembly Semi-finished Products iamges:
Detailed Terms for Pcb Assembly
Technical requirement:
1) Professional Surface-mounting and Through-hole soldering Technolog
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity
PCB Material Supplier
The first-class brand raw material, the quality has the safeguard.
The well-chosen types of raw material are well-known brand in PCB industry, which guarantees the steady product quality of HUA XING PCBA LIMITED.
More attention has been paid on th long-term relationship establishment between raw material suppliers and HUA XING PCBA LIMITED to assure the stability and Reliability of the on-time material supply.
PCB or PCB Assembly files requests
1)Gerber files of the PCB Board
2)BOM(Bill of material) for assembly
To short the lead time,please kindly advertise us if there is any acceptable components substitution.
3)Testing method & Test fixtures if necessary.
4)programming files & programming tool if necessary
5)Schematic if necessary
FAQ:
1.What service can you provide?
We can provide PCB gerber file design,Copy and Clone,OEM and ODM service.
Not only produce PCB,PCB Assembly,but also Plastic Enclosure,and Complete products
2.Are my design files secure when I send them to you?
Your files are held in complete safety and security while Hua Xing PCBA Limited is in possession of them. Your files are never shared nor will any third parties have access to your design files. Since they are your property, we respect the copyright of your files. The customer controls the disposition of these files per your requirements and written approval.
3.For small quantity orders, can you produce prototype PCBs?
Yes. Hua Xing PCBA Limited has the capability to produce PCBs in any amount. But,the greater the quantity, the greater the cost savings.
4.Do you have an order minimum?
We accept order with as low as a quantity of 1 (piece or panel).
5.What is the standard thickness of laminate that Hua Xing PCBA Limited uses?
1.6 mm (0.063″)
6.What are all your options for laminate thickness?
We can handle the following non-standard thicknesses: 0.2mm (0.0079″), 0.4mm (0.016″), 0.6mm (0.024″), 0.8 mm (0.032″), 1.0 mm (0.04″), 1.2mm (0.047″), 2.0mm (0.079″), and 2.3mm (0.091″).
7.Do you have the capability of manufacturing high frequency materials? Rogers?
While expensive, we can manufacture these materials. Contact us for pricing prior to placing an order.
8.What options exist for the thickness of copper?
0.5 oz, 1.0 oz, 1.5 oz, 2.0 oz, 2.5 oz, 3.0 oz, 3.5 oz, 4.0 oz, 4.5 oz and 5.0 oz.
9.What are the color options for PCB solder masks?
Green, black, blue, red green, yellow and white
10.What are the options for surface finishes?
The options include HASL, Immersion gold, Immersion tin, Immersion Silver, OSP, and HASL lead free. Call for other options.
11.What file formats do you accept for PCB assembly?
Gerber and CAM Auto CAD DXF, DWG formats.
