Help CenterCustomized Pcba, Wich Metal Case Assembly
US$ 1.2 - 10
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hua Xing
Model Number:
HX-02-079
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electronic Pcba OEM & ODM ServicesUS$ 0.5 - 25MOQ: 1 Piece -
Glucometer Mainboard ,circuit Board for GlucometerUS$ 1 - 25MOQ: 1 Piece
-
Blood Pressure Monitor PCB Board ,blood Pressure With ODM/OEM ServiceUS$ 1 - 25MOQ: 1 Piece
-
Led Greeting Card Recordable Pcb Sound ModuleUS$ 1 - 2MOQ: 1 Piece
-
High Quality Oem Computer Mouse Pcb Circuit BoardUS$ 1 - 2MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Hua Xing
Model Number
HX-02-079
Base Material
FR4
Copper Thickness
1oz
Board Thickness
1.6mm
Min. Hole Size
0.1mm
Min. Line Width
0.75mm
Min. Line Spacing
0.075mm
Surface Finishing
ENIG
Specifications

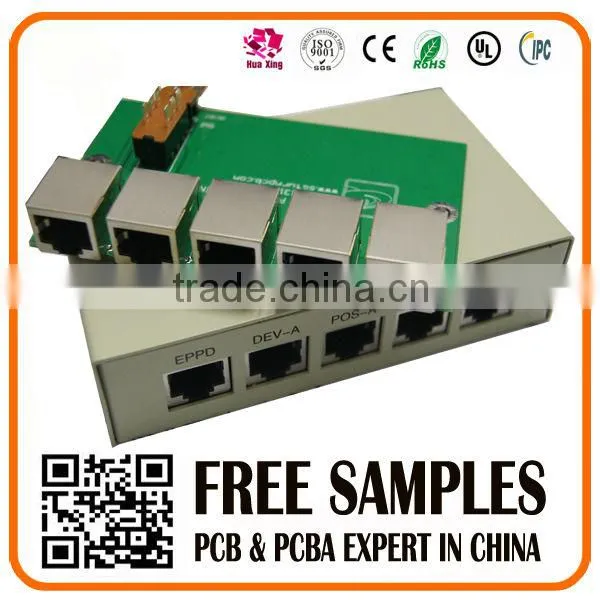

customized pcba, wich metal case assembly:1,Pcba 100% test
2,Competitive price,fast delivery
3, No MOQ
customized pcba, wich metal case assembly:
PCB Assembly of Thru-Hole & Surface Mount Technology
Electro/Mechanical Assembly Cables & Harnessing
Press-fit connectors into high density PCBs & Backplanes
In-house programming
Potting, encapsulation, conformal coating
Full Functional Testing
Specification of PCB Manufacture
| Item | Mass Production | Pilot Run Production |
| Capacity | Capacity | |
| Layer Counts | 1L—18L, HDI | 20-28 , HDI |
| Material | CME1,CME3,FR-4, High TG FR4 , Halogen-free FR4 , aluminium ,Ceramic | |
| Teflon,PTFE(F4B,F4BK), Rogers(4003,4350,5880) Taconic(TLX-8,TLX-9), Arlon(35N,85N)etc. | ||
| Material Mixed Laminate | 4 layers -- 10 layers | 12 layers |
| FR4+Ro4350 , FR4+Aluminium , FR4+ FPC | ||
| Maximum Size | 610mm X 1200mm | 1200 - 2000MM |
| Board Outline Tolerance | ±0.15mm | ±0.10mm |
| Board Thickness | 0.125mm--6.00mm | 0.1mm--8.00mm |
| Thickness Tolerance ( t≥0.8mm) | ± 8% | ±5% |
| Thickness Tolerance( t<0.8mm) | ±10% | ±8% |
| Minimum Line / Space | 0.10mm | 0.075mm |
| Trace width Tolerance | 15%-20% | 10% |
| Minimum Drilling Hole (Mechanical) | 0.2mm | 0.15mm |
| Minimum laser hole | 0.1mm | 0.075mm |
| Hole Position/hole Tolerance | ±0.05mm PTH:±0.076MM NPTH:±0.05mm | |
| Mini hole ring (single | 0.075MM | 0.05MM |
| OutLayer Copper Thickness | 17um--175um | 175um--210um |
| InnerLayer Copper Thickness | 17um--175um | 175um--210um |
| Mini Solder Mask Bridge | 0.05mm | 0.025mm |
| Impedance Control Tolerance | ±10% | ±5% |
| Surface Finishing | HASL, Lead free HASL, Immersion gold, Immersion tin, Immersion Silver. | |
| Plated gold , OSP, Carbon ink, | ||
| 1-2L Lead-time | 3-7 days | 1-2 days |
| 4- 8L Lead-time | 7-10 days | 2-7 days |
| 10-18L Lead-time | 10-15 days | 4-9 days |
| 20-28L Lead-time | 15-20 days | |
| Acceptable File Format | ALL Gerber Files,POWERPCB,PROTEL,PADS2000,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000 etc. | |
| Quality Standards | IPC-A-600F and MIL-STD-105D CHINA GB<4588> | |
Short Lead Time and Urgent Service:
Layers |
Sample |
Mass order |
Urgent |
1-2L |
3-5 days |
5-7days |
12-24hours |
4- 8L |
5-7days |
7-10days |
48-96hours |
10-18L |
7-10 days |
10-12days |
120hours |
20-28L |
15-20 days |
||
We can provide quickturn prototype
We don't have MOQ, any smaller order will be welcomed
We will send the boards to you by DHL, TNT, UPS, FEDEX and so on to saving the transport time.
We will reply your e-mail from 9: 00am to 23: 00pm by two shifts.
We sincerely hope to establish longtime and friendly business relationship with you. Good quality, reasonable price and the 5-Star service are guaranteed.
Pls. Send us PCB files or gerber data so that we can quote for you
