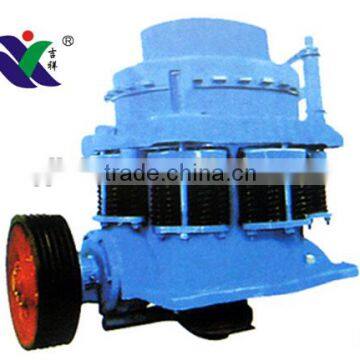

cone crusher PYB MODEL symons cone crusher b160

 Cone crusher is widely usedin metal and non-metallic mines, cement, construction, sand and metallurgical industries. It is applicable to materials like iron ore, nonferrous metal ores, granite, limetone, quartzite, sandstone, pebbles and so on.

cone crusher WORKING PRICIPLE

Cone crusher crushes materials by working between the movable cone and fixed cone. The movable cone is supported by spherical bearing and fixed on an hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. The movable cone and erect shaft is driven by the eccentric shaft sleeve together. The eccentric shaft sleeve is driven by horizontal shaft and fimbriated gear, and the wheel of the conveyor belt is driven by motor through v-belts. The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve of cone crusher rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone, rocks are grinded into pieces, when the cone leaves, grinded materials is discharged from the discharge hole. The fixed cone can be ascended or descended by adjusting setting to adjust the width of discharge hole, consequently the output size is determined.

Technicla datas of  Spring Cone Crusher:

In the mining and quarry industry, jaw crushing plant performs as a powerful mobile crusher plant. They can be operated either as independent units, or as two-stage crushing plant with primary and secondary crushing stages, or as three-stage crushing plant with primary,

secondary, and tertiary crushing according to clients' particular requirements. Likewise, it

can be easily adjusted to suit crushing applications for two options, whether by choosing

feeding to crusher or feeding to screen.
