Specifications
Automatic glass bottle alcohol / alcoholic drink filling machine1.Capacity:1000-2000bph
2.Bottle size:250-2000ml
3.CE ISO

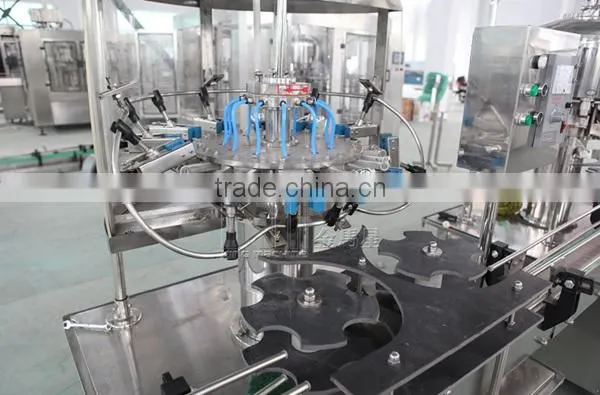

Automatic glass bottle alcohol / alcoholic drink filling machine
1.Capacity:1000-2000bph
2.Bottle size:250-2000ml
3.PLC control
4.CE ISO certks
Introduction:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Flow chart:
Bottle washing machine--Negative filling machine--Corking machine--Aluminum cap shrinking machine--Labeling machine--Box sealing machine
1.Automatic washing machine:
Item |
Description |
Model: ZPC-12 |
1 |
Power |
0.75kw |
2 |
Main material : |
Stainless steel 304 |
3 |
Production capacity |
2000bottle/hour |
4 |
Bottle diameter range |
60-110mm |
5 |
Bottle height |
140-380mm |
6 |
Filling temperature |
5-90 centigrade |
7 |
Filling pressure |
0.2-0.3Mpa |
8 |
Motor |
Siemens brand |
9 |
Controller ways |
Electromagnetic speed regulating |
10 |
Speed reducer |
Made-in-china |
11 |
Dimension |
1200×1100×2100mm |
12 |
Weight |
1000 |

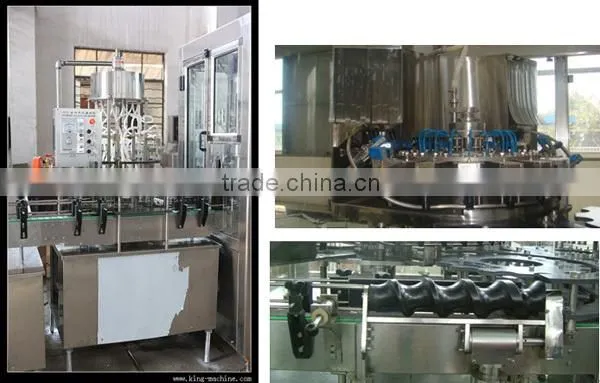

2.Negative filling machine:
Item |
Description |
Model: GC-12 |
1 |
Power |
1.1kw |
2 |
Main material : |
Stainless steel 304 |
3 |
Production capacity |
2000bottle/hour |
4 |
Bottle diameter range |
60-110mm |
5 |
bottle height |
140-380mm |
6 |
Filling temperature |
5-90°C |
7 |
Filling pressure |
0.2~0.3Mpa |
8 |
Motor |
Siemens brand |
9 |
Controller ways |
Electromagnetic speed regulating |
10 |
Speed reducer |
Made in china ,best brand |
11 |
Dimension |
1200×1100×2100mm |
12 |
Weight |
1000kg |

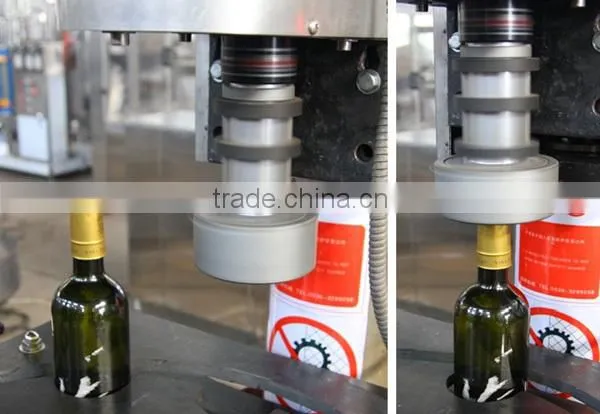

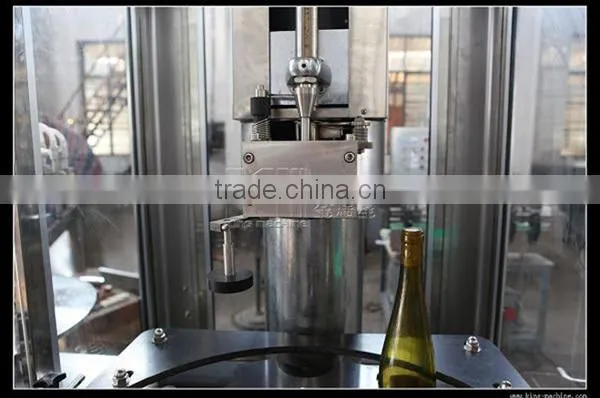

3.Corking machine:
Item |
Description |
Model: YQX-3 |
1 |
Power |
0.55kw |
2 |
Main material : |
Stainless steel 304 |
3 |
Production capacity |
2000bottle/hour |
4 |
Bottle diameter range |
60-110mm |
5 |
bottle height |
140-380mm |
6 |
Motor |
Siemens brand |
7 |
Dimension |
940×650×2000mm |
8 |
Weight |
400kg |
4.Aluminum capping machine:
