Automatic Alcohol / Glass Bottle Filling Machine / Bottling Equipment
US$ 18,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage, Other, Food, Beverage, Machinery & Hardware, Alcohol / wine
Packaging Type:
Cans, Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Negative Filling Machine / Filling Equipment for Alcohol / Alcoholic DrinkUS$ 15,000 - 40,000MOQ: 1 Set -
Automatic Alcohol / Vodka Filling Line / Bottling EquipmentUS$ 18,000 - 50,000MOQ: 1 Set
-
Automatic Glass Bottle Alcohol / Alcoholic Drink Bottling LineUS$ 3,200 - 12,000MOQ: 1 Set
-
Automatic Alcoholic Drink / Beverage Filling EquipmentUS$ 20,000 - 50,000MOQ: 1 Set
-
Automatic Alcoholic Drink / Beverage Filling Machine Quality ChoiceUS$ 20,000 - 50,000MOQ: 1 Set
Condition
New
Application
Food, Beverage, Other, Food, Beverage, Machinery & Hardware, Alcohol / wine
Packaging Type
Cans, Bottles
Packaging Material
Plastic, Metal, Glass
Automatic Grade
Automatic
Driven Type
Mechanical
Voltage
3PHASE
Power
4.2KW
Place of Origin
Jiangsu, China
Brand Name
kingmachine
Model Number
ZSJ
Dimension(L*W*H)
2500*2000*2350mm
Weight
2500kg
Certification
CE,ISO,SGS
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Glass bottle filling machine1.Washing,filling,capping 3in1
2.Used for glass bottle
3.Capacity:500~10000bottle/hour
4.CE,ISO
glass bottle filling machine
Automatic Glass Bottle Filling Machine / Bottling Line
Products Introduction:
Glass bottle filling machine:
This BGF Wash-filling-capping 3-in-1unit:Vodka Machinery is used to produce alcoholic beverage machinery and other non-gas beverage machinery in glass bottle ,The CGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Technical parameters:
Model |
Washing heads |
Filling heads |
Capping heads |
Capacity(b/h) 500ml |
Motor power (KW) |
Overall dimension (mm) |
BFG6-6-1 |
6 |
6 |
1 |
500-700 |
1.5KW |
2100x1400x2500 |
BFG14-12-4 |
14 |
12 |
4 |
1500-2000 |
2.2KW |
2460x1720x2650 |
BFG16-16-5 |
16 |
16 |
5 |
2500-3000 |
3KW |
3100x2100x2650 |
BFG18-18-6 |
18 |
18 |
6 |
4000-5000 |
4KW |
3500x2500x2650 |
BFG24-24-8 |
24 |
24 |
8 |
6000-8000 |
7.5KW |
4600x1800x2650 |
BFG32-32-10 |
32 |
32 |
10 |
10000-12000 |
9.5KW |
5200x4500x3400 |

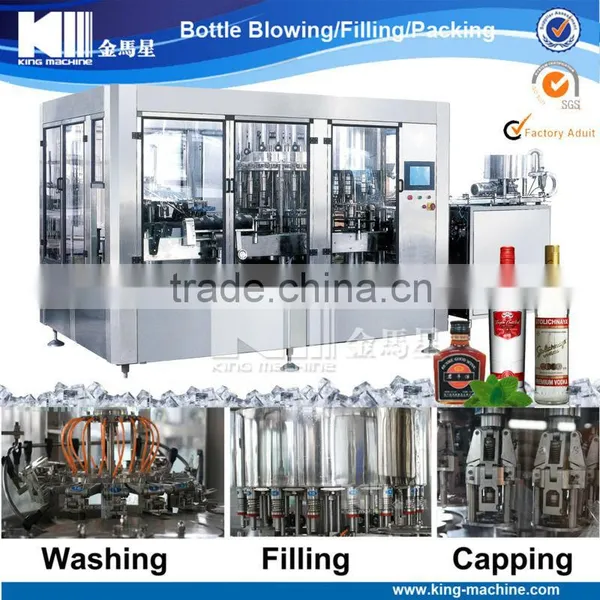

Photos:(Glass bottle filling machine)
