Specifications
glass vodka / alcohol bottling machine1.Capacity(500ml):2000 (b/h)
2.Diameter 50 - 100mm

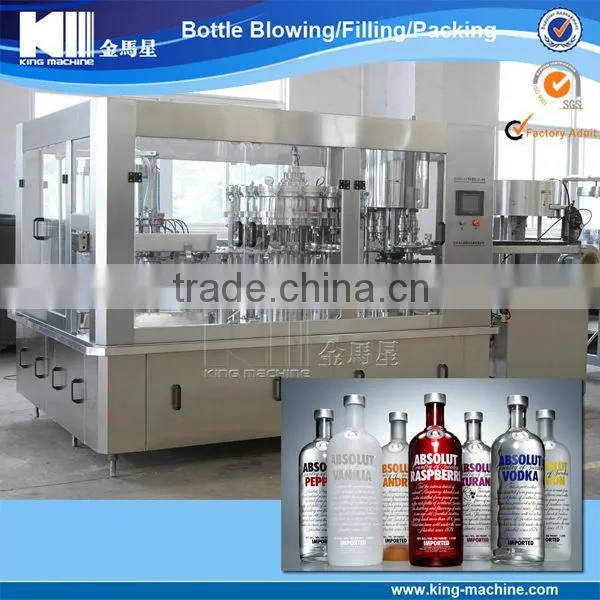

Glass vodka / alcohol bottling machine
1.Capacity(500ml):2000 (b/h)
2.Bottle Standard
3.Diameter 50 - 100mm
4.Height:150 - 310mm
Process: Bottle Washing + Filling + Capping
It is a full-automatic multiple-function washing, filling and capping unit. Three parts connect with one line .It is used in washing, filling and sealing all kinds of non-air drinks such as fruit juice, oil & vinegar, wine, fruit wine, mineral water and pure water. The line has features of unique design, new style, complete functions, multi-purpose, convenient in operation, beautiful construction, high automation. It is the best filling equipment in China.
Working step:
Putting bottle on to the conveyor→auto rinsing bottle with water → auto filling water into bottle → auto sealing the cap → put bottle label by hand → shrinking label auto and out putting the bottle with water(finished) like the following picture
Details

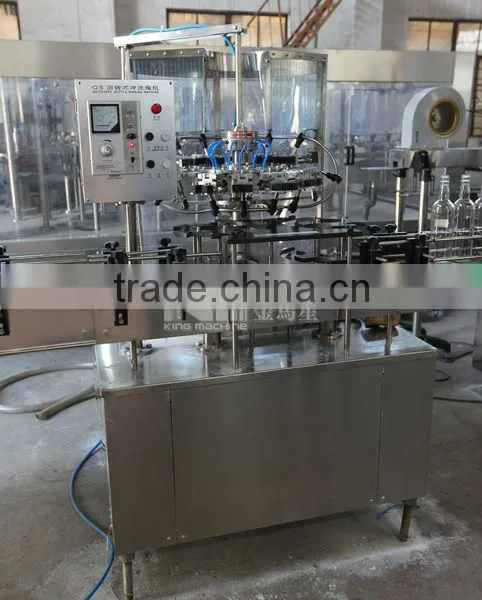

1.Bottle washing/rinsing part:
Rinsing bottles inside with sterilizing liquid, germless water and pure water;
Number of washing heads: 12
Production capacity : 1000-2000B/H (take 500ml PET bottle as sample)
Applicable bottles height :56-100mm
Bottles height :160-310mm
Main machine power 0.75KW

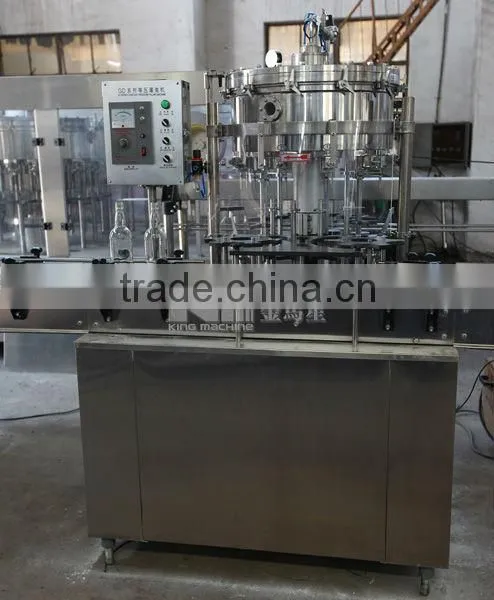

2.Filling Part:
Fully-automatic filling pure water into bottles, controlled by PLC
Number of bottle filling :12
Bottleneck inner diameter :15-25mm
Bottle body’s outer diameter: 55-95
Bottle’s height : 160-310mm
Production capacity: 1000-2000B/H (base 500ML bottle )
Speed-adjusting electromotor: 0.75kw 125-1250r/min
Speed down electromotor : WHT100-50VIII
Net weight : 1000KG G.W. 1250KG
3.Capping Part:
Fully-automatic covering and pressing caps on bottles
Electromotor ’s power :0.75KW
Production capacity: 1000-2000B/H
Bottle ‘s diameter : 56-100mm
The whorl of bottleneck’s diameter: 27mm
Theftproof cap’s size: 28*15mm(inside size)
N.W : 600KG G.W. : 650KG
