Help CenterFilling and Capping 3-in-1 Machine
Related Products
Specifications
bottle filling machineISO,SGS,CE
5000BPH

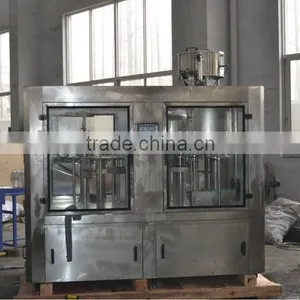

Filling and capping 3-in-1 machine-Product details
The machine is mainly applied for the filling of beverage. Integrating with washing, filling and sealing, it realizes full automation in the whole process, suitable for polyester bottle and plastic bottle filling of mineral water and purified water. The bottle types applicable for various parts are easily, conveniently and rapidly adjustable. It adopts new micro-negative pressure filling, stable and reliable. Compared with the machines of the same specification, the benefit of this machine is larger. The machine adopts advanced MITSUBISHI programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photoelectrical inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choice equipment of beverage manufacturers.
Main configuration for 3 in 1 filling machine:
1) Material of rinse and rotary plate, machine table is stainless steel 304.
2) Touch screen:DIGITAL
3) PLC:OMRON/ MITSUBISH
4) Photocell switch and proximity switch:AUTONICS (South Korea)
5) Main Pneumatic components:AIRTAC
Technical data:
Equipment type |
CGF14-12-5 |
Pressure of air supplier |
0.7 |
Washing head |
14 |
Consumption water |
1.1-2.4 M3/hour |
Filling head |
12 |
Washing water pressure |
0.2~0.25MPa |
Capping head |
5 |
Max capacity
|
500ml 4500BPH |
Bottle material |
PET |
Cap material |
HDPE |
Bottle height |
120-360mm |
Bottle diameter |
φ50-φ120mm |

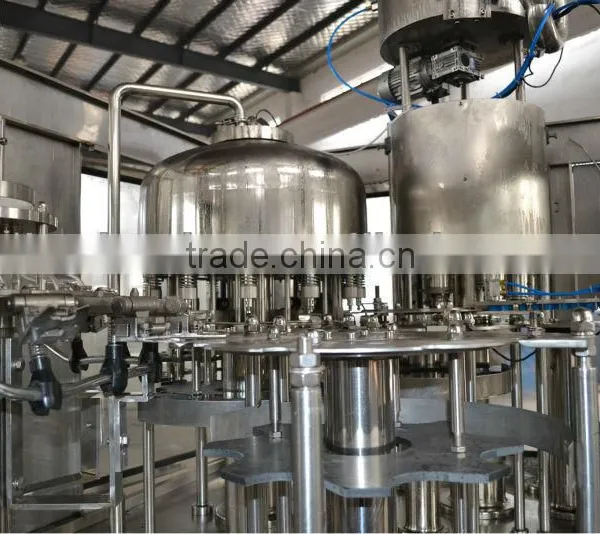

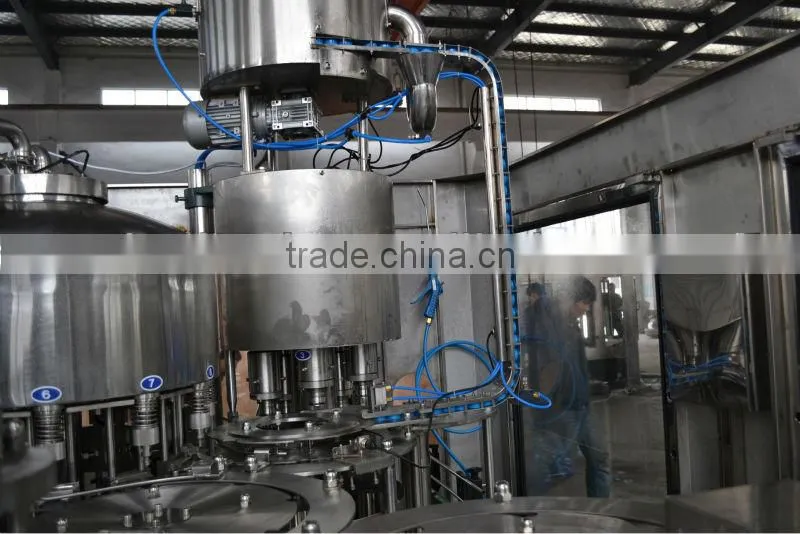

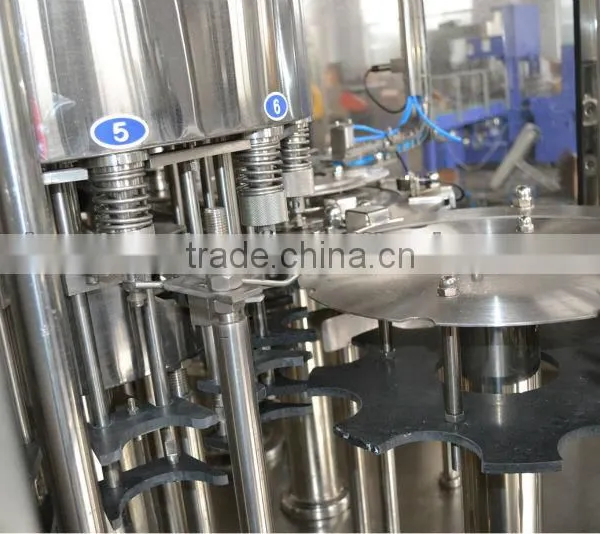

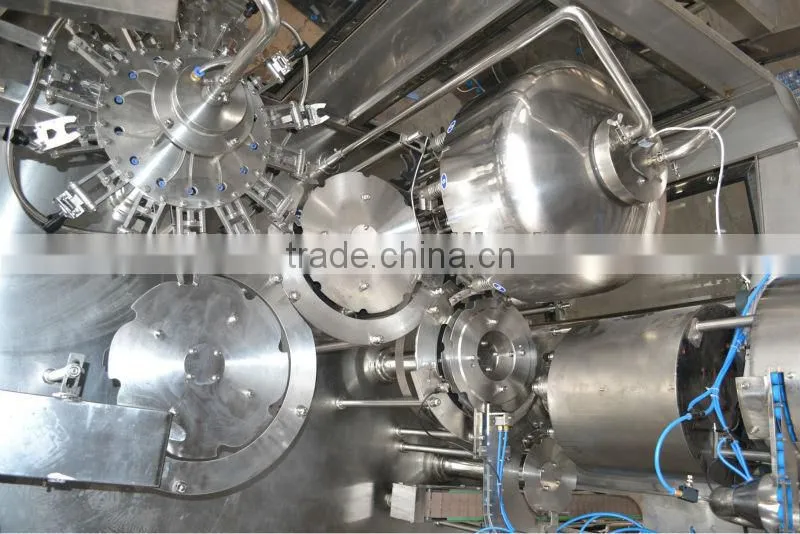

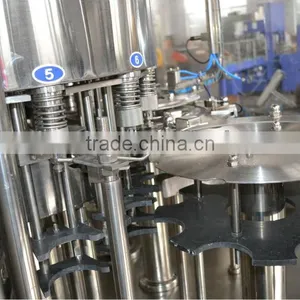

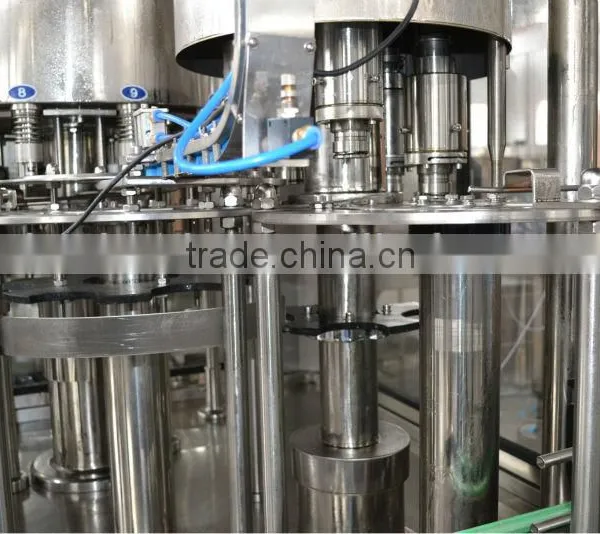

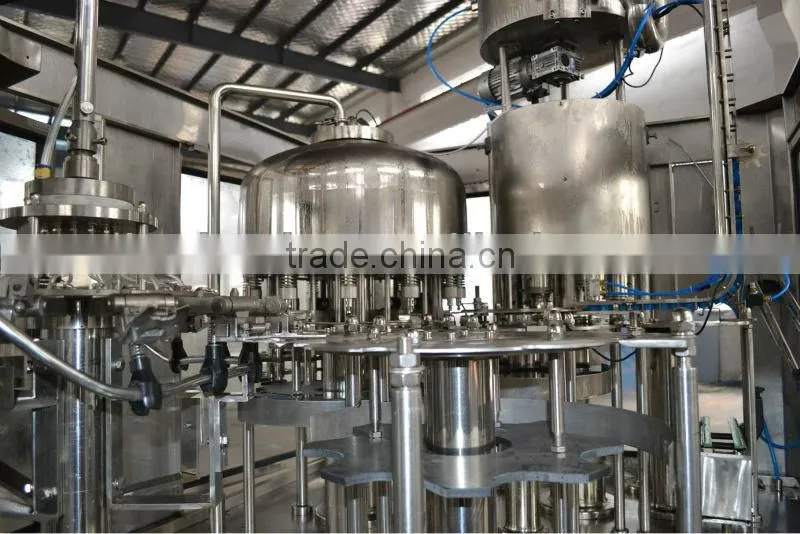

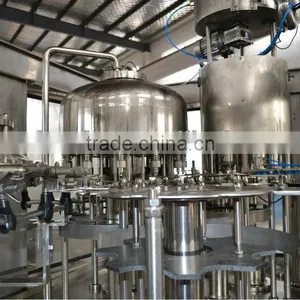

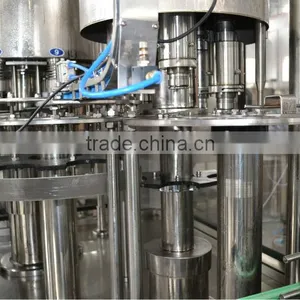

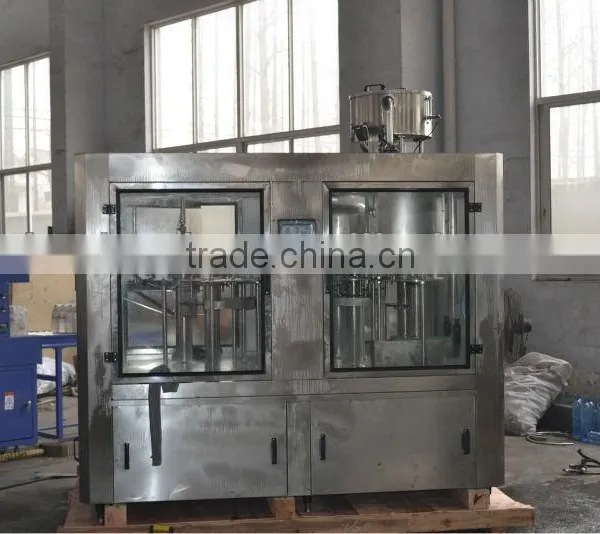

Filling and capping 3-in-1 machine-Pictures
Filling and capping 3-in-1 machine-Company details
Filling and capping 3-in-1 machine-Workshop details
Filling and capping 3-in-1 machine-Certificate
Filling and capping 3-in-1 machine-Cooperation brand
Filling and capping 3-in-1 machine-Packaging&Shipping
Filling and capping 3-in-1 machine
1. Warranty : After installing 1 year OR after shipping 15 month for filling and capping 3-in-1 machine .
2. We can sen engineer to buyer's place to help install & test machines; and we can help train buyer's workers for filling and capping 3-in-1 machine
Filling and capping 3-in-1 machine
1. 24 - hour service hotline :0086-15951172717
2. Competitive price with high quality machine & fast, sincere and efficient service.
