Help CenterMinimum Speed Water Bottling Machine
Related Products
-
CGF 883 Water Bottling MachineUS$ 5,000 - 15,000MOQ: 1 Set -
Water Bottling MachineUS$ 5,000 - 15,000MOQ: 1 Set
-
Bottled Water Production LineUS$ 10,000 - 50,000MOQ: 1 Set
-
Full Automatic Water Bottling LineUS$ 10,000 - 20,000MOQ: 1 Set
-
Complete Water Filling MachineUS$ 10,000 - 30,000MOQ: 1 Set
Specifications
bottle filling machineISO,SGS,CE
3000BPH
Minimum speed water bottling-Product details
The machine is mainly applied for the filling of beverage. Integrating with washing, filling and sealing, it realizes full automation in the whole process, suitable for polyester bottle and plastic bottle filling of mineral water and purified water. The bottle types applicable for various parts are easily, conveniently and rapidly adjustable. It adopts new micro-negative pressure filling, stable and reliable. Compared with the machines of the same specification, the benefit of this machine is larger. The machine adopts advanced MITSUBISHI programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photoelectrical inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choice equipment of beverage manufacturers.
Main configuration for 3 in 1 filling machine:
1) Material of rinse and rotary plate, machine table is stainless steel 304.
2) Touch screen:DIGITAL
3) PLC:OMRON/ MITSUBISH
4) Photocell switch and proximity switch:AUTONICS (South Korea)
5) Main Pneumatic components:AIRTAC
Technical data:
Equipment type |
CGF8-8-3 |
Pressure of air supplier |
0 |
Washing head |
8 |
Consumption water |
1.1-2.0 M3/hour |
Filling head |
8 |
Washing water pressure |
0.2~0.25MPa |
Capping head |
3 |
Max capacity
|
500ml 3000BPH |
Bottle material |
PET |
Cap material |
HDPE |
Bottle height |
120-360mm |
Bottle diameter |
φ50-φ120mm |

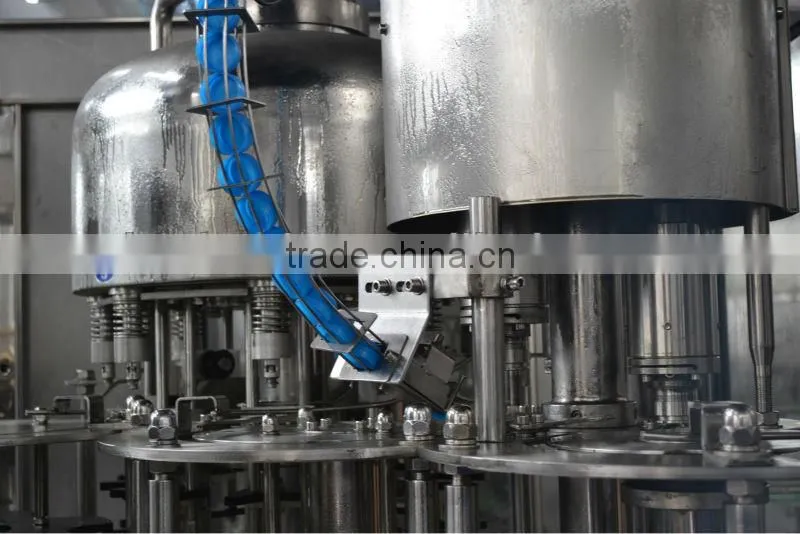

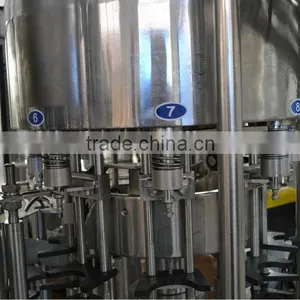

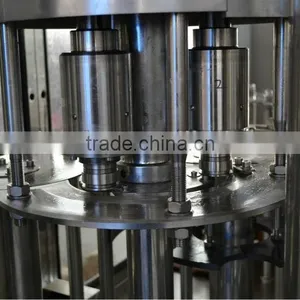

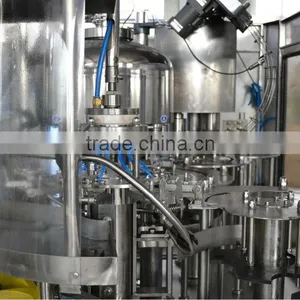

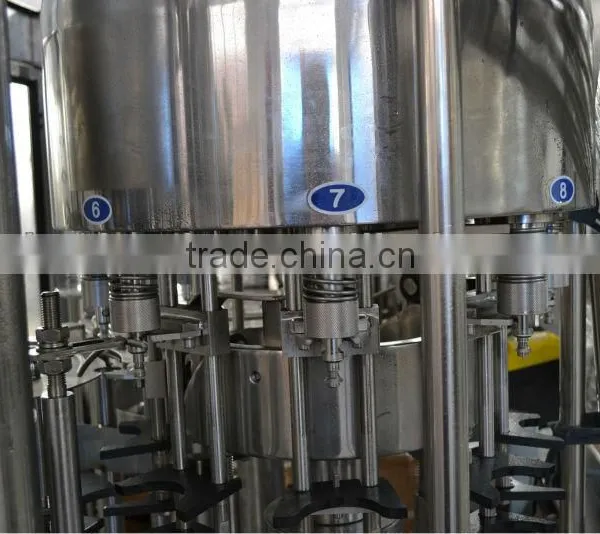

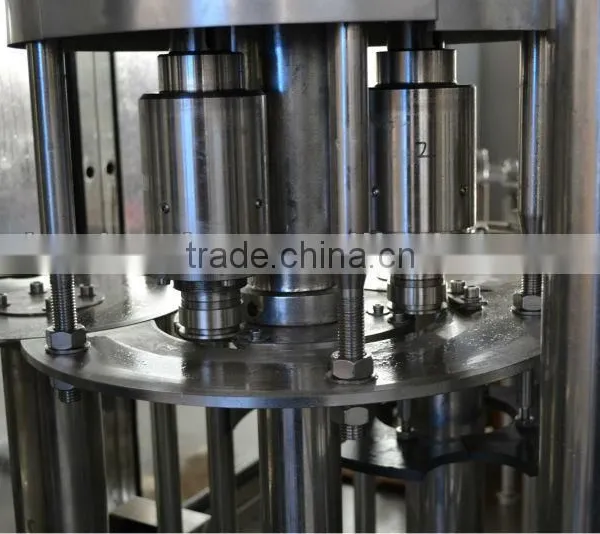

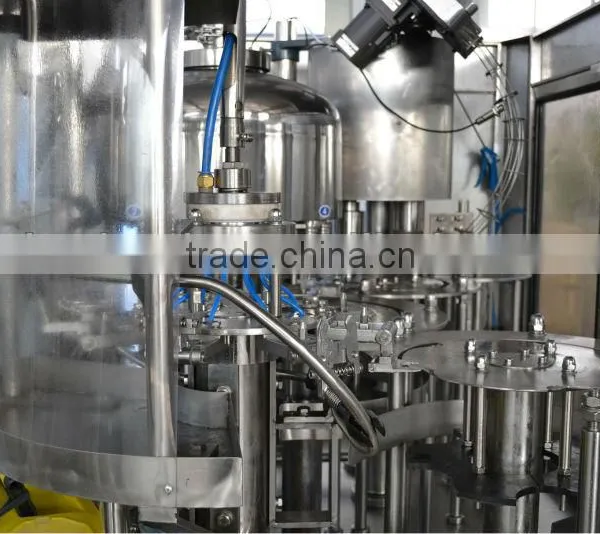

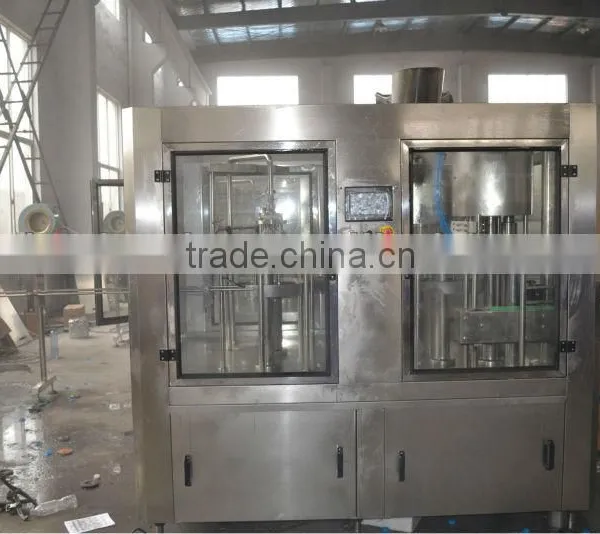

Minimum speed water bottling-Pictures
Minimum speed water bottling-Company details
Minimum speed water bottling-Workshop details
Minimum speed water bottling-Certificate
Minimum speed water bottling-Cooperation brand
Minimum speed water bottling-Shipping
Minimum speed water bottling
1. Warranty : After installing 1 year OR after shipping 15 month for minimum speed water bottling .
2. We can sen engineer to buyer's place to help install & test machines; and we can help train buyer's workers for minimum speed water bottling
1. 24 - hour service hotline :0086-15951172717
2. Competitive price with high quality machine & fast, sincere and efficient service.
