Help CenterSmall Water Bottling Machine
Related Products
Specifications
small water bottling machine1.capacity:1500-2400b/h(500ml)
2.CE, ISO, SGS,
Small water bottling machine-Product description
The machine is mainly used for filling pure or mineral water. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The micro-pressure filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.
Besides using photo-electronic detectors to detect the running of every important sub-process, it employs PLC from MITSUBISHI for automatic control of the whole process and new type air-channel for bottle-loading featuring speediness and damage-free of bottle. The handing-over of bottles between two linking structures is fulfilled by applying clamping-bottle-neck method. For bottle of different shape only a few parts need to be changed and the substituting is simple, which shows the machine is of good adaptability.
High automation and easy operation make it an ideal option for beverage companies.
MAIN TECHNICAL PARAMETERS
- Equipment type: CGF883
- Quantities of service position of the washing machine: 8
- Quantities of service position of the filling machine: 8
- Quantities of service position of the capping machine:3
- Bottle material: polyester bottle
- Bottle height:120-360mm
- Bottleneck diameter:φ50-φ120mm
- Consumption water:0.8-1.0 M3/hour
- Washing water pressure:0.2~0.25MPa
- The maximum throughput: 500ml 3000BPH
-
Power: 3.2KW
Main configuration for 3 in 1 filling machine:
1) Material of rinse and rotary plate, machine table is stainless steel 304.
2) Touch screen:DIGITAL
3) PLC:OMRON/ MITSUBISH
4) Photocell switch and proximity switch:AUTONICS (South Korea)

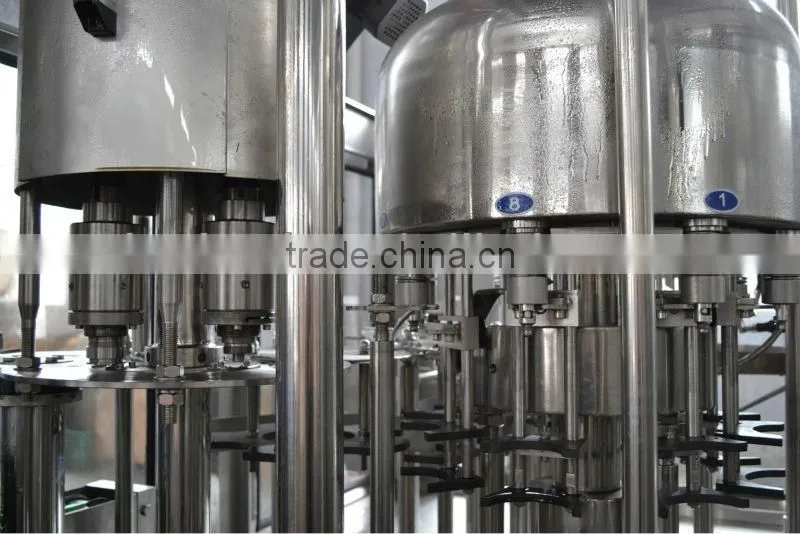

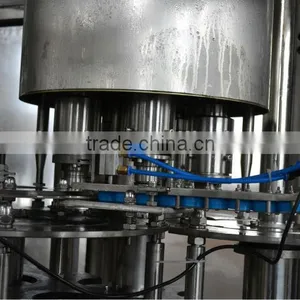

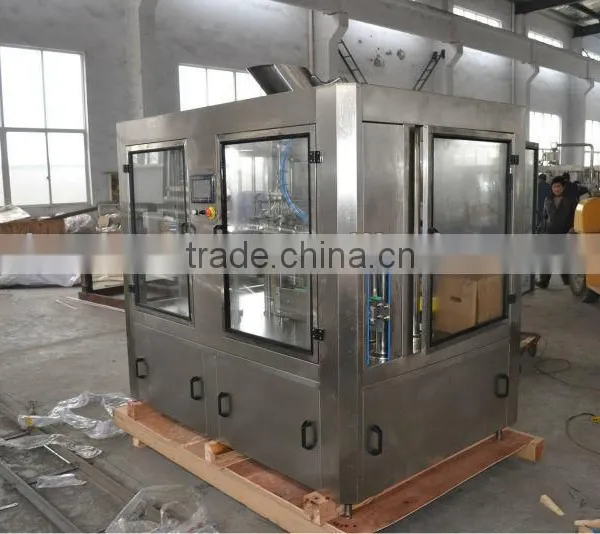

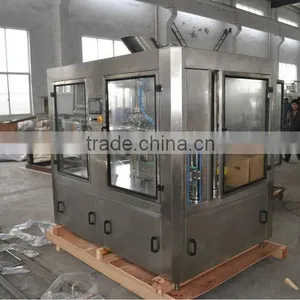

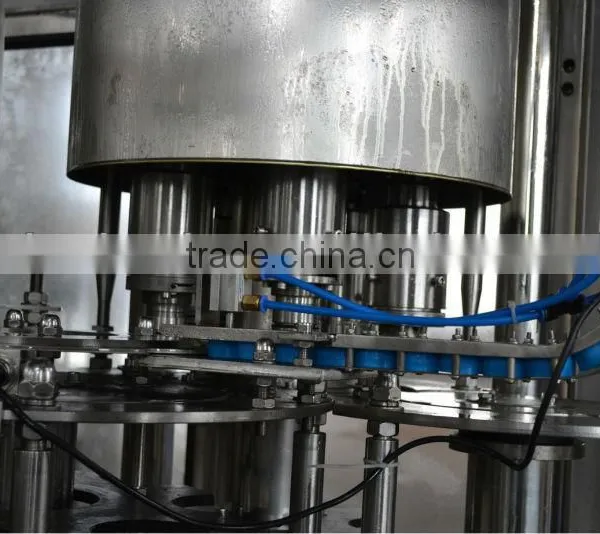

Small water bottling machine Pictures
Small water bottling machine- Company details
Small water bottling machine- Workshop details
Small water bottling machine-Certificate
Small water bottling machine-Cooperation Brand
Small water bottling machine-Shipping & Packing
Small water bottling machine
1. Warranty : After installing 1 year OR after shipping 15 month for small water bottling machine .
2. We can sen engineer to buyer's place to help install & test machines; and we can help train buyer's workers for small water bottling machine .
Small water bottling machine
1. 24 - hour service hotline :0086-15951172717
2. Competitive price with high quality machine & fast, sincere and efficient service.
