Specifications
Hot fill pet bottle juice machine1.Capacity1000-30000bph
2. Filling size250-1500ml
3. CE ISO cert.
Hot fill pet bottle juice machine
1.Capacity:1000-30000bph
2.Bottle size:250-1500ml
3.Accept special design
4.CE ISO approved
Introduction:
1)The machine is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics.
2)The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
3) The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machines of the same specifications. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.
4) It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.
5)The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy and such like materials. The aluminum theft proof cap and plastic cap can be adopted. The machine is an idea-preferred equipment for beverage makers.
Characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Models:
Model: |
RCGF14-12-4 |
RCGF16-16-5 |
RCGF18-18-6 |
RCGF24-24-8 |
RCGF32-32-10 |
RCGF40-40-10 |
Capacity :500ml |
1500bph |
3000bph |
5000bph |
9000bph |
12000bph |
15000bph |
Bottle shape: |
Round or square |
|||||
Bottle size |
(Bottle Diameter):φ50-.φ110mm (Height):150-340mm |
|||||
Cap: |
Plastic screw cap or twist-off cap |
|||||
Filling precision: |
≤±5mm |
|||||
Filling pressure |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
Rinsing pressure |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
Filling volume |
|
|||||
Overall size |
1950x1300 x2050mm |
2150x1400 x2050mm |
2450x1800 x2350mm |
2780x2200 x2350mm |
3600x2650 x2350mm |
3800x2950 x2400mm |
Weight |
2500kg |
2800kg |
3200kg |
3800kg |
4400kg |
5000kg |

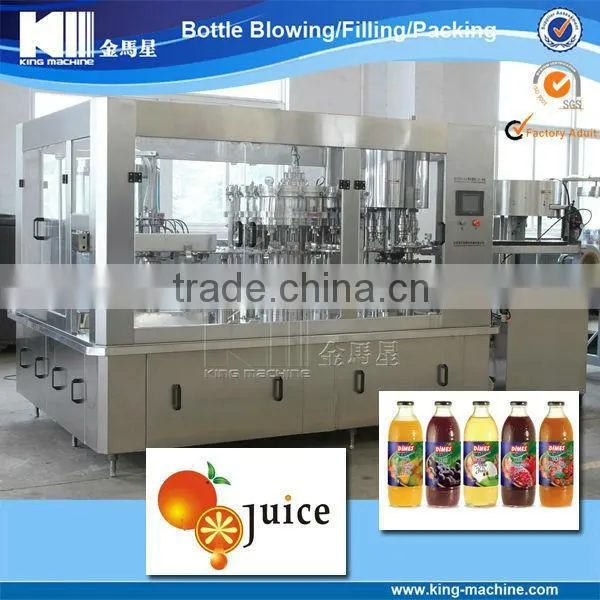

Photos:
