114 Steel Tube Automatic Packing Machine
PRODUCT BRIEF INTRODUCTION
Fully automatic handling process

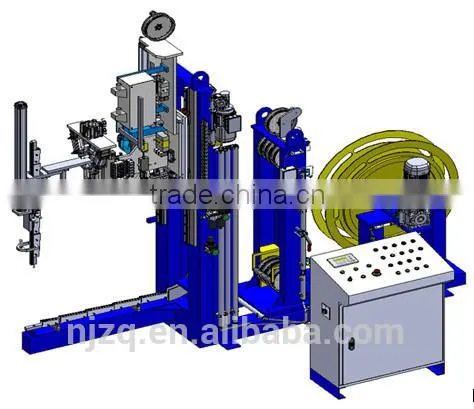

Fully autom Features of Packaging Systems atic strapping system
Bundle draining station
Bundle weighting station
Labeling station
Data process and storage
Capability of handling up to 600x600 mm bundles
BASIC TECHNICAL PARAMETERS
| SN | ITEM | DESCRIPTION |
| 1 | Size range | Φ38mm-Φ114mm |
| 2 | SQ | 30×30-100×100 mm |
| 3 | Rest | 40×20-100×100 mm |
| 4 | Wall thickness | 1.0-5.0mm |
| 5 | Line speed | 90m/min |
| 6 | Pipe packing length range | 4000mm-6000mm |
| 7 | Max weight of single bundle | 4000kg |

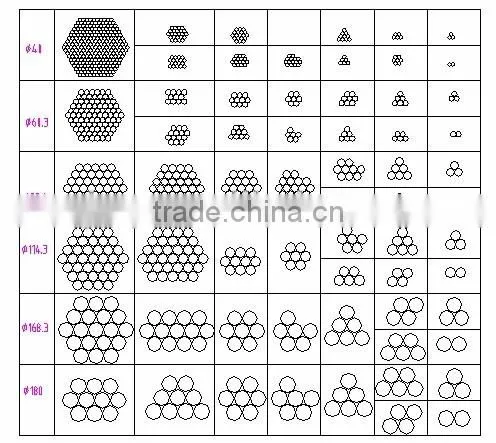

Shape of pipe packing: hexagon or square
Diameter (mm) |
Width of arris (mm) |
Height of the arris (mm) |
Combined index (P) |
76.1 |
532.7 |
475.7 |
37 |
101.6 |
711.2 |
635.1 |
37 |
108.0 |
756.0 |
675.0 |
37 |
114.3 |
571.5 |
510.0 |
19 |
127.0 |
635.0 |
576.0 |
19 |
133.0 |
665.0 |
594.0 |
19 |
139.7 |
698.5 |
624.0 |
19 |
159.0 |
795.0 |
710.0 |
19 |
168.3 |
673.2 |
601.2 |
10 |

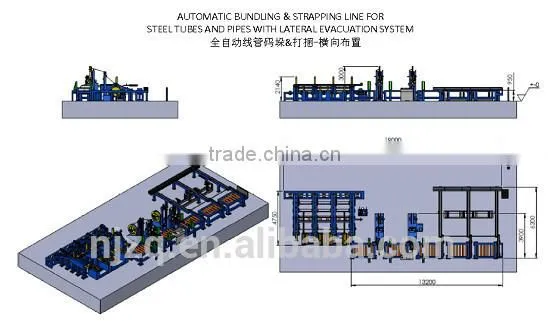

Aridged General View
FEATURES
1. Convenient maintenance and usage; simple and safe operation; High reliability;
2. The pipe bundles will not be loose, scattered or damaged during the transport and storage;
3. With a certain degree of flexibility, can adapt to the square and rectangular tube and round tube packing requirements of product specifications;
4. With a reasonable degree of automation; all motion states shown on the display screen.
5. High production efficiency, low energy consumption, save the cost;
6. Reduce labor intensity; improve working conditions, no pollution of the environment;
7. Development of leeway, when need to upgrade, can add appropriate configuration;
PROCESS

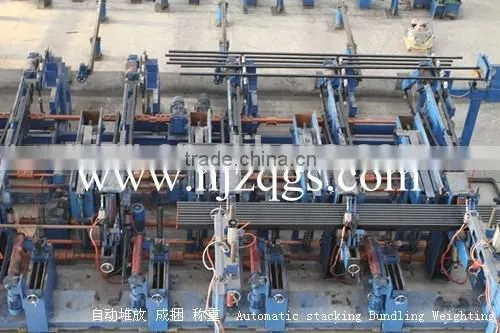

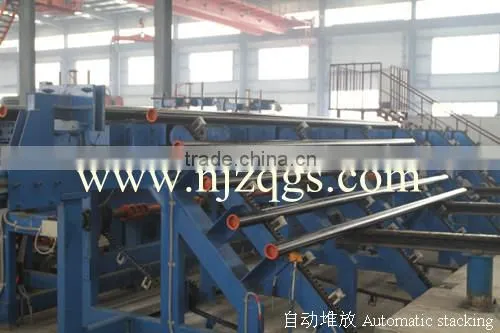

after sawing roller table → stacking former (pulling machine → horizontal moving machine → fork moving pipe → hexagon packing machine → bundle convey device) → packing → transverse weighing → storage
DELIVERY
Four months after the contract comes into force.
PAYMENT TERMS
30% advance payment after signature of contract, 30% progress payment after two months, and 30% before delivery. Remain amount to be paid within 1 year after delivery.
PACKING
electric control part packed in wooden case, remaining nude packed.
AFTER-SALES SERVICE
The supplier will send technical persons to buyer’s site to carry out installation & testing and provide technical support. Relevant expenses shall be borne by the buyer. During testing, the buyer shall provide required plant building & equipment, testing material and manpower support.
1. PAINTING
Equipment surface shall be coated with antirust paint. Paint color can be decided by the buyer or by the supplier on his discretion.
2.FOUNDATION WORK
The supplier will provide the buyer with foundation drawing of the equipment, with construction and supervision of foundation at the buyer’s own responsibility.
The client shall prepare plant building, equipment foundation, and cooling water pool as per equipment data provided by the supplier. Necessary installation apparatus (lifting rig, tools), installation accessories (wires, conduits, water pipes), and helping labors shall be arranged by the client.
The client shall provide water supply, power supply, and air supply to machine interface.
3.WARRANTY
The warranty will cover a period of one year starting from delivery for machines under normal operation conditions (Force Majeure excluded).
QUALIFICATION CERTIFICATE
