Home > Packaging & Printing > Packing Machinery > Filling Machine > Full Automatic 5 Gallon Pure Water Production Line Machine / Filler
Full Automatic 5 Gallon Pure Water Production Line Machine / Filler
US$ 20,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage, Other, Food, Beverage, Soda water / drinks
Packaging Type:
Cartons, Bottles, Barrel
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Full Automatic 5 Gallon Filling Line / Bottling EquipmentUS$ 3,800 - 15,000MOQ: 1 Set -
1 Gallon Filling MachineUS$ 2,000 - 10,000MOQ: 1 Set
-
Full Automatic 5 Gallon Bottling Line / FillerUS$ 3,800 - 18,000MOQ: 1 Set
-
Full Automatic 5 Gallon PC Barrel Filling Machine / PlantNegotiableMOQ: 1 Set
-
Automatic Five Gallon Bottle Filling Machine / ProductionUS$ 3,800 - 15,000MOQ: 1 Set
Condition
New
Application
Food, Beverage, Other, Food, Beverage, Soda water / drinks
Packaging Type
Cartons, Bottles, Barrel
Packaging Material
Plastic, Glass
Automatic Grade
Automatic
Driven Type
Mechanical
Voltage
380v
Power
5.2kw
Place of Origin
Jiangsu, China
Brand Name
kingmachine
Model Number
WD
Dimension(L*W*H)
2980*2200*2250mm
Weight
4500kg
Certification
CE,ISO,SGS
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Carbonated water production line1.Used for carbonated water
2.Capacity:2000~30000bph
3.Washing,filling,capping
4.CE,ISO
carbonated water production line
Full Automatic Carbonated Water Production Line / Filler
Products Introduction:
Carbonated water productioin line:
The sries equipment is used in production gas contaning water of PET bottle or glass bottle ,such as coca cola ,pepsi ,spirit drinks etc
Carbonated water productioin line:
The sries equipment is used in production gas contaning water of PET bottle or glass bottle ,such as coca cola ,pepsi ,spirit drinks etc
It carries out washing bottle ,filling and capping on one machine ,the whole machine designing is reasonable ,the appearance is beautiful and the maintenance isconvenient ,it adopts botle handing technology to make changing bottle more convenient ,faster and easier ,the machine adopts PLC control ,touch screen and no-bottle ,no-cap system The key electric elements are from famous international brand
Characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
flow chart:
PET bottle production line : PET preform(Injection moulding machine) --Bottle blowing machine
Filling line :Water treatment system--Washing,filling,capping machine--Light checker--Sleeve labeling machine--Code sprayer--PE film Packing machine-Pallet stretch wrapper --stock
Technical parameters:
Model |
Washing heads |
Filling heads |
Capping heads |
Capacity(b/h) 500ml |
Motor power (KW) |
Overall dimension (mm) |
CFG14-12-5 |
14 |
12 |
5 |
2000-4000 |
1.5KW |
2100x1400x2500 |
CFG18-18-6 |
18 |
18 |
6 |
5000-7000 |
2.2KW |
2460x1720x2650 |
CFG24-24-8 |
24 |
24 |
8 |
8000-12000 |
3KW |
3100x2100x2650 |
CFG32-32-10 |
32 |
32 |
10 |
12000-15000 |
4KW |
3500x2500x2650 |
CFG40-40-10 |
40 |
40 |
10 |
16000-20000 |
7.5KW |
4600x1800x2650 |
CFG48-48-12 |
48 |
48 |
12 |
20000-24000 |
9.5KW |
5200x4500x3400 |
CFG60-60-15 |
60 |
60 |
15 |
25000-30000 |
12KW |
6500x4500x3400 |
Products List

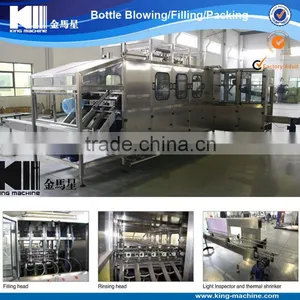

PHOTOS:(Carbonated water production line)
Flow chart :(Carbonated water production line)
