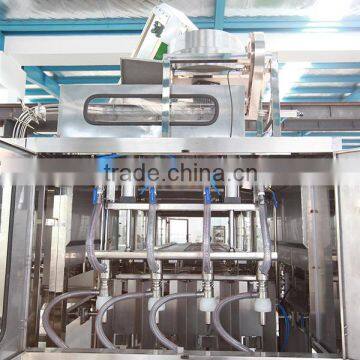

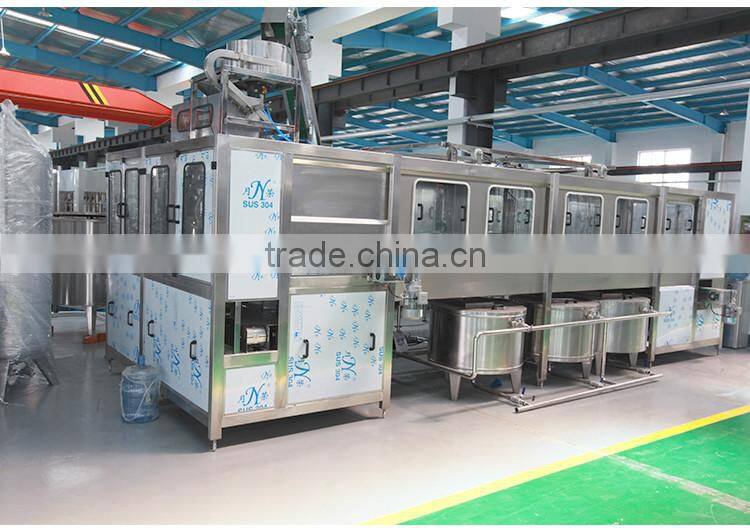

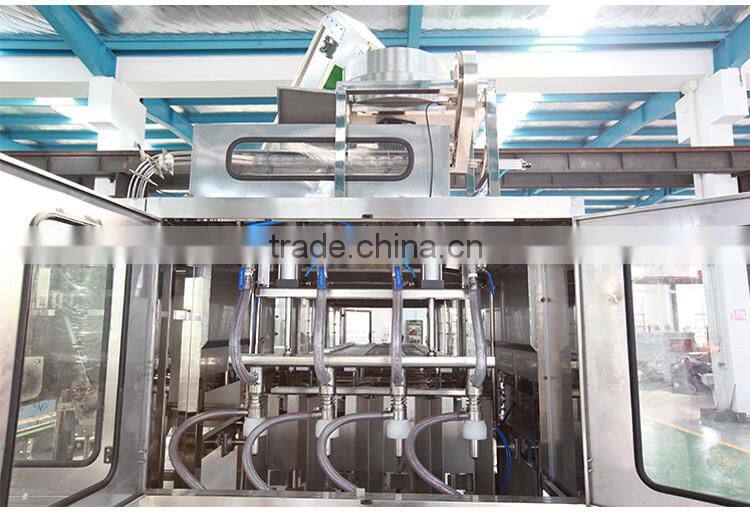

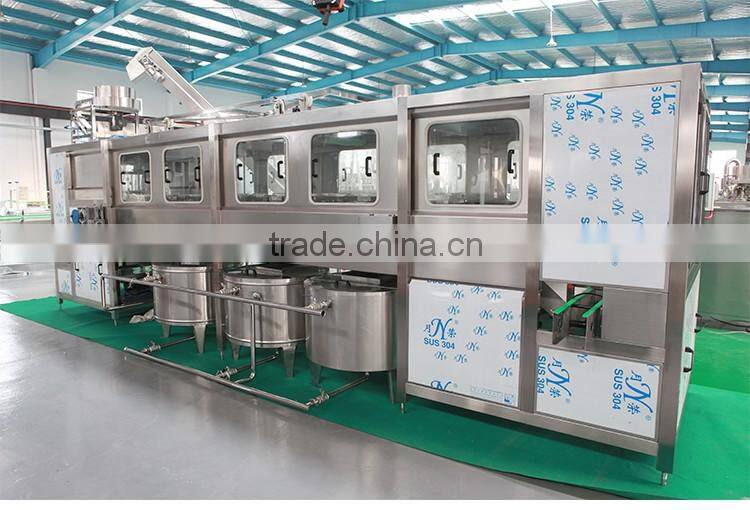

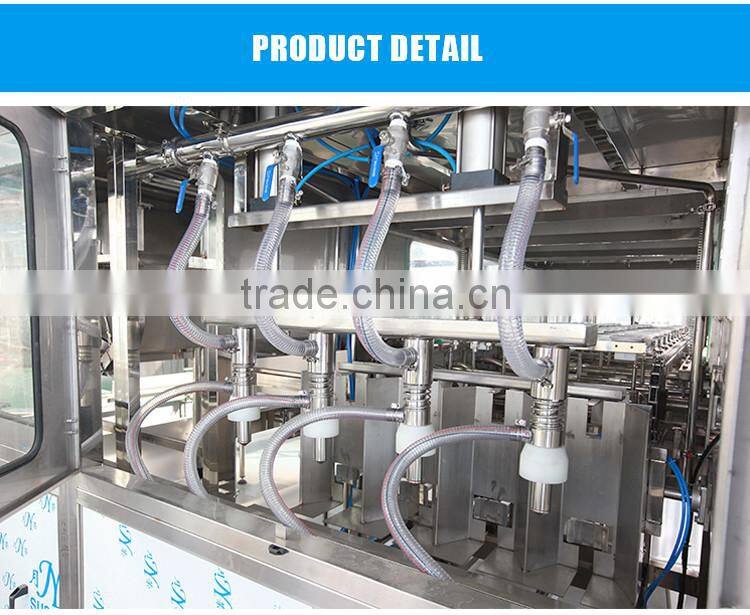

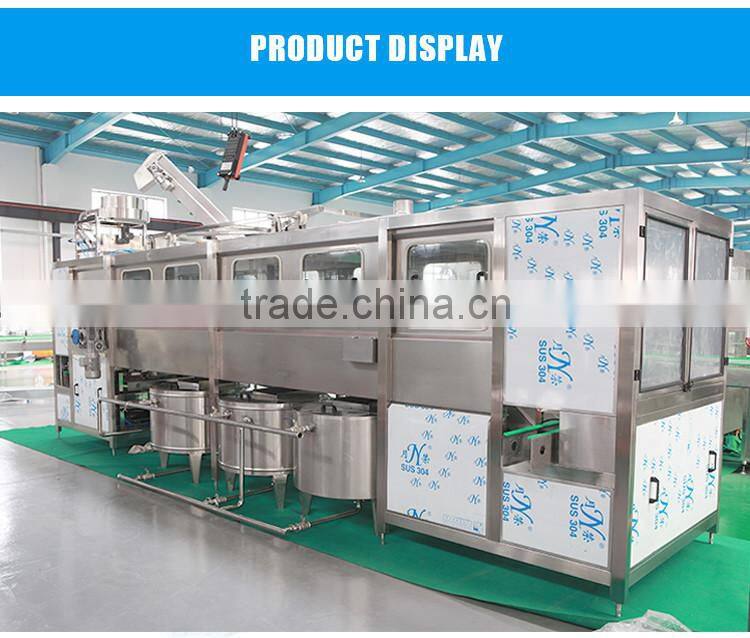

5 Gallon Bucket Water Filling Line
Product Name |
5 Gallon Bucket Water Filling Line |
Item Type |
Water filling machine |
Place of Origin |
Jiangsu, China (Mainland) |
Material |
SUS 304 Food Grade |
Voltage |
380V 50 Hz 3phase or customized |
Power |
Customized |
Dimension |
Customized |
Weight |
According to different model |
Capacity |
100~1200 barrels per hour |
Control |
PLC control |
Filling heads |
1-12pcs |
Suitable barrel |
3 -5 gallon/10-25L |
Processing type |
Washing+filling+capping |
Installation |
Available |
After-sales Service Provided |
Engineers available to service machinery overseas |
Certification |
CE SGS ISO |
Warranty |
1 year |
|
Features |
1.This filling line specially produces 3&5 gallons barreled drinking water. |
2.This series barreled filling production line integrates bottle washer, filler and sealer into one unit. | |
3.In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically. | |
4.This filling line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy. | |
5.This line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging. | |
6.It has features of complete functional, novel design, and high degree of automation. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together. |

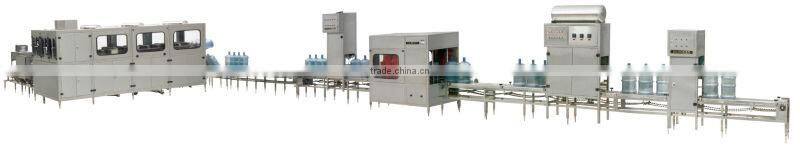

Flow chart :
Barreled Production Line consists of washing machine, filling machine and capping machine into one body especially for the production of 5 gallons drinking water.It is an idea line to produce mineral water, distilled water and purified water.The whole line is made of superior stainless steel.
It has features of complete functional, novel design, and high degree of automation. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.
Zhangjiagang King Machine Co., Ltd,is a direct manufacturer and exporter specializing in water treatment plants, beverage filling machine, packing machine, bottle blowing machine, injection moulding machine and spare parts of filling line.
Our factory was established in the year of 1995, with the long history of accumulated experience in filling machine industry in south Jiangsu. There are many development engineer of filling machine in our company. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry.
King Machine cooperated with many customers in recent years, we win the trust of customers from our high-quality products. And we are looking forward to the future cooperation with you if our products can impress you deeply.
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
