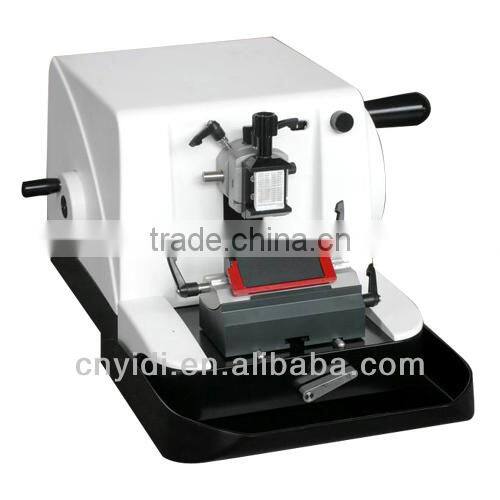

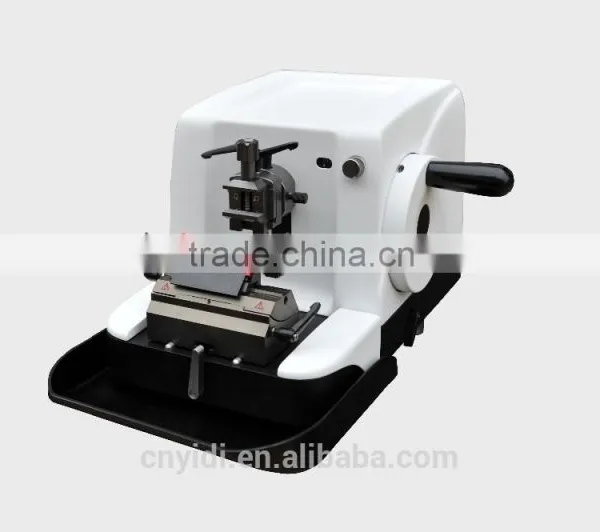

Help CenterRotary Microtome YD-315
Related Products
YD-315 microtome is an rotary microtome , which is samily as the LEICA 2126 .
1.It have clipper built case , the user can put blade , wax block ,or other consumable one the top of case . it is easy .
2 it donot need to lubricate and maintain the microtome frequently .
3.The handwheel in the right can be locked in any position , and the handle can be locked in highest position , it is double safe for changing blade or tissue block .
4 The specimen Orienting system: axes X and Y 8°, axis 180°.
5. It adopt the special blade holder , it is more safe and convenient to use the disposable blade directly . it also can to longer the user life of disposable blade
Technical Data
1) Slice thickness range: 0- 60um
2)Setting values : from 0-2 um in 0.5 um increments
Form 2-10um in 1 um-increments
Form 10-20 um in 2 um-increments
Form 20-60um in 5 um-increments
3) Horizontal specimen stroke :28 mm
4) Vertical specimen stroke : 60mm
6) Slip precision: ± 5%
7) Maximal slice section: 50 × 45mm
