Help CenterGN50 Omni Aluminum Scaffolding
Related Products
-
Aluminium Foldable Mobile ScaffoldingNegotiableMOQ: 1 Case -
European Aluminum Scaffolding SystemUS$ 5,000 - 50,000MOQ: 1 Set
-
Aluminum Ringlock Suspended Scaffolding Factory in GuangzhouUS$ 5,000 - 50,000MOQ: 1 Set
-
France Aluminum Scaffolding for SaleUS$ 5,000 - 50,000MOQ: 1 Set
-
Light Weight Scaffolding Prop for Sale in GuangzhouUS$ 5,000 - 50,000MOQ: 1 Set
Specifications
1.Scaffolding comply with GS,ISO9001:2008;2.Tailor made orders ;
3.Load:200kg m2;
4.No welding,Low carbon;
5.Light weight
Guangzhou Leader Equipment Ltd. will attend the BAUMA 2014 exhibition in
ShangHai on November 25-28th,2014.
Welcome to visit our booth H3.W3.518.

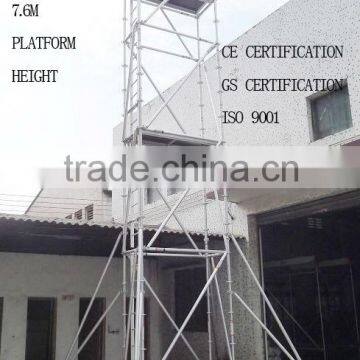

Patented design GUANGZHOU LEADER GN50 Aluminium Mobile Scaffold Tower with vertical ladders
LEADER GN50 Mobile Aluminium Scaffold Towers is compliant with EN1004 : 2004 and has been awarded the GS Certification by TUV Rheinland.
MULTI-APPLICATION FOR ANY COMPLICATED CONSTRUCTION GEOMETRY
Leader GN50 Tubular Aluminium Scaffolding System with its Multi-Directional design can be easily adapted to any complicated construction geometry. With its flexibility, design combinations could be infinite to suit special maintenance in different terrain working environment, such as suspending scaffolding, cantilever rack, bridging frame, curved frame and stage rack etc.
Efficient Erection
Leader GN50 Tubular Aluminium Scaffolding System eliminates time consuming layout procedures, speedy assemble and dismantle is ensured as the connector insert hole patterns are in right angles and precisely aligned. Connections between horizontal, diagonal braces and the vertical standards are designed for speedy erection:

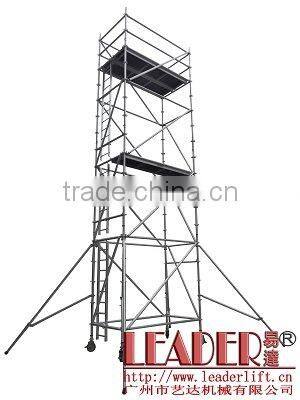

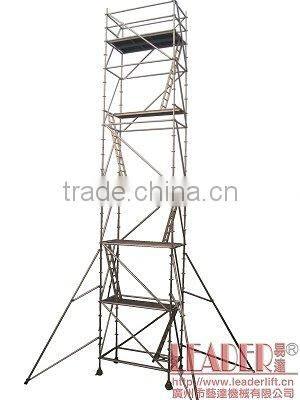

Single width tower
a. Suitable for working in limited Space b. Optional to equipped with vertical or incline and clip on ladders.
DIMENSIONS
Width: 0.85m
Length: 1.8m / 2.0m / 2.5m / 3.0m
Double width tower
a. Provide more stable, wider and comfortable working space for the users.
b. Optional to equipped with vertical or incline and clip on ladders.
DIMENSIONS
Width: 1.45m
Length: 1.8m / 2.0m / 2.5m / 3.0m

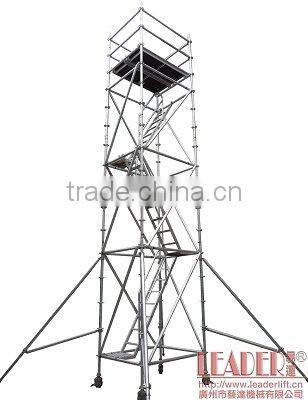

Stairway width tower
Equipped with stairway ladder and handrail, safe for climbing.
DIMENSIONS
Width: 1.45m
Length: 1.8m / 2.0m / 2.5m / 3.0m
Basic components,specification& accessories
Horizontal braces
Diagonal braces
Lever brace
Tube diameter: 50.8mm×1.8mm
Φ48.3×3.2 / Φ48.3×4.0 / Φ50.8×3.2 are available on request to support heavier loading.
Ladders
Incline ladders
Clip On ladders
Vertical ladders
Stairway ladders
Plain/trapdoor platform(Optional all aluminium platform)
272kg Loading capacity each platform
Accessories
Toeboard (Hinge Type)
Adjustable leg
Castor
Base plate
U clip
Spring clip
Stabilizers
