Specifications
Equipment for badminton shuttlecockMains Voltage:AC220V 50Hz
Power:580W
Air Pressure:4-5Kgf/cm2
Output:40pcs/hour

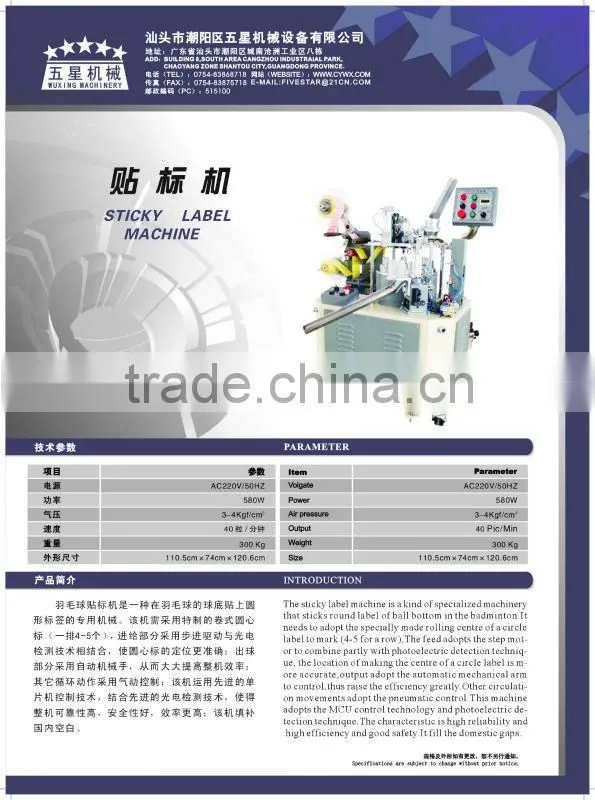

Product Name : Sticky label machine
Model : YMQ-TB
The sticky label machine is a kind of specialized machinery that sticks round label of ball bottom in the badminton.It needs to adopt the specially made rolling centre of a circle label to mark (4-5 for a row),The feed adopts the step motor to combine partly with photoelectric detection technique, the location of making the centre of a circle label is more accurate,output adopt the automatic mechanical arm to control,thus raise the efficiency greatly.Other circulation movements adopt the pneumatic control.This machine adopts the MCU control technology and photoelectric detection technique.The characteristic is high reliability and high efficiency and good safety.It fill the domestic gaps.
PARMETER
Item |
Parmeter |
Volgate |
AC220V/50HZ |
Power |
580W |
Air pressure |
4-5Kgf/cm² |
Output |
40 Pic/Min |
Weight |
300KG |
Size |
110.5cm×74cm× 120.6cm |

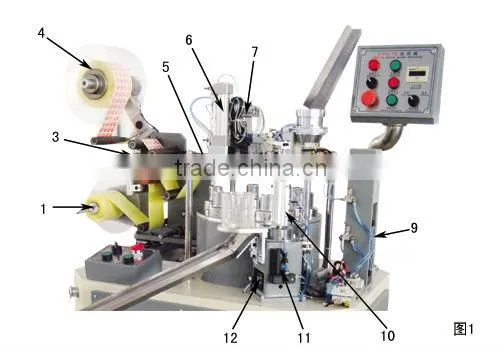

1 Names of Parts
1.material-receipt roller
2.leading roller
3.cylinder for pressing roller
4.feeding roller
5.vacuum slot
6.cylinder for pressing label
7.cylinder for feeding label
8.clip cylinder
9.cylinder of ball inlet
10.cylinder of ball outlet
11.vacuum generator
12.rotating cylinder of ball outlet
