Equipment of Badminton
Product Name : Auto separated machine -03
Item # : 232032-875
Model : YMQ-MQ-03
The automatic separated machine 03 is an upgraded version based on 02. the kinds of separation has been added to 25. The machine enjoys whole improvement both in inspecting precision and speed,reaching the intermational advanced level,also filled up the domestic demand.The machine adopted frequency conversion to adjust the speed,combining the way of photoelectricity inspecting.The whole operation is carried on under the control of MCU.The arch and the curve of the feather can be separated and the inspecting data will display at the same time.Excellent structure,easy adjustment,stabile operation,It's an ideal feather selecting equipment for top and medium grade badmition manufacturers.

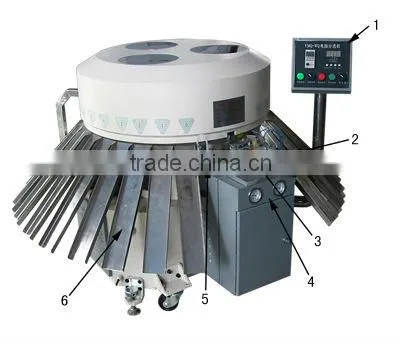

1. Console
2.Cylinder of feeding feather
3.Clip base
4.Pressure gauge
5.Detecting Head
6.Material trough
Dimension and function of the unit subject to change without notice!
PARAMETER
Item |
Parameter |
Volgate |
AC220/50HZ |
Power |
430W |
Air pressure |
Collet 3 Kgf/cm2
|
Give 2 Kgf/cm2
| |
kind |
25 |
Output |
25 85 Pcs/Min |
Temperature |
5-40 |
Weight |
400Kg |
Size |
130cm×130cm×100cm |
