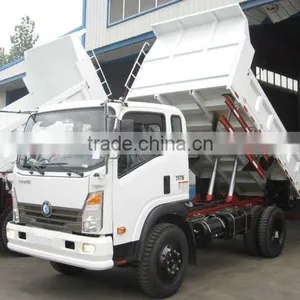

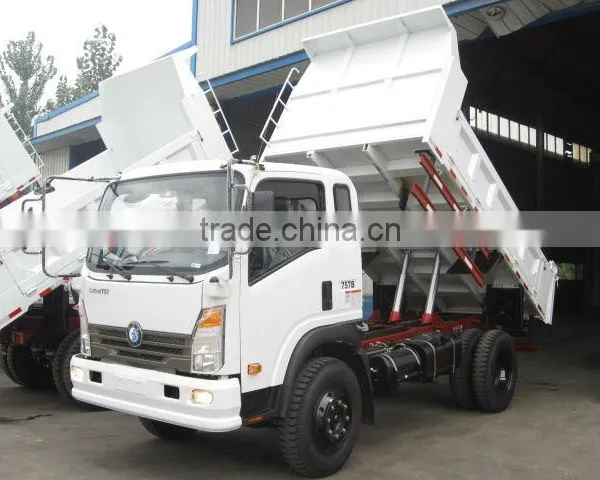

CDW LIGHT DUMP TRUCK

Name: CDW LIGHT DUMP TRUCK
Brand: SINOTRUK
SKU: 116649347
Availability: InStock

US$ 10,000 - 20,000 MOQ: 1 Set

Key Specifications

Drive Wheel:

4x2

Capacity (Load):

1 - 10t

Horsepower:

150 - 250hp

Jinan Hainuoer Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

china main port

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel 4x2

Capacity (Load) 1 - 10t

Horsepower 150 - 250hp

Condition New

Transmission Type Manual

Emission Standard Euro 3

Fuel Type Diesel

Engine Capacity 4 - 6L

Gross Vehicle Weight 3000

Place of Origin Sichuan, China

Brand Name SINOTRUK

Dimensions (L x W x H) (mm) 6395 *2300*2630mm

Specifications

SINOTRUK CDW WANGPAI DUMP TRUCK
WANGPAI NEW BRAND
EXCELLENT SERVICE
LIGHT TRUCK SERIES
GOOD QUALITY WITH GOOD PRICE

CDW777 SERIES
Model	CDW3110A2C3
Cab and Panel	2080 cab,Double torsion bar
Engine	Type: YC4E160-33
	Type:4 cylinder, direct injection, water cooling,4 stroke,Euro III
	Max horse power: 160hp
	Rated revolution: 2600 rpm
	Max. Torque: 520 N.m at 1300~1700 r/min
	Displacement: 4.257 L
	Cylinder bore×route: 110×112 mm
Gearbox	Type: HW90710,Manual with synchro, 10 forward and 2 reverse
Gearbox	Ratio: 11.987,8.973,6.748,4.644,3.805,2.581,1.932,1.453,1,0.819, 9.989(R1),2.151(R2)
Axle	Front type: 145D1A,driven front axle
	Rear axle type: 153N1,Pipa Style,casting axle,with differential
	Rear axle ratio: 6.5
Frame	Frame: 280/10,ladder shaped frame,280mm height,800mmwideth,10mm thickness
	Front overhang: 1061-Ⅱ++,11pcs,telescopic shock absorber
	Rear overhang: 153+,11pcs main spring and 8pcs assistance spring
	Fuel tank:Iron steel,Volume 150L
Steering	Type:Steering wheel
	Steering diameter:450mm
	Max. cycles:5.5
Brake system	Motor brake:Double Circuit air brake
	Parking brake: Brake
	Auxiliary brake: Exhausted Brake
Tyre	Tyre:9.00-20×7
Electronic	Voltage: 24V,cathode ground connection
Dimension	Wheelbase: 3650 mm
	Wheeltrack: 1750 mm/ 1725mm
	Overhang: 1260 mm / 1490 mm
	Approaching angle/Departure angle: 24 / 23
	Inner dimension: 4140mm×2200mm×800mm
	Total dimention: 6395 ×2300×2630mm
Lifting	Single cylinder 180mm×660mm
Weight	Rated mass:4800Kg
	Load capacity:7680 kg
	Total mass:11495 kg
	Front axle load capacity:4590 kg
	Rear axle load capacity:6905 kg
