Specifications
SINOTRUK 8m3 concrete mixer truck:1. VOLVO technology.
2. German ZF steering

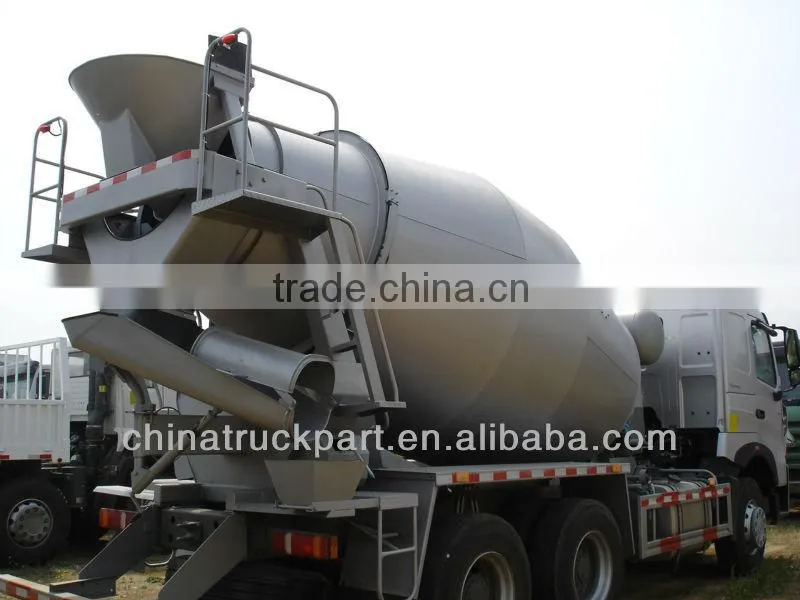

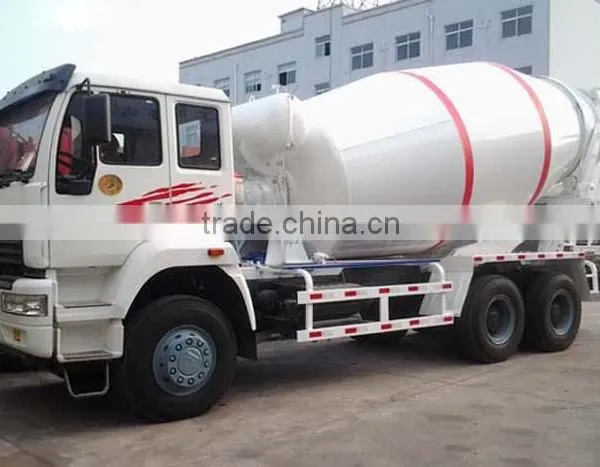

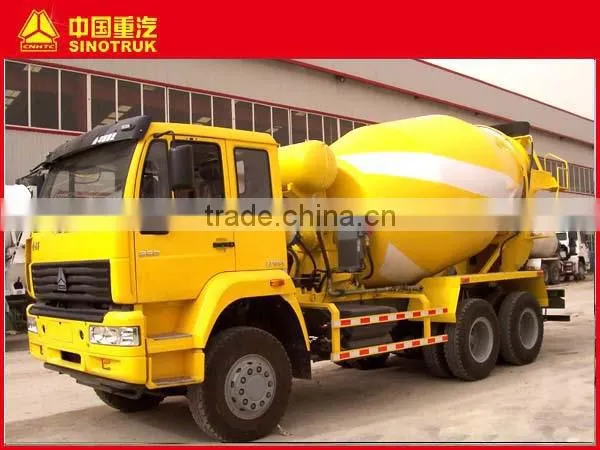

SINOTRUK 8m3 concrete mixer truck
Main Technological Parameters | ||
Cab |
Extended cab, double berth, up/down and front/back adjustable steering wheel, VDO instrument and control module, double locking safety belt, exterior sun visor. |
|
|
Engine |
Model |
WD615.93E |
Rated power KW/rpm |
300HP |
|
Maximum torque Nm/ rpm |
1350/1100-1600 |
|
Displacement L |
9.726 |
|
Type |
Six cylinders inline, water cooling, 4-stroke, supercharging intermediate cooler, high pressure and common rail |
|
Clutch |
430 diaphragm spring clutch, hydraulic control air assisted. |
|
|
Transmission |
SINOTRUCK HW series 10 gears transmission, transmission with main and auxiliary transmission structure, main transmission with double countershaft, auxiliary transmission with planetary reduction. |
|
Front axle |
HF9, rated load of 9t, drum-type; heavy; load truck with HF9 drum-type, rated load of 9t. |
|
Drive axle |
ST13 central reduction+ hub reduction |
|
Suspension |
Front and rear leaf spring suspension, front suspension with shock absorber, transverse stabilizer, and rear suspension is disconnected type with transverse stabilizer. |
|
Steering system |
ZF8098 steering gear, ZF steering oil pump, system pressure 18MPa |
|
|
Braking system
|
Service brake: dual-circuit air pressure brake; parking brake; spring storage energy without air; auxiliary brake: engine exhaust braking; standard engine EVB, with ABS and optional auto clearance adjusting arm. |
|
Tire |
12.00R20 |
|
Tank volume L |
400 |
|
Gross mass kg |
25000 |
|
Complete vehicle external dimensions ( length*width*height) mm |
10970*2496*3980 |
|
Mixing volume m³ |
8 |
|
Mixing tube geometric volume m³ |
20 |
|
Mixing tube speed r/mm |
6-8 |
|
Feeding rate m³/min |
3 |
|
Discharging rate m³/min |
2 |
|
Rest ratio % |
<0.7 |
|
Filling ratio % |
58.5 |
|
Water supply mode |
air pressure |
|
