2016 sales Hot!Paving terrazzo cement wall tiles plant concrete tile making machine price

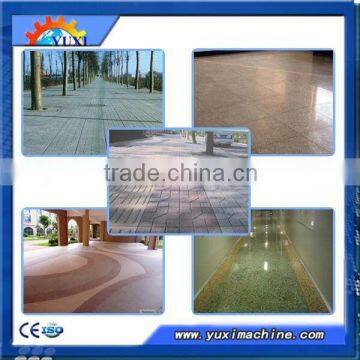

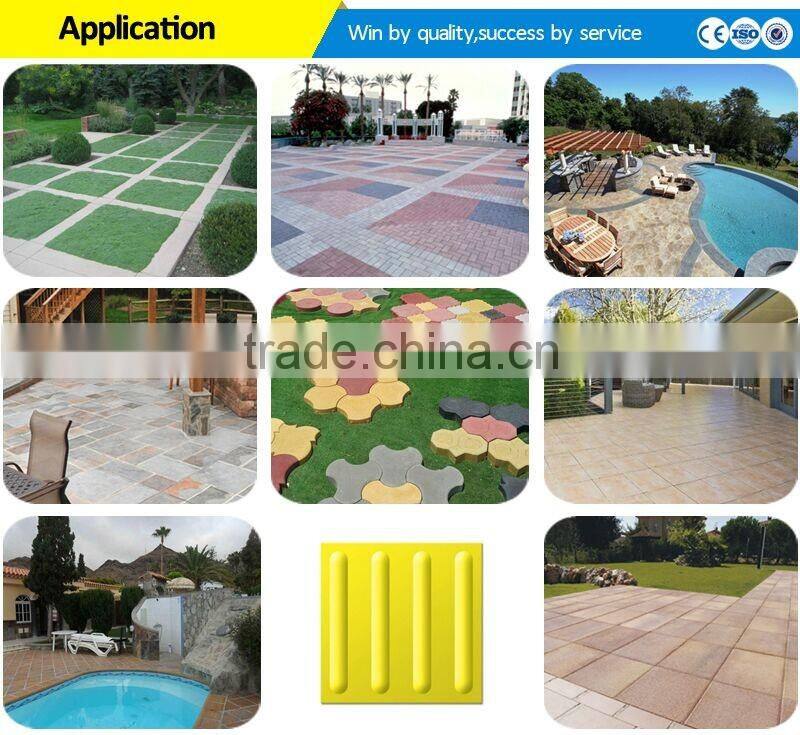

Have you noticed where you can see Terrazzo Tiles?
cement tile paving stone making machine price Are Everywhere In Your Life→
Function of Terrazzo Tile Making Machine:
• Swimming Pool, Courtyard, Civil Architecture
• Square,Sidewalk,
• Hopital,Kitchen,Washroom,School, Public Institution, Office Building
High light Terrazzo tiles, After the table light highlight process, the rate of high brightness above 70%, dustproof skid resistance can reach marble quality;High light Terrazzo tiles,the hardness of tiles can achieve 6-8 grades High light Terrazzo tiles,can joint the pattern random,colors are optional.NON-CRACKING, Don't worry over loading truck across and heavy thing draging,No shrinkage strain.Dust-free, high cleanliness, cleanliness can meet making pharmacy,chips demand.Non-ignitable,without fire, ageing resistant, Fouling resistance, corrosion resistance, free from extraneous odour.Color Bright and clean, Connect tightly,the overall are aesthetics.Meeting International requirement GB50209-2002, accord with JC507-1993 producing terrazzo tiles standard.
So,concrete tile making machine price are Widely Application.
♥. 1. Technology: international initiative, the leading domestic, guide consumption, contribute to society.
♥. 2. Operation:high automation, simple operation, easy maintenance.
♥. 3. Production: low cost, less energy consumption, high efficiency; Low carbon, green and environmental protection.
♥. 4. Personnel:personal demand, labor intensity is small. product specification: 1500 * 1000, 1000 * 1000, 1000 * 800, 600*600, 600 * 400300 * 500, 400, 300, 250 * 500, 300 * 600 (mm).Thickness is adjustable.
♥. 5. Precision: dimension precision, density, high strength, low failure rate.
♥. 6. Product characteristics: flexural performance is good, high wear resistance strength, prevent slippery effect is good, durable, good taste.

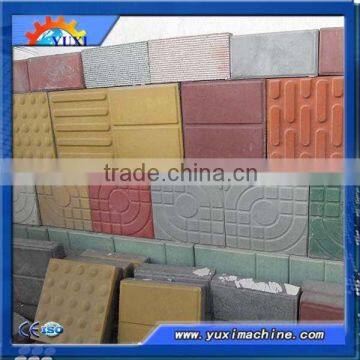

♥. 7.It can make kinds of color tiles, such as roof tiles, ridge tiles, edge tiles, drainage tile and gutter tiles and so on. Besides, through changing the mould, it also can make various of top grade floor tiles, such as terrazzo floor tiles, polishing shot peening floor tiles and washing floor tiles.
Characteristic of cement tile paving stone making machine price
√First rate technology
PLC control system in Terrazzo Tile Making Machine adopt Japanese Mitsubishi or Taiwan Taida PLC system,integrate mechanical and electrical,hydraulic pressure and pneumatic,make the complete terrazzo tile making machine fully automatically.At the same time,the machines don't have to professional staff,just give workers simple training,they handle floor tile machine easily.
√High performance
Mix the materials together with proper ratio;and then the mixer mix them into paste and make sure it process good liquidity,the finished terrazzo tile making machine has high density and strength.
√Low cost,high pay back
Terrazzo floor tile making machine need low labor cost,only one or two ordionary worker will be enough.high pay back,the concrete floor tiles are in large demand.
√Automatic numerical control terrazzo floor tile machine
Raw material are cement,stone powder,crushed stone, High Pressure Forming and natural conservation,polishing process can rival with natural marble.
You May Want To Know→ → →
Face To Face,Answer to Question, Remove your doubts...
=Q:Raw material of Terrazzo Tile Making Machine need?
A:Cement,Concrete,Sand,Stone powder,Crushed stone etc.
=Q:What's the output of Terrazzo Tile Making Machine Every day?
A:5-7pcs every minute,Around 3000PCS every day.
=Q:What's the size of terrazzo tiles I can make?
A:1500*1000,1000*1000,800*800,600*600,500*500,400*400,300*300,250*250,
300*600mm and so on.all of the thickness of terrazzo tiles can be adjustable.
=Q:How many workers need in whole production line?
A: 2-3 workers will be ok in the terrazzo tile making machine production line.
=Q:Do you have video about terrazzo tile making machine?
→One is polishing machine to polish the tile smoothly and brightly:
More About concrete tile making machine price,Sally will Introduce For You Next Step→
Note:

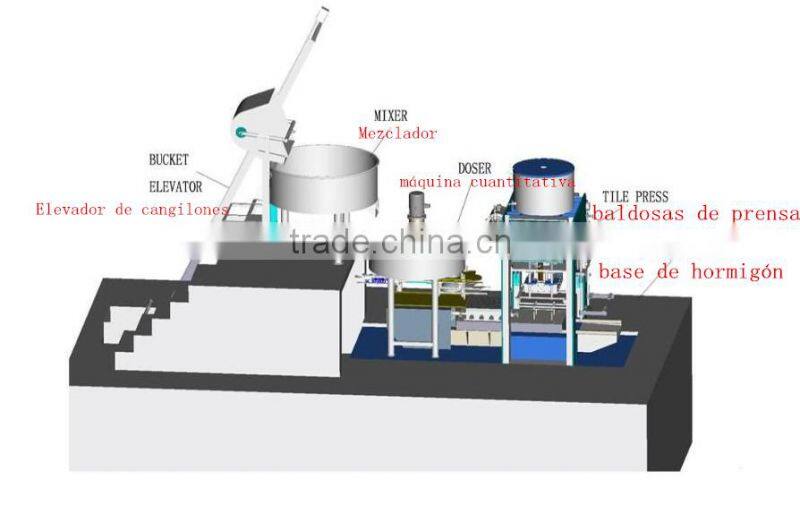

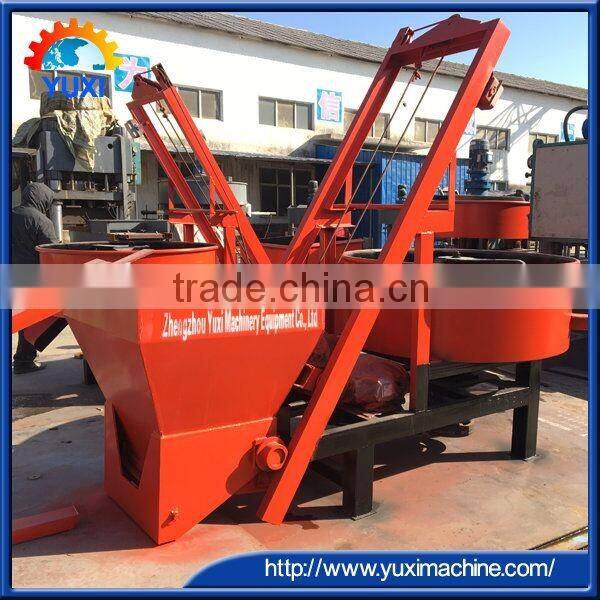

1•Bucket elevator:Cement, crushed stone, stone powder and sand(Note:Sand Is Used Only In UN-Polished Tiles) Are
poured into bucket elevator at position one.
•Mixer:Cement, crushed stone, stone powder and sand (Note: Sand Is Used Only In UN-Polished Tiles)
are transported by bucket elevator into mixer. After watering, the raw materials will be mixed evenly and poured into doser.
2•Doser: is one kind of mixer, but with one more quantifying cup and one pneumatic cylinder.Doser will work by manual way
or automatically. It is controlled by the PLC computer program.

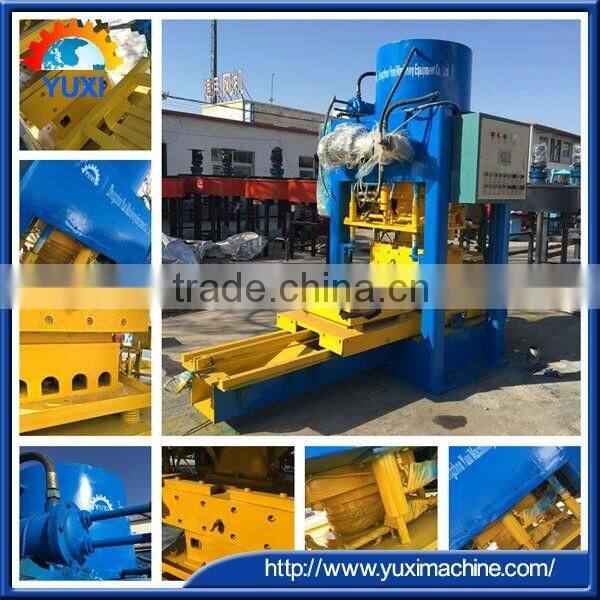

3•Terrazzo Tile Making Machine:The frame of floor tile making machine is 4-column type or dragon gate type. Its main parts:
piston type cylinder, cylinders for tile press lifting up and down,cylinders for mould frame lifting up and down, work stable and
swing cylinder, etc. It can produce tiles automatically together with hydraulic system (including various valves), pneumatic system
and PLC electrical system.
| Specification | 3040 terrazzo tile machine | 4050 terrazzo tile machine | 5060 terrazzo tile machine |
| Moulding Pressure | 150T | 250T | 350T |
| Moulding speed | 4-6pcs/min | 3-5pcs/min | 3-5pcs/min |
| Power | 9.25KW | 9.5KW | 11.75KW |
| Weight | 6.2T | 6.9T | 7.8T |
| Tile specification | 300*300 400*400 | 400*400 500*500 | 500*500 600*600 |
•4.Terrazzo Floor Tile Polishing Machine:Six workstation,No.1-5 abrasive disks,can complete rude,middle, thin grinding and polishing.
| Specification | 3040 terrazzo tile machine | 4050 terrazzo tile machine | 5060 terrazzo tile machine |
| Moulding Pressure | 150T | 250T | 350T |
| Moulding speed | 4-6pcs/min | 3-5pcs/min | 3-5pcs/min |
| Power | 9.25KW | 9.5KW | 11.75KW |
| Weight | 6.2T | 6.9T | 7.8T |
| Tile specification | 300*300 400*400 | 400*400 500*500 | 500*500 600*600 |
How To Make concrete tile making machine price?→ → → →
floor tile making machine/making tile machine whole production line show you:

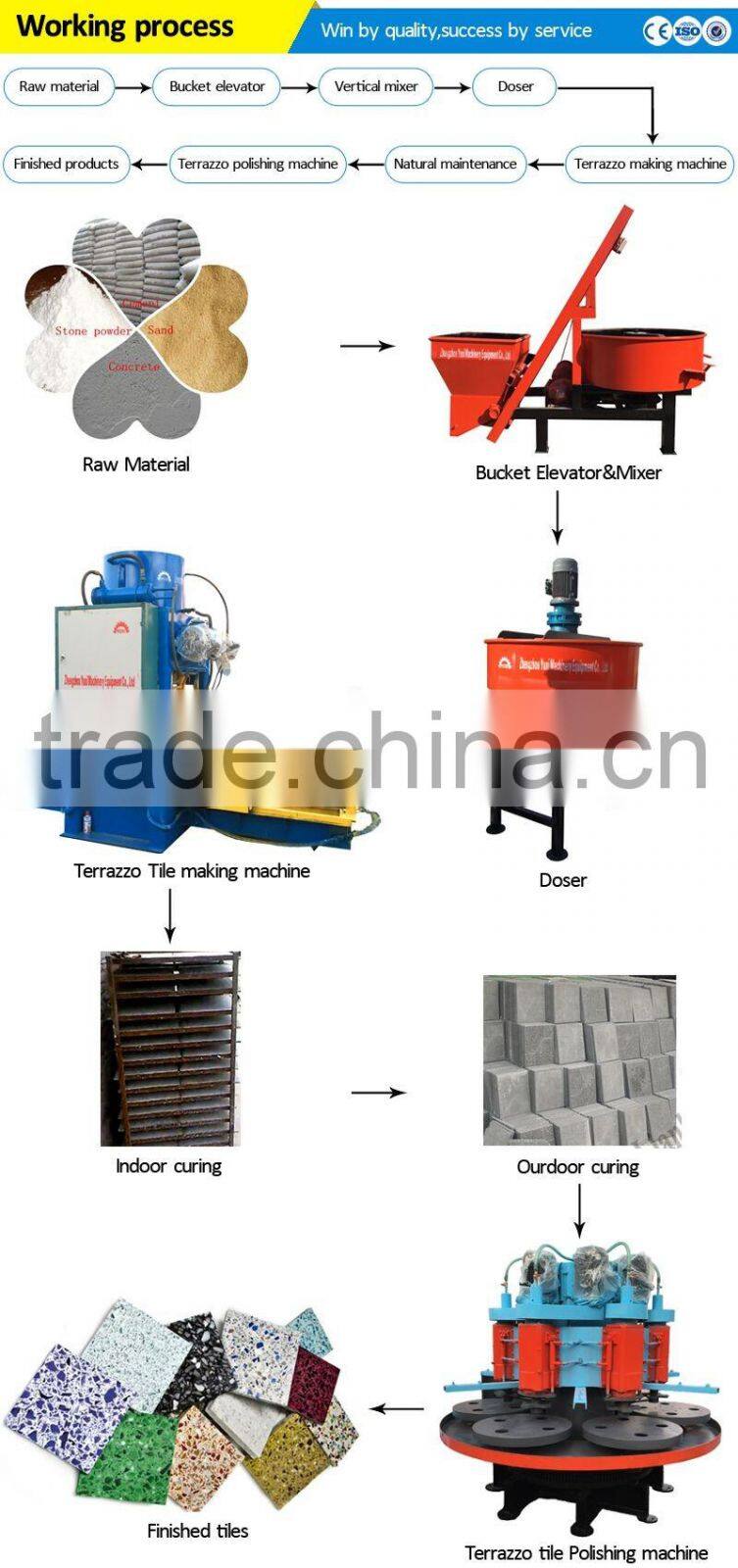

Work flow: Elevating--- Mixing --- Fixed-quantity filling --- Pressure forming --- Mould unloading --- Forming tiles ---Onto the tiles shelf --- --- Stacking --- Curing (24 hours)--- Polishing --- Finished products.
1. At frist,the raw materials are put into the bucket elevator, then deliver to the rolling mixer,at this time,you must add some water into it.
2. After mixing, the mixture come into the dosing feeder,then,measurable mixture that one tile need will put down on the mould below through a small hole.
3. Then,a tile can be formed by high pressure,the pressure is about 125 tons. So the produced tile is very stable and dense.I think the constructor can boldly walk on the paved roof.
4. By the way,the tile need to dry out for about 10 days.Then you can paint.
Mix water, raw material such as cement, stone powder, marble particle, and sand up in proportion and feed the mixture evenly to the main machine of the cement terrazzo tile making machine usage,and then under the high pressure of a hydraulic cylinder and a mould, semifinished concrete terrazzo tiles which become concrete terrazzo tiles after maintenance and painting are produced. If different moulds such as roof tile moulds are applied, roof tiles can be obtained.

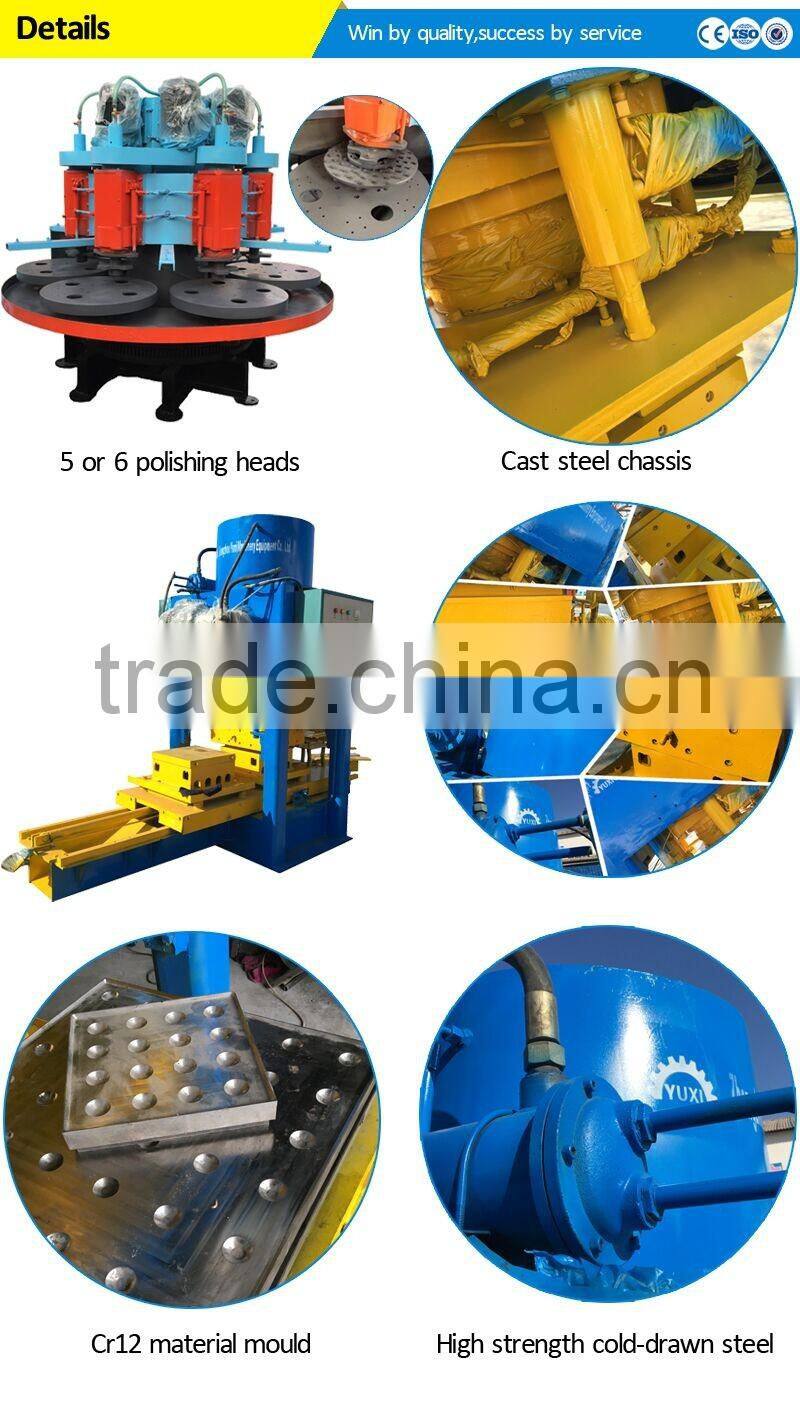

♥Product feature:Good fracture resistance,high abrasive resistance strength,good anti-skid,wears well and elegant taste about terrazzo tile making machine

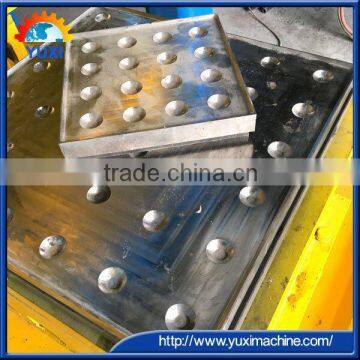

♥Mould of floor tile making machine:Use Cr12 and other special mould steel materials,after forging,milling,cutting,grinding,carving and quenching,the mould has high accuracy,strength and abrasion resistance,wear well and no distortion.
♥Main material of floor tile making machine: uses clean steel material,cold-drawn steel,surface hard chrome plating.
hydraulic system original design manifold block,exclusive gear ring turntable design,increasing the stability,location is more accuract.
♥Polishing machine of Frame:is made of high strength steel,strong compression and stable performance.
♥Chassis:is made of cast steel,overall stable performance and insure the quality of tile.
♥Polishing heads:5 or 6 polishing heads,each polishing head with one abrasivedisk.According to needs,
each abrasive disk can coarse grind by diamond polishing head and finally grind.
♥Pallet:Changed location,the machine can polish different size tile.
| Ups and downs,Let our trust and friendship go further... | |
| Delivery time | Usually 30 working days after we receive your deposit |
| Terms of payment | By T/T,50%deposit before delivery,50%balance before delivery,we will take pictures or video to check the quality of machine. |
| Price | We supply FOB price,CIF price,EXW price for your option |
| Warranty period | Two Year: ♥. Pre-sale service: design and manufacture machines for you as your special requirements, provide you with project, process design, and purchase programm. ♥. On-sale service: accompany with you to look around our factory, explain the manufacture process of our machines, and check the working performance of our machines. ♥. After-sale service: engineers are available to install and debugging equipments of the whole production line, besides, commissioning and training operators on site. |
| VIP service we suply | ♥1.We can recommend the perfectly suitable model terrazzo tile making machine based on your requirement,just let me know your maximum size of terrazzo tiles,thickness,drawing or picture of tiles you want to make. |
| ♥2.Resonable factory price or offer:We are manufacturer in Henan province with 21 year production experience,thus our price certainly nice and bottom line of market.welcome dealer,wholesaler to join our group. | |
| ♥3.One stop service:From production,package,customs clearance,delivery,after-sales anwhile,in order to meet customer's demand,we can also provide pigment,PVC pallets matched terrazzo tile making machine. | |
| ♥4.Detailed and professiona instruction:Our engineer are available to install in your country,the installation charge is $100/day,if no need,we can mpake the detailed installation drawing and manual operation instruction. | |

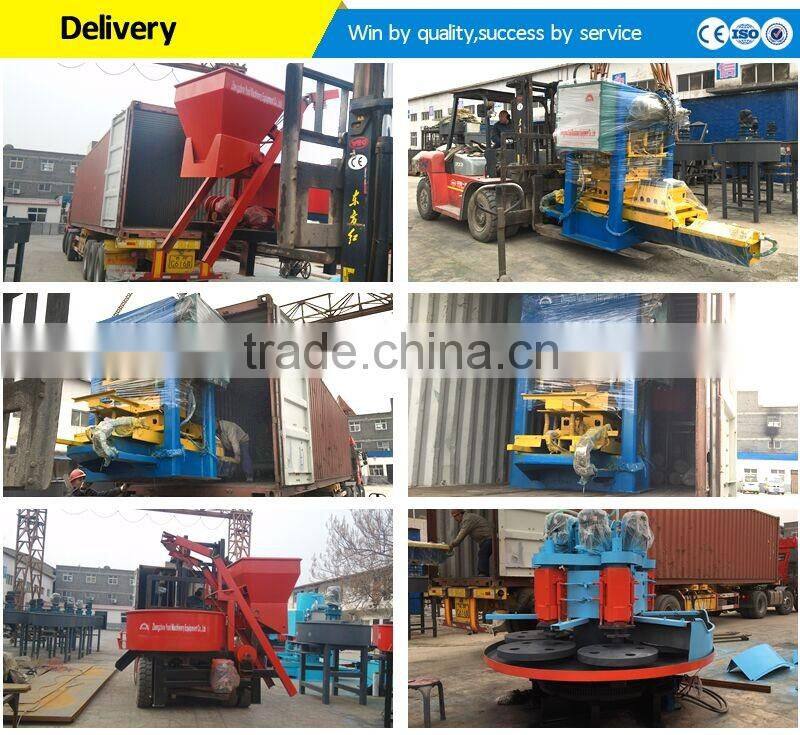

♦1.Flexible Delivery Way:FCL sailing or LCL sailing,Air Transportation,parts or document with express delivery.

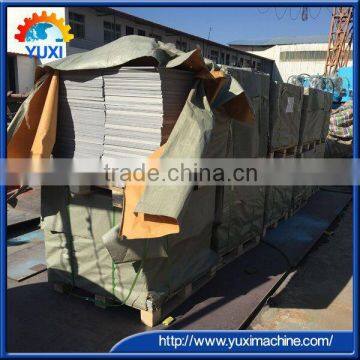

♦2.We will send machine with plastic film package,parts with wooden case,if need, fumigation wooden carton also available.
♦3.We can supply EXW(Ex Works),FOB Qingdao(We deliver the machine to Qingdao port,China),CIF(cost+invoice+freight charge to your port)service.
Good day,my friend,this is sally, →Sally are ready to recommend the right machine and offer best price for you,welcome to send inquiry or contact directly as below information.
Profit may begin from one your inquiry ,one email,one question......
