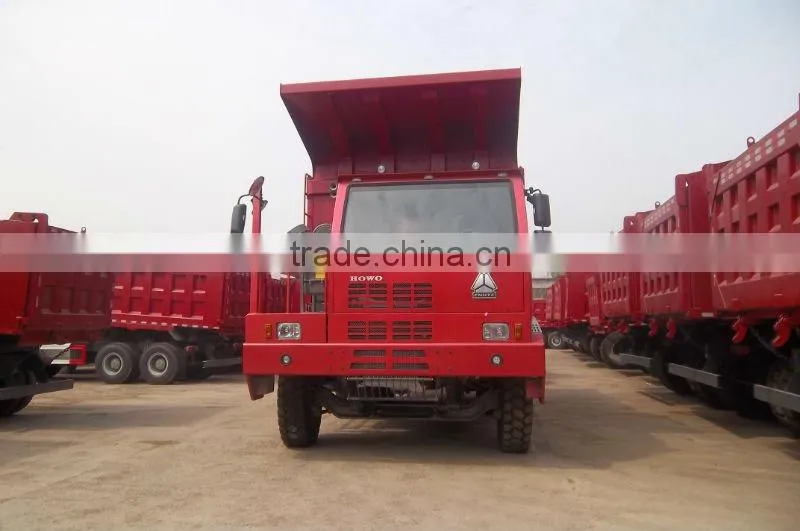

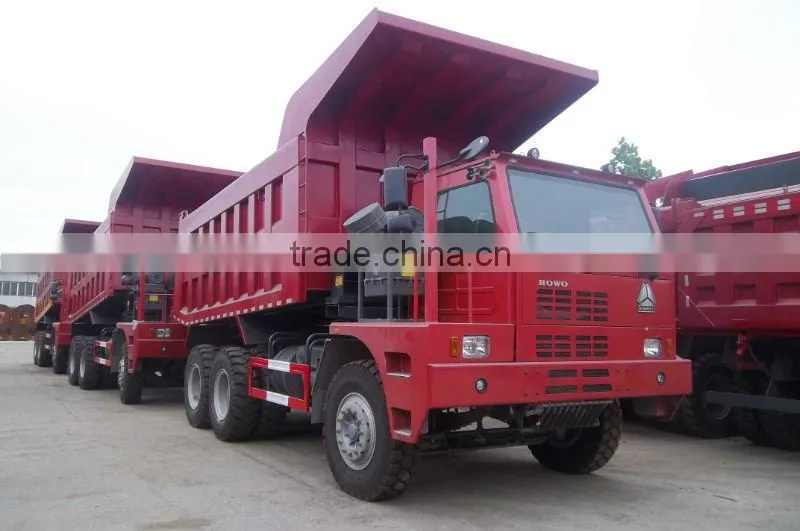

HOVA mining tripper truck
- 10000 Piece / Pieces per Month
- tianji
- T/T
Product Details
Drive Wheel: | 6x4 | Capacity (Load): | 41 - 50t | Horsepower: | 351 - 450hp |
Condition: | New | Transmission Type: | Manual | Emission Standard: | Euro 3 |
Fuel Type: | Diesel | Place of Origin: | Shandong, China | ||
Brand Name: | SINOTRUK | Model Number: | HOVA |
Product Description
Specifications
sinotruck HOVA mining tipper truck1.capable and experienced
2.best quality at competitive price
3.quick delivery after depos
HOVA mining tiiper truck
Packaging & Delivery
Packaging Detail: | Packed in nude . |
Delivery Detail | Within 40 days |
Specifications
Model: ZZ5607VDNB38400
Engine output: 336 hp (Euro II),
Transmission: FULLER 9
Tires: 13.00-20Tube
Cargobox 5800X2800X1500
| Truck model | ZZ5607VDNB38400 |
| Sales code | HV7/336/K38/6x4D |
Size parameters | Dimension (mm) | 8360x3000x3475 |
Dimension in container (mm) | 5800x2800x1500 | |
Wheelbase(mm) | 3800+1500 | |
Front overhang/rear overhang (mm) | 1500/1560 | |
Min.ground clearance (mm) | 380 | |
Approach angle/departure angle(°) | 29/35.5 | |
Weight parameters | Total weight(kg) / Max.rated contained quality | 20000/40000 |
Performance parameters | Max.speed (km/h) | 49 |
Max.gradeability ( %) | 50 | |
Engine | Model | WD615.69 |
Rated engine power (kw/rpm) | 247/2200
| |
Max.torque ( N.m/r/min) | 1350/1100-1600 | |
Specific fuel consumption (g/kw.h) | 192 | |
Clutch | SINOTRUK 430 spiral spring | |
Gearbox | Model | HW18710 FULLER 9 |
Ratio | 14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.8 1.34 1.00 R13.91 R3.18 | |
Drive axle | Strengthened wide steel two-grade reducing & double tires drive axle (10.24) | |
Front axle | Strengthened wide stiff front shaft | |
Overhang | Strengthened front parallel leaf semi-oval steel spring , column shock absorber , front stabilizer bar, strengthened rear complete balancer suspension , 4 U bolts obliquely equipped on single side , rear stabilizer bar | |
Tire | 13.00-25 13.00-20Tube | |
Brake system | Service brake | Dual circuit brake |
Park brake | Spring energy air cut brake | |
Auxiliary | Engine exhaust brake | |
Electric system | Single line 24V negative grounded | |
Fuel tank | 400L | |
Min.diameter of tuming (m) | 22.5 |
