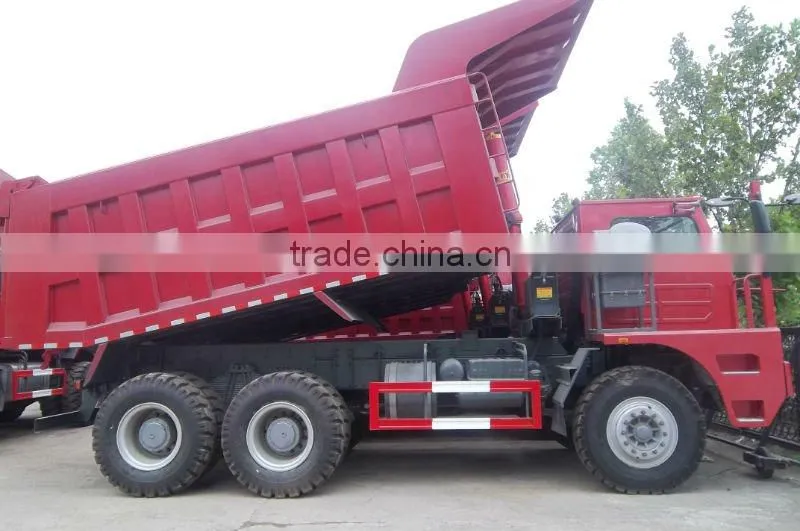

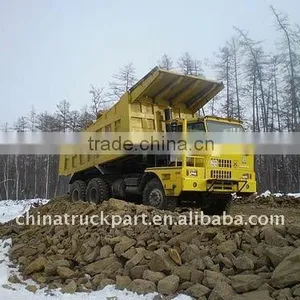

SINOTRUK HOVA Tiiper Truck 6*4

Name: SINOTRUK HOVA Tiiper Truck 6*4
Brand: SINOTRUK
SKU: 116644961

US$ 30,000 - 50,000 MOQ: 1 Piece

Key Specifications

Drive Wheel:

6x4

Capacity (Load):

41 - 50t

Horsepower:

351 - 450hp

Jinan Hainuoer Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianji

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel 6x4

Capacity (Load) 41 - 50t

Horsepower 351 - 450hp

Condition New

Transmission Type Manual

Emission Standard Euro 3

Fuel Type Diesel

Gross Vehicle Weight 15

Place of Origin Shandong, China

Brand Name SINOTRUK

Model Number HOVA

Specifications

sinotruck HOVA mining tipper truck
1.capable and experienced
2.best quality at competitive price
3.quick delivery after depos

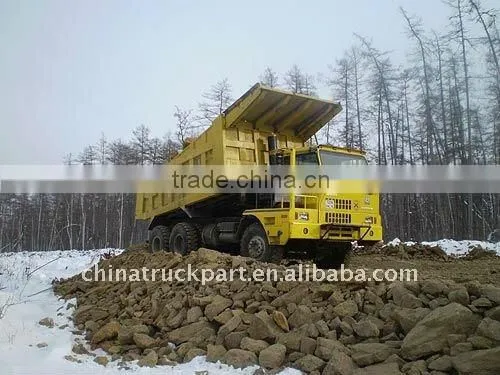

HOVA mining tiiper truck

Packaging & Delivery

Packaging Detail:	Packed in nude .
Delivery Detail	Within 40 days

Specifications

Model: ZZ5607VDNB38400
Engine output: 336 hp (Euro II),
Transmission: FULLER 9
Tires: 13.00-20Tube
Cargobox 5800X2800X1500

	Truck model	ZZ5607VDNB38400
	Sales code	HV7/336/K38/6x4D
Size parameters	Dimension (mm)	8360x3000x3475
	Dimension in container (mm)	5800x2800x1500
	Wheelbase(mm)	3800+1500
	Front overhang/rear overhang (mm)	1500/1560
	Min.ground clearance (mm)	380
	Approach angle/departure angle(°)	29/35.5
Weight parameters	Total weight(kg) / Max.rated contained quality	20000/40000
Performance parameters	Max.speed (km/h)	49
Performance parameters	Max.gradeability ( %)	50
Engine	Model	WD615.69
	Rated engine power (kw/rpm)	247/2200
	Max.torque ( N.m/r/min)	1350/1100-1600
	Specific fuel consumption (g/kw.h)	192
Clutch	SINOTRUK 430 spiral spring
Gearbox	Model	HW18710 FULLER 9
Gearbox	Ratio	14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.8 1.34 1.00 R13.91 R3.18
Drive axle	Strengthened wide steel two-grade reducing & double tires drive axle (10.24)
Front axle	Strengthened wide stiff front shaft
Overhang	Strengthened front parallel leaf semi-oval steel spring , column shock absorber , front stabilizer bar, strengthened rear complete balancer suspension , 4 U bolts obliquely equipped on single side , rear stabilizer bar
Tire	13.00-25 13.00-20Tube
Brake system	Service brake	Dual circuit brake
	Park brake	Spring energy air cut brake
	Auxiliary	Engine exhaust brake
Electric system	Single line 24V negative grounded
Fuel tank	400L
Min.diameter of tuming (m)	22.5
