sign letters machinery Features:
1.computerized numerical control and program processing.
2. Automatic feeding , slotting and bending
3.Slotting and bending fuction can be used independent.
4.Auluminum sheet slotting special cutter.
5.Applicable material:Aluminum (Flat aluminum,aluminum coil trim cap,aluminum coil with foam,edge aluminum)
sign letters machinery Technical Data:
| Control system | ADI-V1.5.0 control system |
| Support system | windows xp/windows7(32 bits) |
| software support |
Coreldraw,Illustrator |
| Voltage | For american customer,the voltage is either 208v wye or 240v delta single phase is 220v,110v for chose,please kindly let us know which one is suitable for you,then we can do the voltage setting on machine to match your working enviroment |
sign letters machinery parameter
Material thickness: |
0.3-1.3mm |
Material width |
30-130mm(1-5 inches) |
Letter range |
40mm and more |
Max power |
1500w |
Power |
AC 220V/110v |
Feed speed |
10-40m/min |
Document format |
Ai/DXF |
Drive method |
Stepper |
Machine size |
1.75x0.9x1.28m |
Weight |
320kg |
sign letters machinery parts description
|

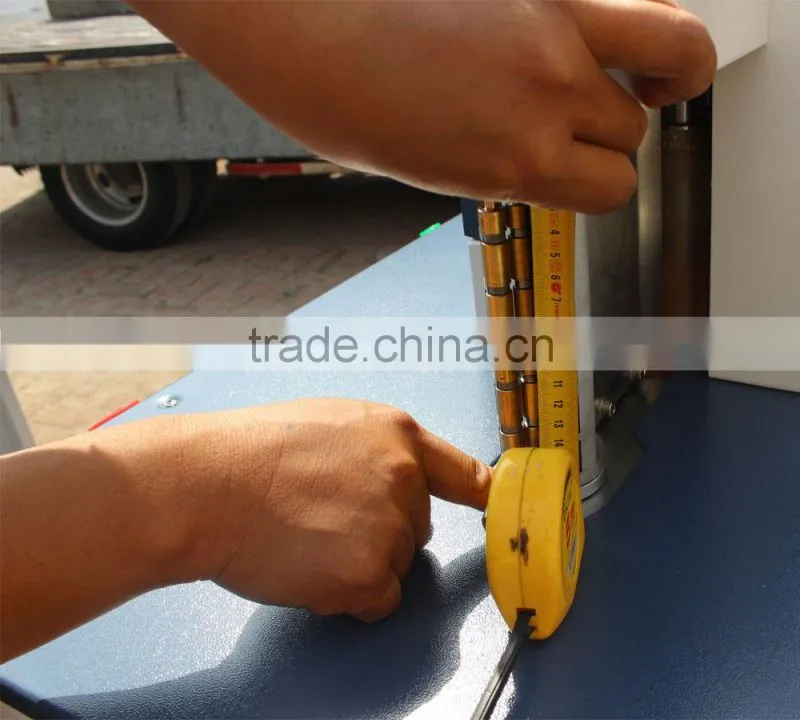

Four bars on bending part With four bars on bending part which allows the machine working in high speed and high precision |
| Adopts smoked pull racking,The Keyboard of computer will put on it,which is much convenient and comfortable |
|
|
|
Custom bending part for different aluminum coils include edge aluminum,sponge aluminum,both side edge aluminum as well as korea aluminum |

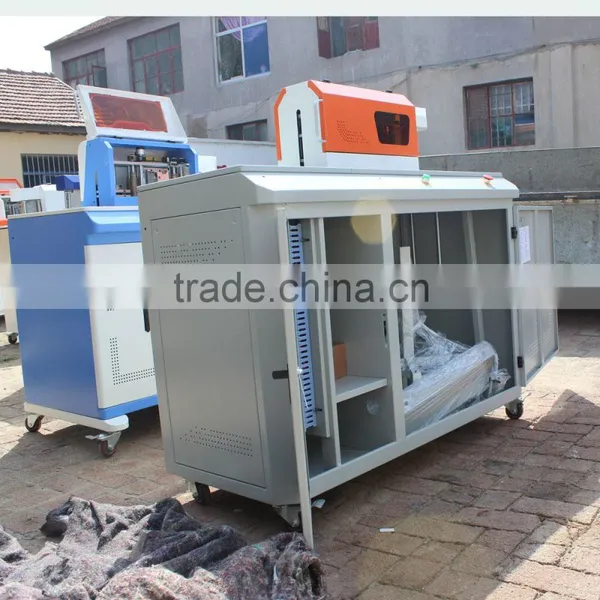

| The feeding part with stainless steel,just the slotting with nylon which will keep the coils to be crashed.The steel board will keep the machine working in long life |
|
|
|

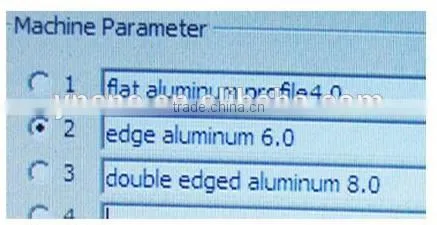

The parameters for different aluminum can be saved in it,no need to adjust it when change another aluminum coils |
| Control cabinet with two power supply which is more duarble than before. |
|

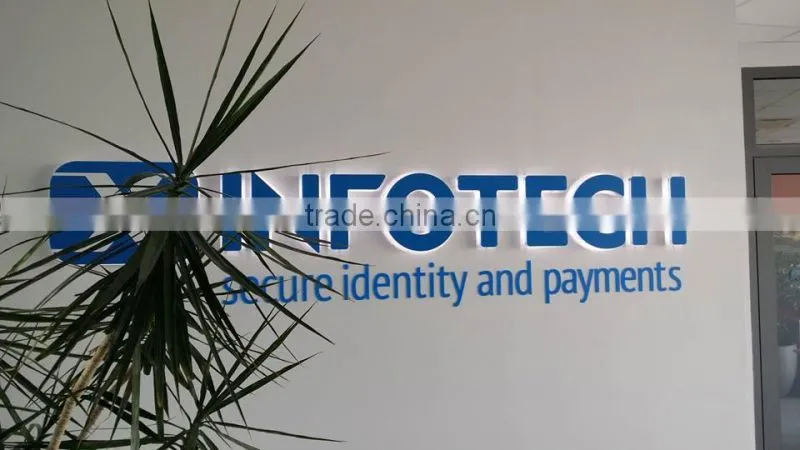

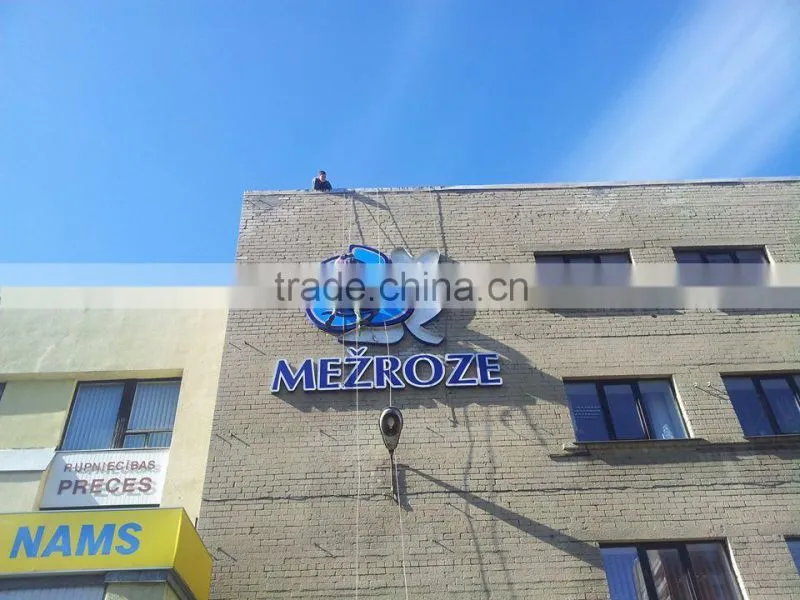

sign letters machinery samples
