Jdpaint Software Cnc Part Router For Pcb Price
Product Pictures
Technical Parameters
Model |
YN-1325W |
YN-1224W |
YN-1212W |
YN-1530W |
YN-2030W |
X-Y-Z axis working area (x-y-z) |
1,300x2,500x200mm |
1200*2400*200MM |
1200*1200*200MM |
1500*3000*200MM |
2000*3000*200MM |
Machine Size |
2,150x3,150mm |
||||
Resolution |
0.0025mm |
||||
Z axis height |
200mm, (300mm, 400mm optional) |
||||
X.Y movement |
Rack and pinion |
||||
Z movement |
Ball screw driver/Germany |
||||
Guide |
Linear 20 square/Taiwan |
||||
Max. speed |
35,000mm/min |
||||
Max. cutting speed |
25,000mm/min |
||||
Spindle |
4.5KW (water cooling)/ China Qiancheng brand 4.5kw |
||||
Spindle speed |
24000rpm |
||||
Driver motors |
Stepper |
||||
Inverter power |
7.5KW /Sunfar |
||||
Rotary axis (Optional) |
Working length 1500mm, diameter 100mm |
||||
Working voltage |
AC380V, 50/60HZ 3 phase |
||||
Command code |
G code G |
||||
Computer interface |
USB 2.2 |
||||
Collect |
ER25-12.7mm,6MM, 3.175MM |
||||
Software |
Router software/France |
||||
Controls |
DSP A 11(Digital signal Processor) |
||||
Packing dimensions |
2260x3250x1960mm, 1350KGS |
||||
Equipments included |
1). Oil lubrication system 2). Auto adjusting device 3). 6 zone vacuum system with 5.5KW air cooled vacuum pump 4). Double bags dust collector 3KW |
||||
Warranty |
24 month for whole machine |
||||
Delivery time |
7 days |
||||
Certificate |
CE |
||||
1.OR 1224 CNC router with 4 axis, is specially for 4D work,the A axis can rotate 100degree
3.With this machine, you can make different surface carving, arc-surface milling,bending surface machining for 4D jobs,like special shaped arts, bended doors or cabinets
4.It can work on foam ,MDF,Acrylic,wood,and soft metal etc.

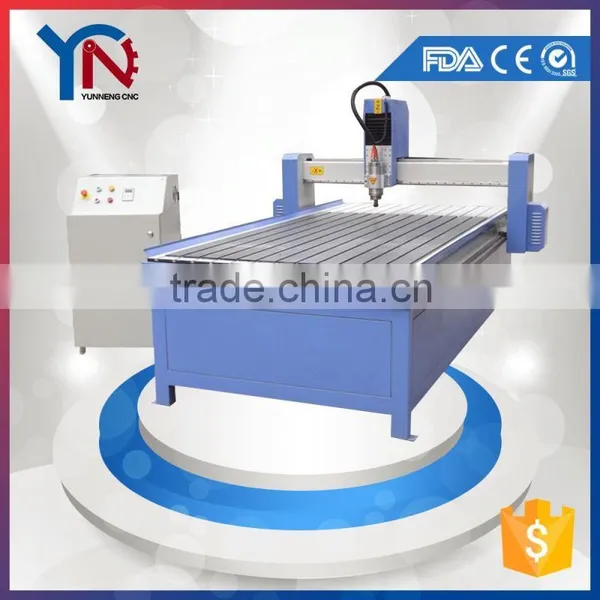

Detailed Images
Optional Accessories
Features of cnc router wood
1. Adopt constant power 1.5kw water cooling spindle
------- high speed, low noise and long life
2. Taiwan HIWIN square linear guide
------- Top brand in china.
3. Popular NC studio control and DSP control for optiona
--------It is very easy for every buyer and beginner.
4. Cast iron structure
--------never deformation
5. Mist water cooling sprayer and flume will cool the cutter
--------which is necessary when you cut or engrave on Aluminum,copper or other soft metal.
Applicable industries of cnc router wood
cnc router has a wide range of application, such as advertising field, seal field, packing field, pane making field, decorating field, art and craft field, architecture model field, souvenir field, badge field, electric circuitry field and carpentry field. it is used to engrave on Acrylic sheet, abs double color sheet, PVC foam sheet, wooden sheet, scagliola, PCB, granite, stone, steel and soft metal etc.
Samples Show
Click here you will get more surprise
