Specifications
types of electrical terminals:1. Specificate:6*9
2. Total length: 55--108.5mm
3. Pole:7/10/12/15
4. Screw Size: M5*8
types of electrical terminals
Material
• PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature: -30°C to 110°C
• ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 70°C
• PE, Polypropylene, Inflaming retarding, low transparency, low rigidity, good bounce impact force.
Working Temperature: -30°C to 110°C
• Brass, screw: iron plated zinc
• Voltage: 250V-450V
• Color: according sample picture or customized
Specifications
| Way | Spec. | L | L1 | L2 | H | W | Φ | Screw Size | Plastic Setting |
| W×H | mm | ||||||||
| 7 | 6×9 |
51 | 55 | 35 | 32 | 14 | 5.3 | M5 x 8 | PA |
| 10 | 72 | 76 | 35 | 32 | 14 | 5.3 | M5 x 8 | ||
| 12 | 85 | 89 | 35 | 32 | 14 | 5.3 | M5 x 8 | ||
| 15 | 104.5 | 108.5 | 35 | 32 | 14 | 5.3 | M5 x 8 | ||

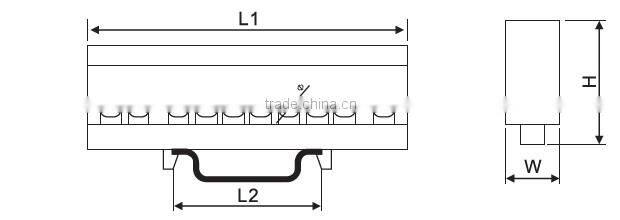

Drawings

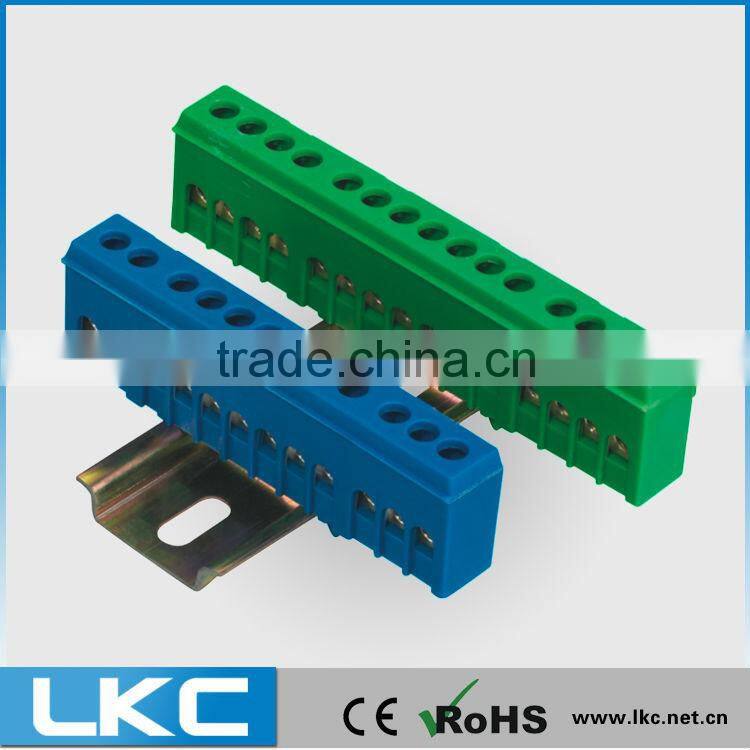

Product

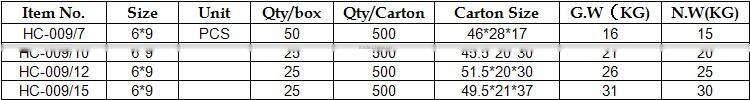

Packing
Conditions
| Minimum order: |
1000 USD (by sea or by air) ,and mixed order is available, Unlimited by Express (DHL,UPS,TNT...) |
|
Payment: |
a.100% TT in advance .(Order less than 4000 USD) |
| b.30% TT in advance,70% TT before delivery | |
| c.70% TT in advance,the balance against the copy of B/L at sight | |
| d.Negotiable | |
| Delivery time: | 3-30 days after received receipt of deposit |
Customer satisfaction is our greatest pursuit !

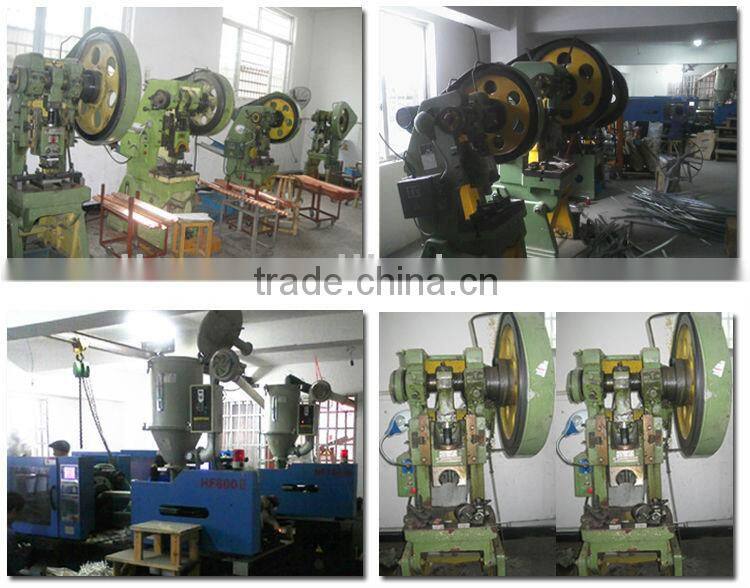

Workshop
About certificate
Exhibition
1) High precision
2) Excellent inoxidability
3) Great ingredient accuracy and high intensity
4) High corrosion resistance
5) Our own mold workshop and injection molding workshop
6) OEM Service
7) Prompt Delivery
8) Small Order Accept
9) Tolerance: ± 0.3mm
10) Free sample
11) Certificate: CE&RoHS&Others
Our team
Believe me, believe your choice!
All products that we supplied have the feature of safety, reliable, convenient and cheaper in price. Good in power conductor, lower in contact resistance, full range of specification. Customer satisfaction is our greatest pursuit !
We sincerely welcome new and old customers Contact us by letters or calls to discuss cooperation and make a common development!
