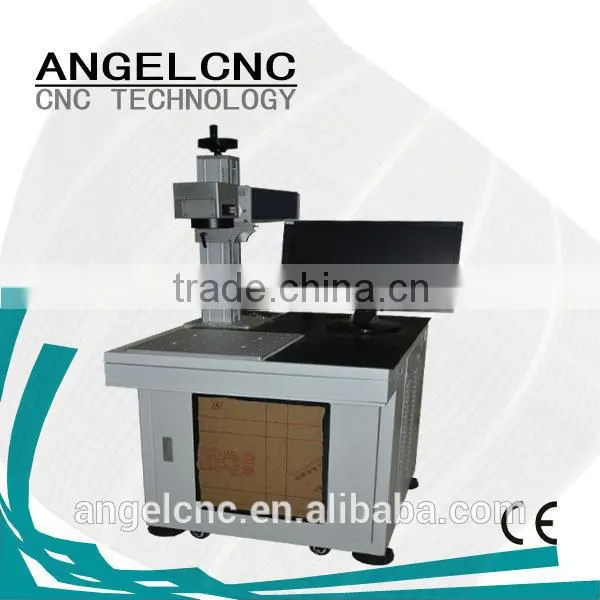

AG0101 fiber laser marking machine
Our company has a professional team engaged in the design, manufacture CNCengravingmachine, CNCwoodworking engraving machines, CNCadvertising engravingmachines, CNCstone engraving machine,CNC plasma cutting machines and other products.Especially inCNCmachining center technology also hasstrong design and development,manufacturing capacity.We can carve plastic, MDF,artificial stone, PVC,glass,aluminum and metal sheet material cutting and processing.It can be applied tovarious industries,furniture, wood products and so can. For ourcompany, we have excellent technical service team, advanced technology andservice concept,to provide you with efficient and high quality stable and reliable products and services
1.Technology Parameter:
Model |
AG-0101 |
Power |
10w,20w |
|
Laser wavelength
|
1060nm |
Light beam quality |
m2<1.5 |
Repeating frequency |
≤100 KHz |
Working range |
110×110mm |
Marking depth |
≤1.2mm |
Scanning Speed |
≤12000mm/s |
Minimum line width |
0.01mm |
Minimum character |
0.05mm |
Repeating precision |
±0.001mm |
Power supply |
220V/50Hz/10A |
Packing size |
750*850*1400mm |
G.W. |
105KG |
Cooling method |
Inbuilt air cooling |
2.Advantage:
1.Fiber laser marking machine is the new generation laser marking system developed by our company with advanced laser technique. It adopts fiber laser to output laser and achieves to marking function after high speed.
2.Scanning oscillating mirror system. It has higher photoelectric transfer efficiency. This machine adopts air cooling way and the whole machine is small. The output beam is qualified, high reliability.
3.Features:
1. Excellent beam quality-The laser spot and divergence angle of fiber laser marking machine is smaller than traditional marking machine, marking more precision
2. Low use-cost: high turnover ratio between electricity and laser, the whole machine power consumption is less than 500W, which is 1/10 of light pumping source laser.
3. Maintenance-free Operation: There is no need of any maintenance for laser, or to adjust /clean the lens.
4. Long working life: using laser diode as pumping source, the working hours can reach as long as 100,000 hours.
5. Small machine body can be used in severe environment: using fiber to realize laser transport and the structure is compact, which makes possible to work under severe environment such as vibration, high-temperature.
6. High processing speed: 2-3 times of the traditional laser marking machine.
4.Application Field:
Mobile phone keypads, nonopaque-plastic keypads, electronic components, integrated circuits(IC), electrical appliances, communication products, sanitary wares, tool accessories, cutters, watches, glasses, jewelry, auto parts, boxes, bags, clasps, cookers, stainless steel products, etc.
5.Package:
Packed with free-fumigation wooden case, more safe and environment during transportation.
Why some clients choose us?
We will provide the user a CD to study the machine installation and commissioning
Our technicists can give user online guide.
The user can call or email us any problems at any time.
One year warranty for machine maintenance, for equipment maintenance over the warranty period is clearly marked.
Why choose ANGEL CNC Serial product?
1.ANGEL CNC product is widely used in almost all the materials which you can think of.
2.ANGEL CNC company is specialized in cnc router and laser machine manufacturing and selling. There is no middle man and no agent, so the price is best.
3.ANGEL CNC With high precision and high reputation is the most reliable goods you can choose.
4.ANGEL CNC company has all kinds machines in store, the delivery time is much shorter than other companies.
5.ANGEL CNC company has international tech service office and provides 24 hours online service
