4 port switch poe switch 100M &1000M poe switch
APT prosper Technology Co.,Ltd was founded in 2004,located at the central part of Longgang District,Shenzhen.We are a high tech enterprise and specialize in the research,production marketing and service in optical communication field with our independent brands APTTEK.Main product are:Ethernet media converter,Digital video optic transceiver Fiber Switch and optical module.
With the unceasing development,APT provide service and management with the purpose of MUTUAL BENEFITS and the mission of SKILL IN QUALITY SEPCIALIZED IN SERVICE,offering best service and exquisite products to you-our honored customers.
To make the quality guaranteed and improvement,we strictly operated according to the ISO9001:2008 quality control system,CCC,CE standard.We pay great attention to the cultivation of talents,maximizing the employees potential with humanized management to boost staffs greatly;and providing a comprehensive training and guidance,continuously improving our process increase efficiency and reduce the waste to strength competitive power.Our constantly introducing data and video optical transmissions are widely used among the domestic operators and industry users with customer’s praise.The strategy of going out,our oversea sales department successful enlarge overseas users as a global partner.
Our goal is continuously satisfy our customers,provide high quality products and services to global partners,with first class technical support and solutions promote the development of the information of the information net construction.
Summarize
Power over Ethernet media switch is a high performance and 2 layer fiber optic Ethernet access switches.Non-management power over Ethernet switching.Using without configuration.After charging can directly use.The optic interface are very suitable for information point access distance which is beyond cat-5 access distance,resistance to electronic magnetic interference,communication security and other application areas,which are including FTTH broadband access network for residential district,high-speed fiber-optic lan for enterprise,high reliable industrial distributed control system (DCS) ,optical fiber digital video surveillance,network, local area network for hospital, campus network.
1000 series optical fiber Ethernet switches provide 1 or 2 fiber interface, (SC interface). Single-mode/multi-mode,single fiber/dual fiber are optional.20km is our standard configuration, and 40km/60km/80km/100km/120km transmission distance are optional;at the same time,it also provides 4~8 10/100 Base-T (X) RJ45 ports which support 10Mbps,100Mbps data rate,full duplex/half duplex and MDI/MDIX auto-negotiation.it adopts high performance network switch chip and which all ports support non-blocking,full speed packet forwarding.

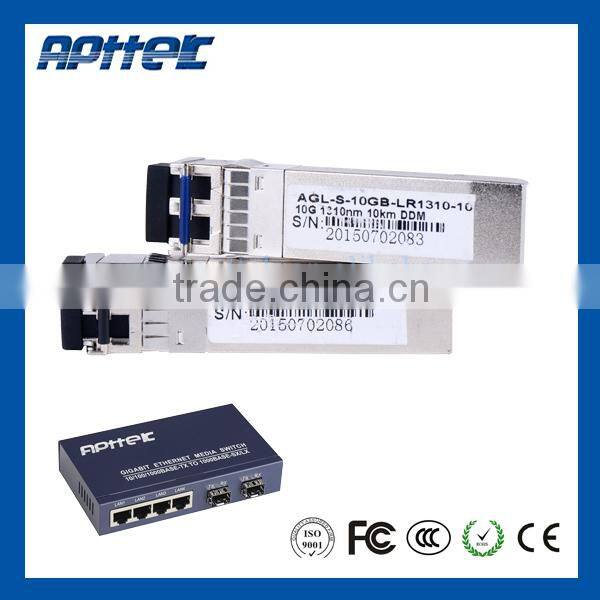

2000 series Poe switches provides 2 pcs of 1000 Base SFP optical fiber interface(LC/SC connector),single mode/multi mode,
single fiber/ dual fiber are optional,20km is our standard configuration,and 40km/60km/80km/100km/120km of optic transmitting distance optional;at the same time ,it also provides 4 pcs of 10/100/1000 Base-T(X) RJ45 port which supports 10Mbps,100Mb-ps and 1000Mbps data rate,full duplex/half duplex and MDI/MDIX auto-negotiation.It adopts high performance network switch chip,which all ports support non-blocking,full speed packet forwarding.It can be used flexibly and simply to use,Which is very suitable for data-communications,video monitoring, and the repeat transmission equipment.

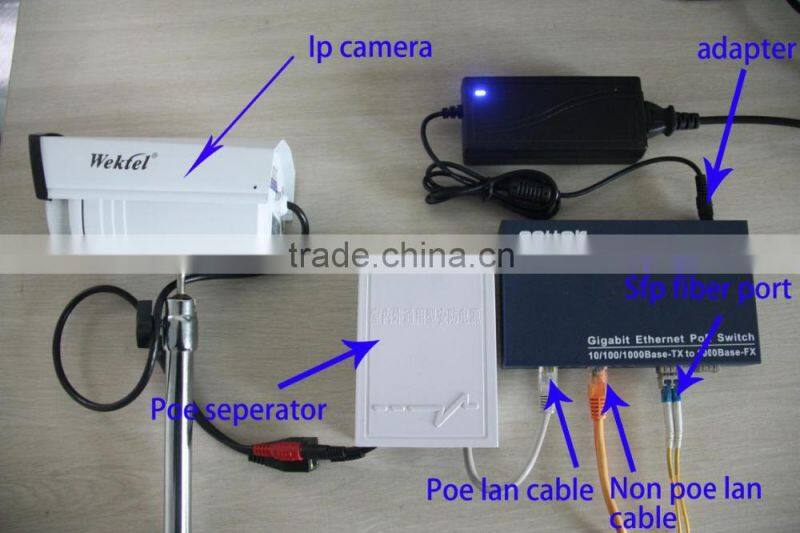

Connect diagram
Item | Specification/Term | ||
1 | Item number | 2000 series | 1000 series |
2 | Standard | IEEE802.3u,,IEEE802.3ah,IEEE802.3z/ab, IEEE802.3af/at | IEEE802.3 ,IEEE802.3u,. IEEE802.3af /at |
3 | Poe power supply | Maximum power 13W, Maximum transmission distance 100m, method of power supply 1/2(+) .3/6 (-) | Maximum power 13W,Maximum transmission distance 100m, methods of power supply 1/2(+) .3/6 (-) |
4 | Transmission speed | 10M/100M/1000M auto-negotiation | 10/100M auto-negotiation |
5 | Transmission mode | half/full duplex (auto-negotiation) | half/full duplex (auto-negotiation) |
6 | Conversion mode | full speed forward | full speed forward |
7 | MAC address | 8K | 1K |
8 | Data package length | 1632(10K)Bytes | 1552(2048)Bytes |
9 | Time-delay | 9.6us | 9.6us |
10 | Bit error rate | <1/1000000000 | <1/1000000000 |
11 | MTBF | 50,000 hour | 50,000 hour |
12 | Power supply | AC100~265V 50/60Hz/DC48V 2A | AC100~265V 50/60Hz / DC48V 2A |
13 | Power dissipation | <8W | <2.5W |
14 | Interface | Ethernet Port:RJ45,Optical Port:SC/FC/SFP | Ethernet Port:RJ45, Optical Port:SC/FC/SFP |
15 | Twisted-pair | CAT-5,CAT-6 | CAT-5,CAT-6 MDI/MDIX auto-negotiation |
16 | Multi-mode fiber | 50/125,62.5/125um | 50/125,62.5/125um |
17 | Single mode fiber | 8/125,8.3/125,9/125um | 8/125,8.3/125,9/125um |
18 | Wave Length | 850nm/1310nm/1550nm | 850nm/1310nm/1550nm |
19 | Transmission distance |
|
|
| 1)dual fiber multi-mode | 550m | 2km |
| 2)dual fiber single mode | 20/40/60/80/100/120Km(optional) | 20/40/60/80/100/120Km (optional) |
| 3)single mode single fiber | 20/40/60/80Km (optional) | 20/40/60/80Km (optional) |
| 4)Cat-5 Twisted-pair | 100m | 100m |
20 | Operating temperature | 0°C-70°C | 0~70°C |
21 | Storage temperature | -40~85°C | -40~85°C |
22 | Humidity | 5%~90% non-condensation | 5%~90% non-condensation |
23 | Size | See dimension pic | See dimension pic |
Package:
Main body *1
Manual *1
Charger * 1
Warranty card *1
All this in a carton case
Delivery:
Leading time:5~15 working days
Delivery way:By air,sea and express(DHL,EMS,Ups,Fedex,Tnt)
Payment:
T/T,Paypal,Western Union
Any question,please contact me directly or leave me an inquiry.
What's app and we chat:+86 13005471327
Skype:apt.8866
What's app and we chat:+86 18574394163
Skype:Dianne.Apt
