1. Brief introduction:

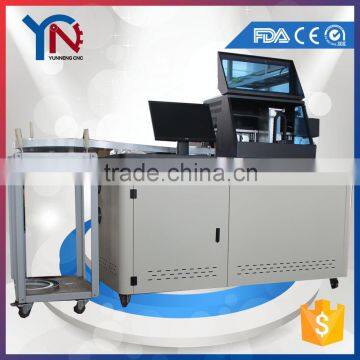

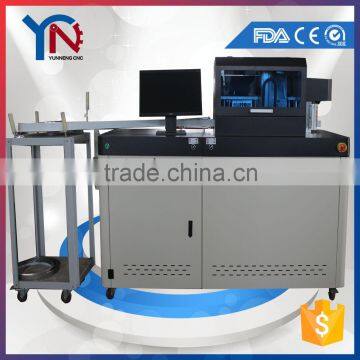

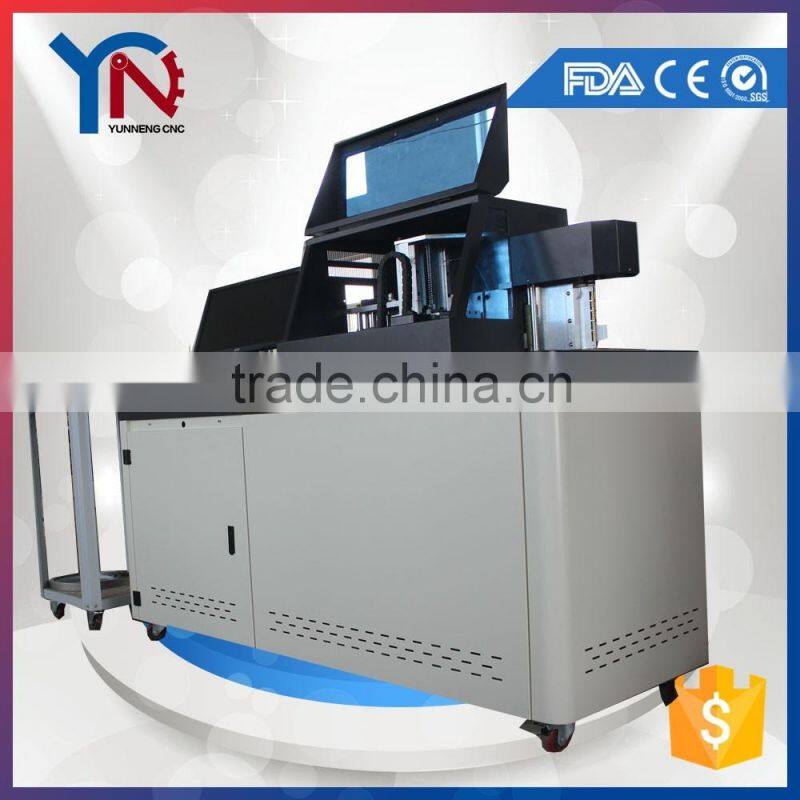

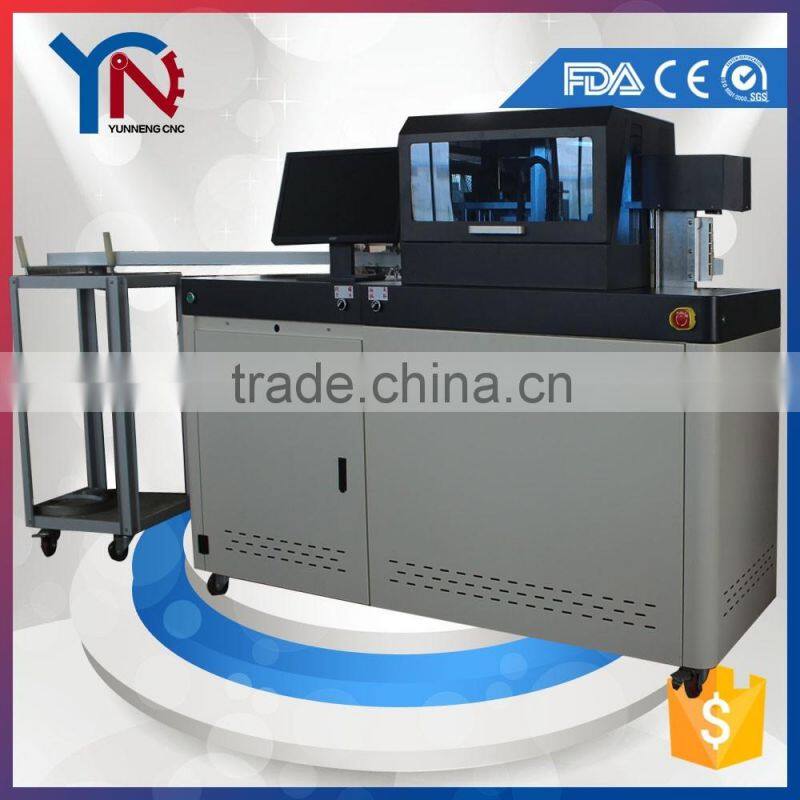

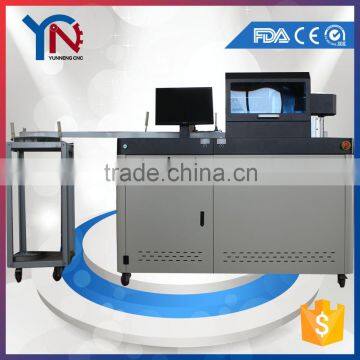

Automatic CNC bending machine, (also called CNC letter bending machine or character bending machine) is a new advertising production equipment, which can be used for logos, signs, neon signs, billboards, light boxes production, outdoor advertising and other advertising production.
Advantage

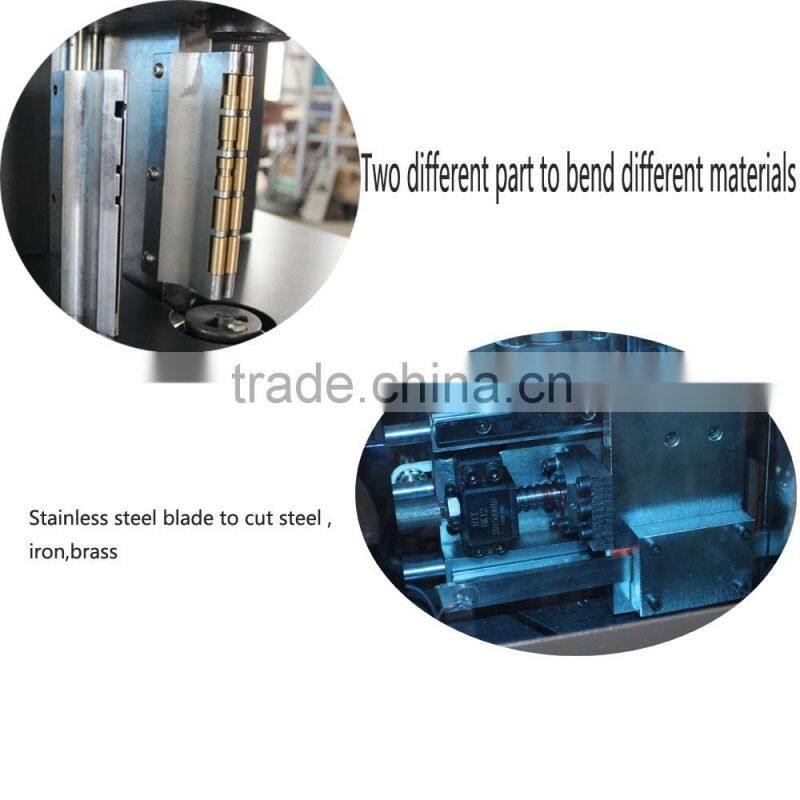

New type of three-in-one CNC Channel letter bending machine, there are two working systems and different bending axis, one for stainless steel and iron, another for aluminum. When we need to slot and bend different materials, No need to change the cutter. We just need to convert into another system. and it is convenient for us to change the bending axis, just three to five minutes. Therefore, this new machine can save time , works with more efficiency .
2. Technical data:
Types | YN-VC |
Operating principle | Automatic feeding , notching and bending |
Available Material | Aluminum , Stainless steel , Galvanized iron, Mild steel, Carbon steel |
Slot angle | 45°~135°(flat profile unlimited) |
Bending Radius | ≥10mm |
Letter size | ≥10cm |
Max. processed width | 45-130mm ( option>130mm) |
Max. processed thickness | Aluminum :0.3-1.2mm (option>1.5mm) Stainless steel:0.3-1.0mm Galvanized iron:0.3-1.0mm |
Driver motor | Yako stepper motor and driver for aluminum system,Japanese panasonic servo motor and driver for stainless steel bending system |
power | ≤1800W |
Feed speed | 10-40m/min |
Working format | dxf, ai, plt |
voltage | 220V |
Working air pressure | 0.6Mpa |
Machine size | 1850mm*880mm*1300mm |
Machine weight | 450KG |
