Specifications
CNC Router Carving EPS Mouldings Machine1.7.5kw water-cooling Spindle
2.Taiwan SYNTEC Control
3.YASKAWA servo motor
4.Ta

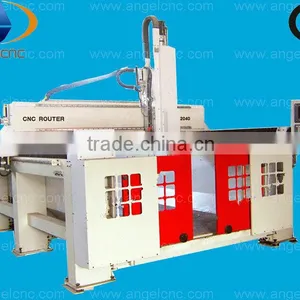

CNC Router Carving EPS Mouldings Machine
CNC Router Carving EPS Mouldings Machine Features
1.It adopt Taiwan Syntec control system,high accuracy and speed.
2.It is equipped with self-lubricating blocks,with four-row ball bearing and widened rail,so it can get equal force in all directions,to guarantee machanical precision and strength.
3.Z axis travel can be suitable for processing large-scale three dimensional surface.
4.Intelligent processing protection can aviod mechanical collision when design files are too large.
5.Diversification of control can individually control process speed,travelling speed and tools change speed so improve the quality of processed products and efficiency
CNC Router Carving EPS Mouldings Machine Technical-parameters:
China EPS foam cutter 2040 | |
X,Y,Z axis working travel |
2000×4000× 1000 |
Working accuracy |
±0.03mm |
Repositioning accuracy |
± 0.03mm |
Table |
cast table |
X,y,z stucture |
x,y :rack pinion, z: ballscrew |
Rapid travel rate |
≥16000mm/min |
Working speed |
≥10000mm/min |
Spindle power |
7.5kw water-cooling spindle |
Spindle rotating speed |
100-24000rpm/min |
Drive system |
Japan servo system |
Command language |
G code |
Working voltage |
AC380V/50Hz |
Operating system |
Syntec system |

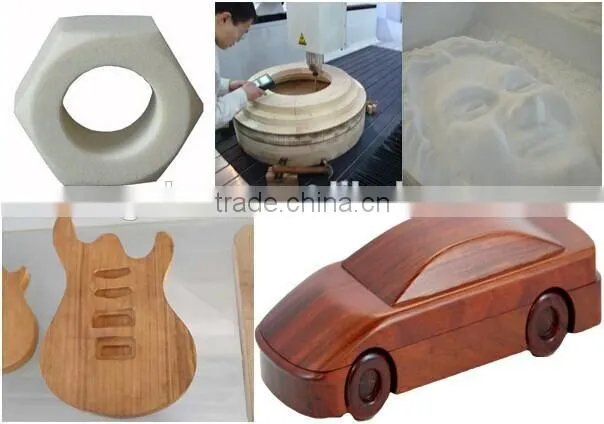

CNC Router Carving EPS Mouldings Machine Applicable industry and material:
1. The mold industry: casting, wind power, ships,aerospace industry, rail transport.
2. The instrument industry: three-dimensional surface of large musical instruments, cutting 3. Applicable materials: polystyrene foam (EPS), timber and non-metallic carbon hybrid materials and shaping

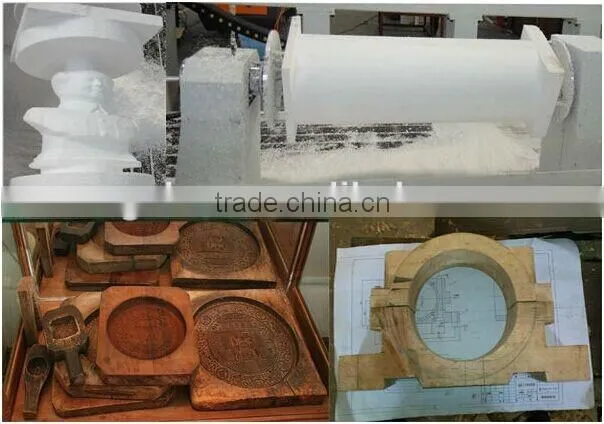

CNC Router Carving EPS Mouldings Machine Stample

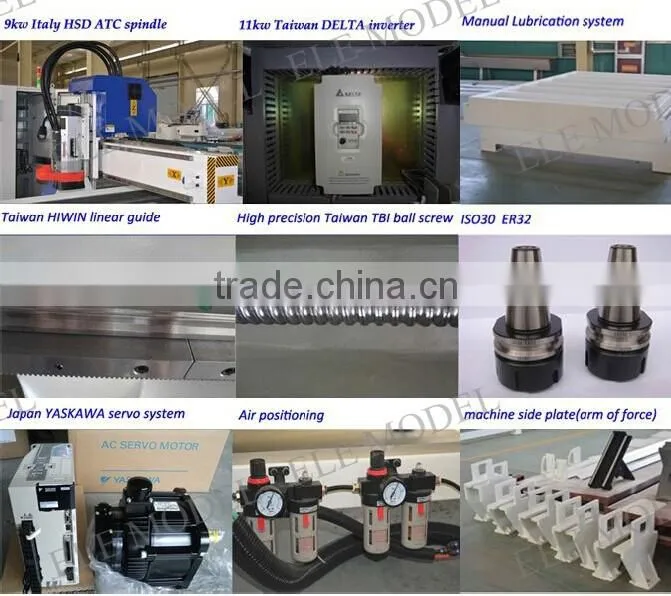

Parts

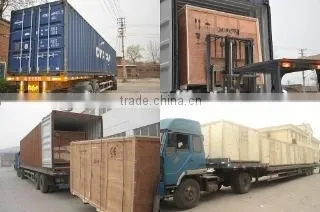

Packed with free-fumigation wooden case, more safe and environmental during transportation.
Container transport, faster, better efficiency, safety and high
Why some clients choose us?
We will provide the user a CD to study the machine installation and commissioning
Our technicists can give user online guide.
The user can call or email us any problems at any time.
One year warranty for machine maintenance, for equipment maintenance over the warranty period is clearly marked
Delivery Term:
1.FOB Qingdao/Tianjin/Shanghai
2.EXW
3.CIF+Destination port
