Sign CNC Channel Letter Metal Bending Machine
- 30 Set / Sets per Month
- Qingdao port
- T/T Credit Card
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | yunneng |
Model Number: | YN-VC | Machine Type: | Beading Machine | Raw Material: | Sheet / Plate Rolling |
Material / Metal Processed: | Aluminum | Power: | Cnc | Automation: | Automatic |
Extra Services: | Other, Slotting & Notching | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Sign CNC Channel Letter Metal Bending Machine:
plywood case
Product Description
Sign CNC Channel Letter Metal Bending Machine
>>> Brief Introduction
Automatic CNC Bending Machine, (also called CNC letter bending machine or characterbending machine) is a new advertising production equipment,
which can be used for logos, signs, neon signs, billboards, light boxes production, outdoor advertising and other advertising production.
Aluminum+ Stainless Steel+Galvanized Iron = Three Functions in One

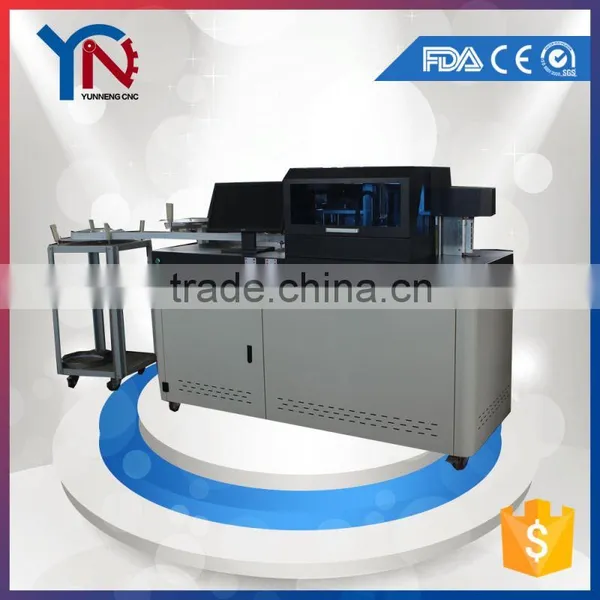

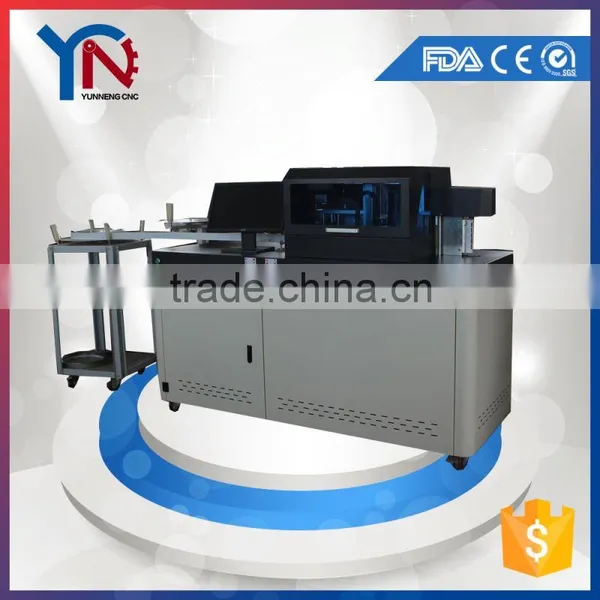

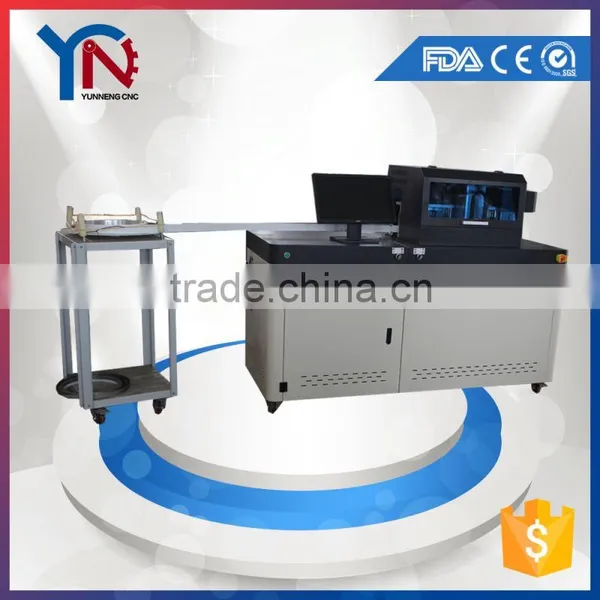

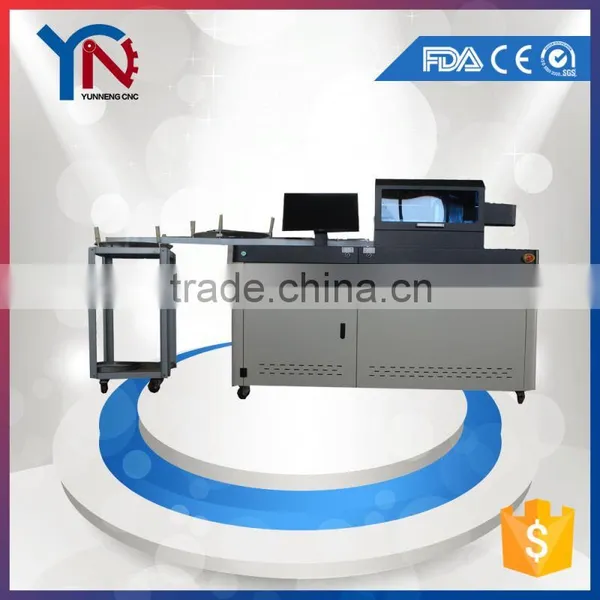

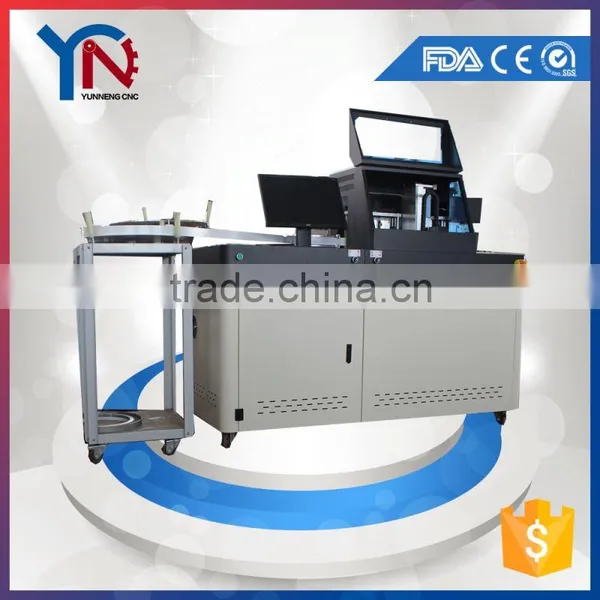

>>> Product Show
>>> Technical Data
Types | YN-VC |
Operating principle | Automatic feeding , notching and bending |
Available Material | Aluminum , Stainless steel , Galvanized iron, Mild steel, Carbon steel |
Slot angle | 30°~130°(flat profile unlimited) |
Bending Radius | ≥10mm |
Letter size | ≥10cm |
Max. processed width | 45-135mm ( option>135mm) |
Max. processed thickness | Aluminum :0.3-1.2mm (option>1.5mm) Stainless steel:0.3-1.0mm Galvanized iron:0.3-1.0mm |
Driver motor | Stepper motor ( option Servo motor) |
power | ≤1800W |
Feed speed | 10-40m/min |
Working format | dxf, ai, plt |
voltage | 220V |
Working air pressure | 0.6Mpa |
Machine size | 1850mm*880mm*1300mm |
Machine weight | 400KG |
>>> Samples Show
>>> Features
1.Aluminum/Stainless Steel profile Automatic straightening device
Before notching ,the profile will be compacted automatically, which will assure the smooth of the material and hi-precision cutting ;Automatic loose when no material or material feeding/return which make sure the
return material unobstructed.
2. Feeding system
Automatic feeding length measurement system BMO, control the feeding precision less than 0.05mm,improving the accuracy of the letter making.
3. Notching device:
Adopting the four slides location up and down motion and also use Japanese original gravity cylinder make the power transmission, the profile will be compacted automatically before notching,
which assure the stability and the precision of the slotting.
4.Bending device
Bending adopt up and down ,squeezing bending principle, use one squeeze roller to finish left and right bending,the advantage is when reverse bending, avoid transfer double roller bending lead to cambered surface rebound defect,this way the material will not deformation. We designed 200mm bending squeeze roller make the bending space amplification, it is more easy to bending small radian ,greatly improved the quality of letter making.
5.It can work in 0.05mmprecision , and work together with laser engraving machine , plasma cutting machine, CNC router to realize the advertisement processing.
>>> Advantages
1.New type of three-in-one CNC Channel letter bending machine, there are two working systems and different bending axis, one for stainless steel and iron, another for aluminum.
2.When we need to slot and bend different materials, Dot need to change the cutter. We just need to convert into another system.
3.And it is convenient for us to change the bending axis, just three to five minutes.
4.Therefore, this new machine can save time works with more efficiency .
>>> Other Types of Products
Stainless Steel Letter Bending Machine Aluminum Channel Letter Bending Machine
>> see more related products" href="http://yncnc.en.china.cn/productgrouplist-222371518/cnc_channel_letter_machine.html">>>> see more related products
>>> Application
1) Applicable Materials: Aluminum strip bending, stainless steel strip bending, iron bending, galvanized steel bending ect.
2) Applicable Industries: advertising industry, such as logos, signs, neon signs, billboards, light boxes production, outdoor advertising and other advertising production.
>>> Packaging
>>> Technical Characteristic
1.Cut angle from 45 to 130 and it can control depth precision,by using the CNC axis. the processing of various types of profile bending angle precision.
2.Intelligent control of the software,intelligent inspection to avoid collision in character bending process.
3.Telescopic bilaterally symmetrical bending mode of the unique,the greatest degree of bending process to avoid interference,and greatly improve the bending strength
4.Stainless steel gouging unique,single slotted mode profile milling groove,according to different characteristics of arbitrary switching material, the operation is simple and convenient .
5.Can read muti-vector file like the format such as AI,DXF matching with the engraving file perfectly.
6.Use rotary type handwheel to adjust the feed depth,the operation is simple and convenient.
Click below,you will have a surprise!!!
Company Profile
Our company is a manufacturer of laser cutting machine, CNC router, acrylic forming machine. We get to know each of our customers personally, and we have found that the most rewarding part of our business is helping others realize their own goals through our router machines.
Our success depends entirely on the satisfaction of our customers. Ensuring that you are completely happy and comfortable with your machine is always our first priority. We work tirelessly to make sure that your experience with our laser is always both professional.
Main Products:
CNC routers, laser machine, acrylic forming machine
Market:
Our products are very popular in Europe, the USA, the Middle East, Southeast Asia, etc.
