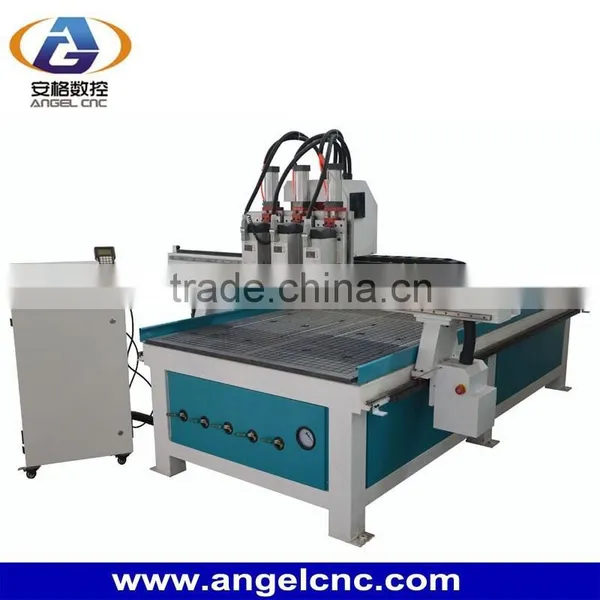

AG1325T CNC Wood Cutting Machine
Number |
Description |
Parameter |
1 |
X,Y,Z Working Area |
1300x2500x200mm |
2 |
Table Size |
1340×3640mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.02/300mm |
4 |
X,Y,Z Repositioning Accuracy |
±0.02mm |
5 |
Table Surface |
Vacuum and T-slot Combined (Option: T-slot Table) |
6 |
Frame |
Welded Structure |
7 |
X, Y Structure |
Rack and Pinion Drive, Hiwin Linear Rail |
8 |
Z Structure |
Hiwin Linear Rail and Ball Screw |
9 |
Max. Power Consumption |
(Without Spindle) 4.5Kw |
10 |
Max. Rapid Travel Rate |
30000mm/min |
11 |
Max. Working Speed |
25000mm/min |
12 |
Spindle Power |
3.0/4.5/6KW |
13 |
Spindle Speed |
0-18000RPM |
14 |
Drive Motors |
Stepper System |
15 |
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V) |
16 |
Command Language |
G code |
17 |
Operating System |
DSP System (options: Ncstudio/Mach3 PC Software) |
18 |
Computer Interface |
USB |
19 |
Flash Memory |
512M(U Disk) |
20 |
Collet |
ER25 |
21 |
X,Y Resolution |
<0.01mm |
22 |
Software Compatibility |
Type3/Artcam Software |
23 |
Running Environment Temperature |
0 - 45 Centigrade |
24 |
Relative Humidity |
30% - 75% |
25 |
Packing Size |
3200X2270X1850mm |
26 |
N.W. |
1750KG |
27 |
G.W. |
2190KG |
28 |
Optional Parts |
Air Cooling Spindle or Water Cooling Spindle |
Syntec Control System | ||
Dust Collector | ||
Vacuum Pump | ||
Rotary System | ||
Mist-cooling System | ||
850W Yaskawa/800W Panasonic Servo Motors |
1. Machine frame continues Italian machine structure, classic design, and smooth operation. Avoid motor twisted while high speed machining. Frame is welded seamless by high quality steel tubes to make sure the performance of machine.
2.Industrial control system ,professional electronic parts,perfect function,stable performance,strong compatibility of software .

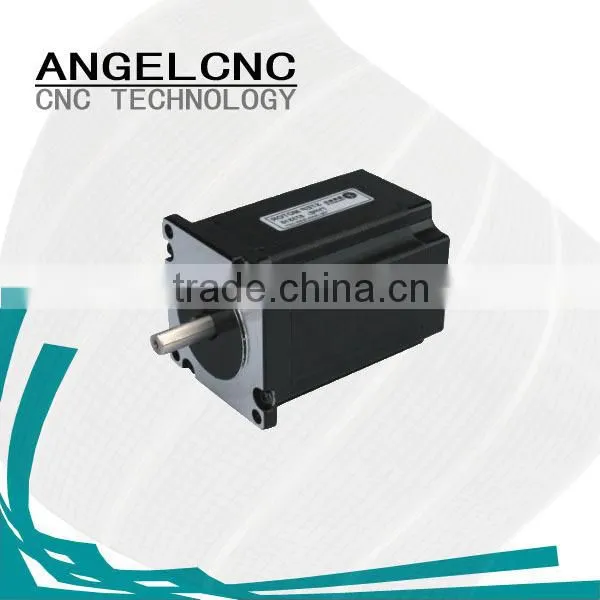

Stepper driven motors
Adopt stepper drive motor system , enhance machine life, high precision, high speed and stable performance.

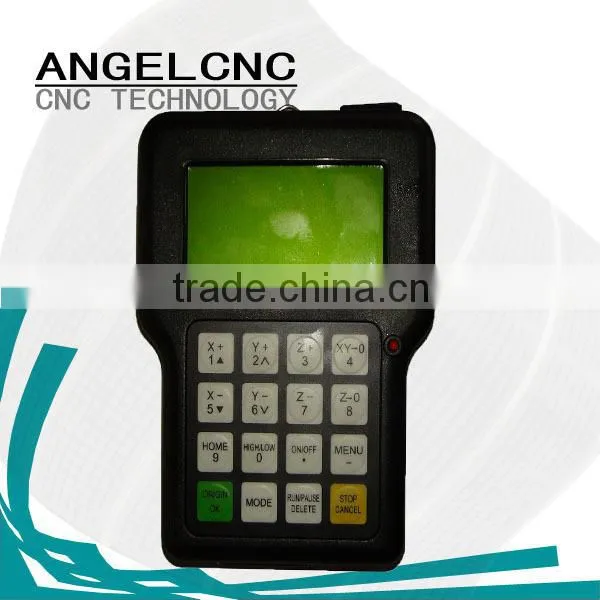

DSP control system
With DSP control system and not need computer
( can be completely off-line operation. ),
provides high independence and great convenience for operation.

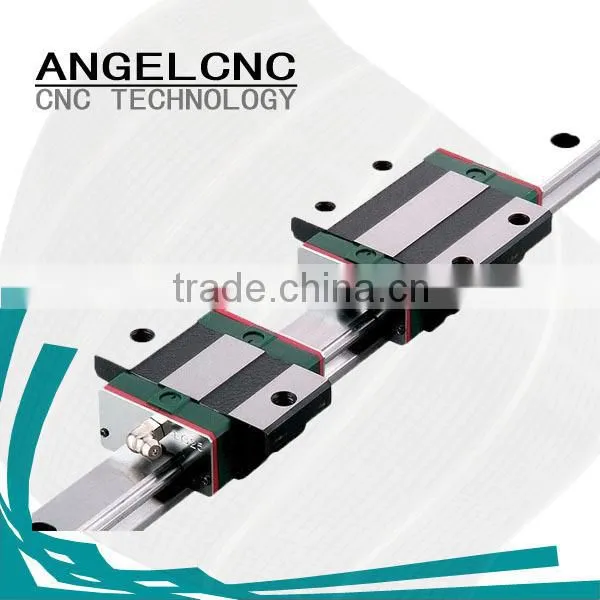

Hiwin linear rail
Taiwan Hiwin square guide rail,higher pricese and longer use life.

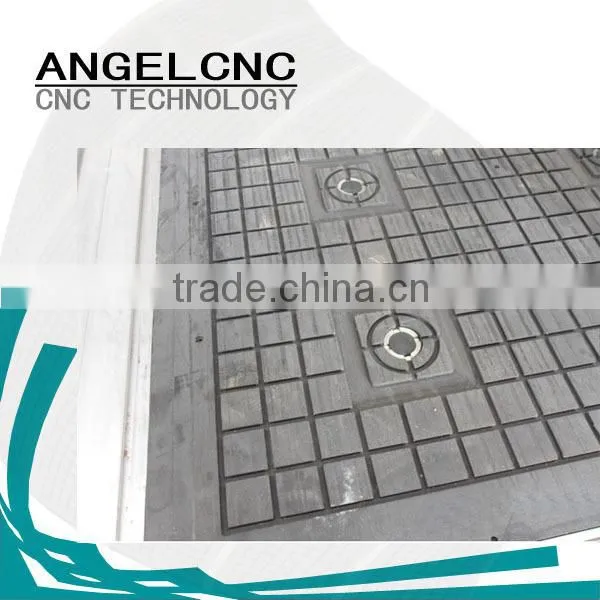

Table
Unique designed vacuum and T-slot table working table can absorpt the processing objects firmly.
Use free-fumigation wooden case, more safer duing transportatipon.
1.Technical support by phone, e-mail or MSN around the clock.
2.Friendly English version manual and operation video CD disk.
3.The machine's warranty is 12 months since the date of commission.
Jinan ANGEL CNC Equipment Co., Ltd., located in the beautiful spring city Jinan, is a professional dedicated to the design and development of CNC equipment, manufacturing and sales at home and abroad modern high-tech companies......
How to buy cnc router from us???
1. Please tell me your detailed requirements in the inquiry for the machine, such as:
What's the materials you are going to cut or engrave?
What's the maximum size for the materials? Includes the thickness. Do you have some special requirement?
2. After we know your exact needs, we will recommend you with the most suitable machine and competitive price.
3. After you confirm the specification of the machine and the price, the Proforma invoice will be sent to you.
4. We will produce the machine after deposit is wired.
5. The machine will be finished between 5-7working days.
6. The machine will be delivered after the balance is paid.
Any questions, please send us enquiry or talk to us by Trademanager! We will be glad to help!
Looking forward to your cooperation!!!
