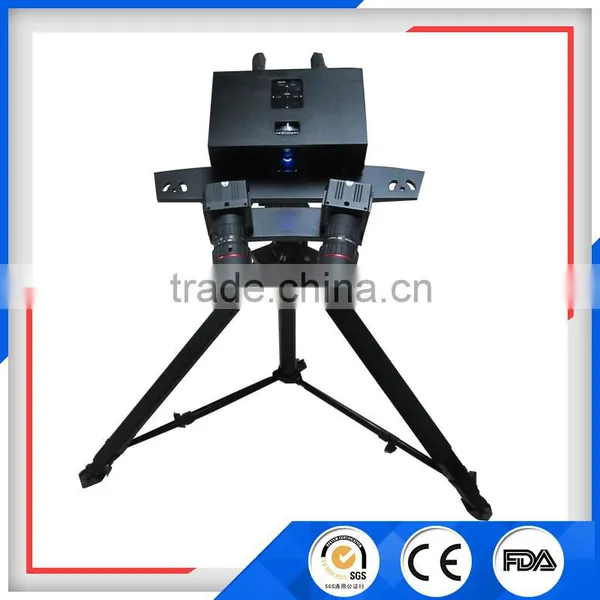

Help CenterFactory Price High Quality Photo 3d Foot Scanner
Related Products
-
High Quality Photo 3d Foot ScannerUS$ 5,000 - 8,900MOQ: 1 Set -
Yunneng Shining 3d Body ScannerUS$ 5,000 - 8,900MOQ: 1 Set
-
Fully Automatic Stitching 3d Body ScannerUS$ 5,000 - 8,900MOQ: 1 Set
-
4 Seconds Scan Speed Portable 3D Body ScannersUS$ 5,000 - 8,900MOQ: 1 Set
-
Photo 3d Body ScannerUS$ 5,000 - 8,900MOQ: 1 Set
The basic principles of the 3D scanner
Using structured light technique, phase measurement techniques, computer vision technology
3Dnon -contact measurement techniques . Using this 3Dmeasurement technology to Photographic
measurements of objects was possible , the so-called photographic measurement, Is similar to the
camera to takepictures of the object field ofview , different Is the camera shot is two-dimensional
images of objects, and the development of the measuringinstrument 3D object is obtained digital
information . Withthe traditional 3D scanner The difference is that Chinese Long continuous
measurement of 3D scanner to a 3D surface, the measured When the amount of raster (spot)
several pieces ofequipment projected light specificcoding structure (Point) to the test object, into a
certainangle of two (or more) photo Mined as the first synchronization corresponding image , and
then phase and decoding of image Calculated , and the use of matching techniques , triangulation
principle, calculate the two solutions One (or more) industrial camera field of view of public
surface of the three pixels Dimensional coordinates.
Technical parameter on 3D scanner
Model |
YN-3DM |
YN-3DMI |
YN-3DB |
||
Scaning mode |
Non-contact surface measurement |
||||
|
Single measurement format (unit: mm3) |
400x300 200x150 100x75 |
200x150 100 x75 |
400x300 200x150 100 x75 |
||
Overall scan range(unit: mm3) |
50mm-3000mm |
10mm-800mm |
10mm-3000mm |
||
|
Single precision (unit:mm) |
0.015~0.025 |
0.01~0.02 |
0.01~0.025 |
||
|
Single measurement time (: s) |
≤ 5s |
||||
|
resolution (unit: pixel) |
1,300,000X2 |
||||
Output file format |
AC;ASC ; PLY ; STL ; OBJ ; IGES |
||||
Splicing |
Fully automatic stitching |
||||
Operating system |
Windows98/NT/2000/XP/Vista/Win7 |
||||
power supply |
100~ 240V AC |
||||
Applications |
Auto and ship design mold manufacturing wood /stone carving Etc. |
toy industry appliances product modeling Etc. |
Auto and ship design mold manufacturing wood /stone carving toy industry Etc. |
||

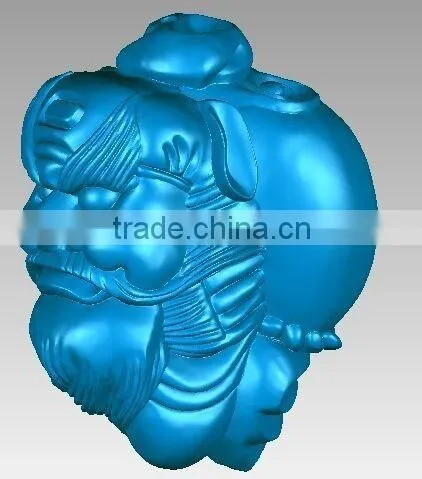

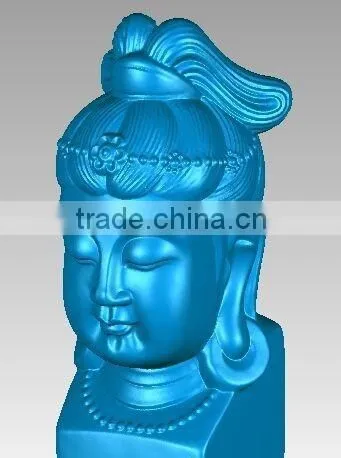

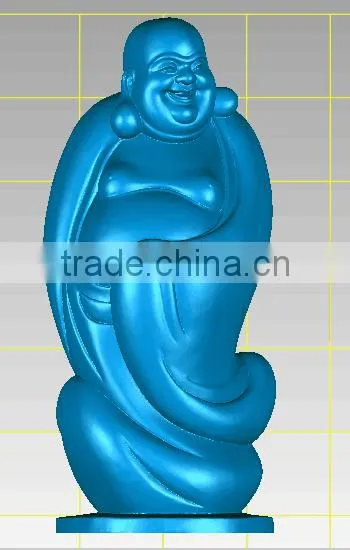

Samples
