Specifications
dmx controllerDMX512/1990 Standard,
LCD display with backlight
Up to 32 scanners
X-512B dmx console /led matrix dmx controller
HC-1311
0 X-512 DMX Lighting controller has strengthened the functions. X-512 can control 32 16-channel scanners.
0 Multi scenes and multi chase programs of scanners and lights can be added up and exported at the same time. Many kinds of very complex real time control can be realized.
0 X/Y channel of various type scanners can be controlled by the same control joystick. Local manual control is very convenient.
0 Four DMX output ports in controller (four independent DMX output modules with optical isolated) make it run safely and free of maintenance in performance.
Technical specifications of dmx controller
Digital output signal |
DMX512/1990 |
Channel of scanner |
1 - 512 |
Amount of scanners |
32 |
Amount of channels of a scanner |
16 |
Amount of scenes |
255 |
Amount of chase program |
32 |
Amount of steps of a chase |
120 steps |
Scope of Chase Cross |
0-100% |
Scope of Chase speed |
0.04second-10 minutes/step |
Advanced edit mode |
Copy and paste of scene of scanner |
Music synchronizing trigger |
-10dB ~ +10dB auto lever |
Control of chase direction |
Positive / negative |
Lock mode of keyboard |
Flash / latch / solo latch |
Input of music control signal |
Line input level of imbalance (1/4 mono audio socket) / pickup of inside microphone |
Display mode |
LCD screen, LED indicator |
Input socket of music signal |
1/4 mono audio socket |
DMX512 output port |
Optical isolated DMX output module x 4, XLR-D3F x 4 |
Power |
AC100-240V;50/60Hz ;9V/1000mA |
Volume |
482 mm X 365 mm X 110 mm |
Weight |
6 Kg |

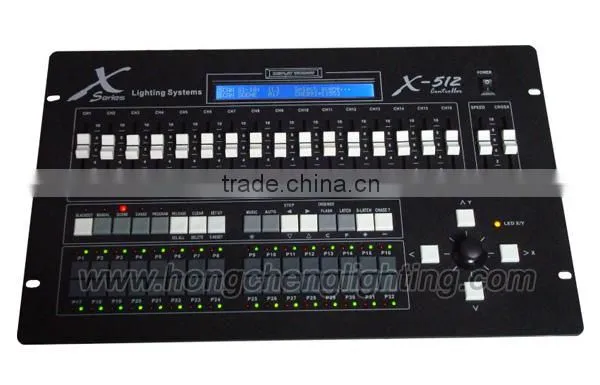

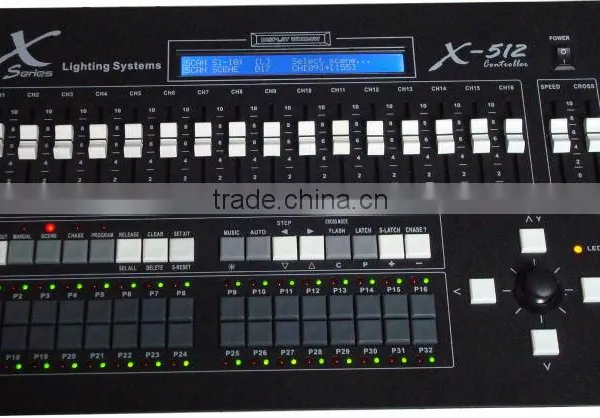

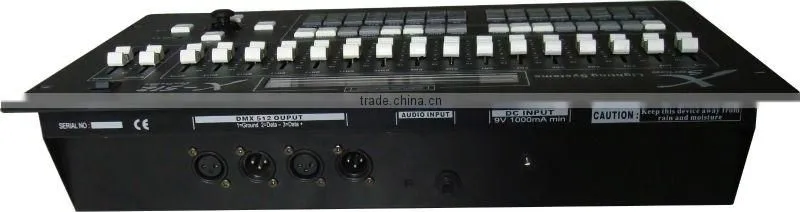

Pictures of dmx controller
INFORMATIONS
Price term |
EXW price |
Payment |
By Paypal, Western Union,T/T,30% deposit and 70% balance before delivery. |
Shipping Way |
1.by Express ( DHL, Fedex, Ups, EMS) 2.by Air 3.by Sea |
Sample time |
1-5 business days |
Production time |
5- 20 days, but ultimately subject to order quantity& lt; /p> |
Packing |
1.Using EPE packing the goods in case damage 2.Then put it into the Standard carton 3. we can provide flightcase |
Warranty |
1 years |
After- sell Service |
1. For damage on arrival, please be cooperative to take photoes on the damage and send to us for verifying. 2.If there is a problem with the product, ple ase describe it and sent the necessary picture or&am p;nb sp;video to us for analysing. 3.Then we will guide you how to fix it a nd provide free accessories if needed. |
SEEING IS BELIEVINGSEEIN
Look forward to your trial order to test the quality and performance of our items, then we are sure that we will have a long term business relationship hereafter.just email us,one your email,we will do all things for you to save your money and precious time.
Thank you very much!
