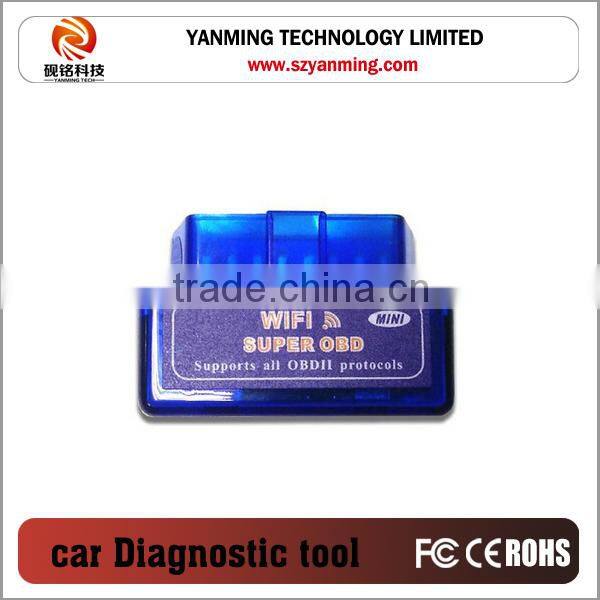

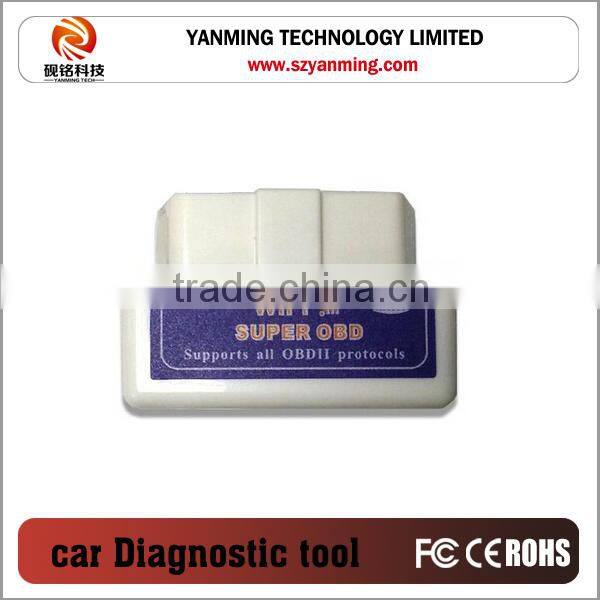

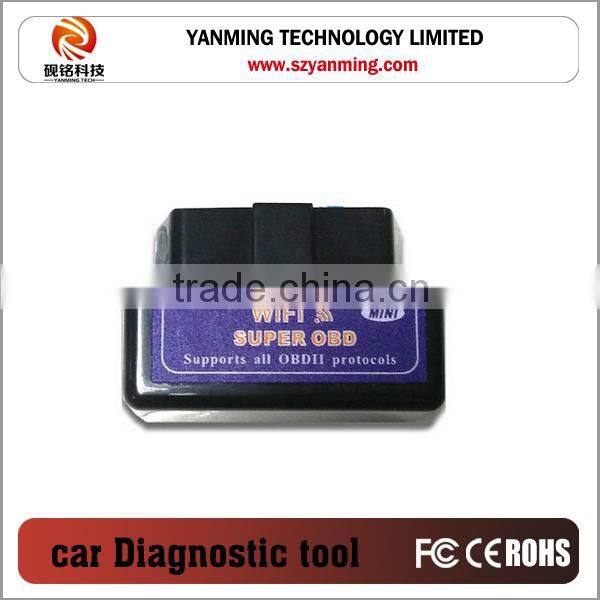

Super mini ELM327 wifi OBD2 V2.1 diagnostic code reader scanner tool with wholesale price

Description:

Mini WiFi ELM 327 can be used on IOS and Android syetem smart phone PC and so on... Mini WiFi ELM 327 auto checker is able to detect and interpret these protocols automatically. It also provides support for high speed communications and a low power sleep mode. It uses AT commands to communicate with a host device(PC, notebook, IOS, Smart phone and so on). There are plenty of software package available, which are fully compatible with WI-FI OBD AUTO Checker. Some of them have pretty useful features, such as engine runnign parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and are very well explained.

Top Four Reasons to get Wifi ELM327:

 1. Software Version: V2.1

     Firmware Version: V1.5

2. Support Retrieve Fault Codes (DTCs) and clear Check Engine lights.

3. Support IOS system 7.0-9.1, Android Torque system(Android 4.0-Android 4.4 version) Or PC (Only windows XP/Windows 7 32bit and close anti-virus programs)

4. It supports most OBD2 protocols.

Support protocols :

ISO 9141

ISO 11898(aka. CAN)

ISO 14230(aka. KWP2000)

ISO 15765(aka. CAN)

SAE J1939

Functions:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

Display current sensor data, including:

1.Engine RPM

2.Calculated Load Value

3.Coolant Temperature

4.Fuel System Status

5.Vehicle Speed

6.Short Term Fuel Trim

7.Long Term Fuel Trim

8.Intake Manifold Pressure

9.Timing Advance

10.Intake Air Temperature

11.Air Flow Rate

12.Absolute Throttle Position

13.Oxygen sensor voltages/associated short term fuel trims

14.Fuel System status

15.Fuel Pressure

etc.
