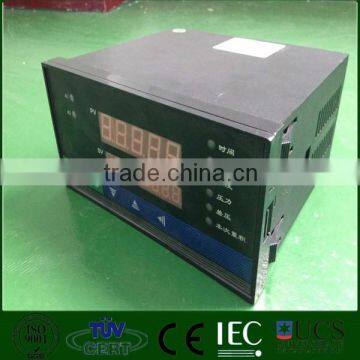

best seller temperature monitor
best seller temperature monitor
1 Range:0~999°C
2 Accuracy:±0.3%FS±1dig
3 Temperature sensor: K-type thermocouple (purchase additionally), 1pc
4 Control output: N.O. 10A/250VAC
5 Alarm output: N.O. 5A/250VAC
6 Dimension:77(Length)×35(Width)×6(Depth)mm
7 Mounting hole dimension:71(Length)×29(Width)mm
Temperature Controller Specifications:
Model |
P904 |
P906 |
P907 |
P908 |
P909 |
P910 |
SizeHxW |
48 x 48mm |
48 x 96mm |
72 x 72mm |
96 x 48mm |
96 x 96mm |
80 x 160mm |
Power voltage |
AC85 - 265V, DC24V (optional) |
|||||
Power frequency |
50 / 60Hz |
|||||
Power consumption |
Approx 3VA |
Approx 4VA |
Approx 4VA |
Approx 4VA |
Approx 4VA |
Approx 4VA |
Memory |
Power disconnection preserve memory E2 PROM |
|||||
Input |
Sensing signal input. Sampling time: 500ms, display accuracy: 0.2% of FS |
|||||
Thermocouples: K, J, R, S, B, E, N, T, W, U, L | ||||||
Thermal Resistance: Pt100, Pt 50 | ||||||
Linear signals: 4-20mA, 0-20mA, 1-5V, 0-5V | ||||||
Output |
Relay contact:3A/220V, electric life: 100,000 times or more (under rated load), operation cycle 15 seconds |
|||||
Pulse voltage: drive SSR, DC0/24V,ON: 24V, OFF: 0V. Operation cycle 1 second | ||||||
Linear signals: 4-20mA, 0-5V, 0-20mA, 0-10V, 1-5V various standard signal output | ||||||
Portion motor control output: control 3-line portion motor making it on or off, capable of displaying its openness of valves | ||||||
SCR zero position trigger signals: direct trigger SCR for single-phase or 3-phase, zero position control | ||||||
SCR phase trigger signals: direct trigger SCR for single-phase or 3-phase control | ||||||
Control |
Control mode: PID, ON/OFF, Phase PID, continuous PID, self-regulated PID, fuzzy PID, location portion control |
|||||
Set range: percentage band P:0-200.0%, integral time I: 0-3600 seconds, differential timeD: 0-900 seconds | ||||||
Accuracy |
Control accuracy: ±1oC |
|||||
Measurement accuracy: ±0.5%FS (±0.2% which can be provided) | ||||||
Resolution:14BIT | ||||||
Sampling cycle: 0.5 s | ||||||
General specifications |
Power voltage: support AC85-265V,50/60Hz,DC24V |
|||||
Operating ambience: -10~50,30~90%RH | ||||||
Consumed power: 10VA | ||||||
Weight: 0.3kg or less | ||||||
Insulation insulating resistance >20MΩ500VDC, intensity 1500VAC/1 minute | ||||||
