2410 Fuse-LED light fuse
- 50000 Piece / Pieces per Month
- Dongguan Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | AirMatrix | Model Number: | 2410 |
Usage: | Low Voltage | Breaking Capacity: | High | Safety Standards: | Other, UL PSE TUV CQC |
Packaging Details
Inner box: plastic bag
Outer carton:carton
Product Description
Specifications
>P/N:SMD 2410 fuse>Ir:0.5A-20A
>Ur:250Vac/125Vdc
>Approvals:UL PSE TUV CQC
>Blow:fast-acting
Features:

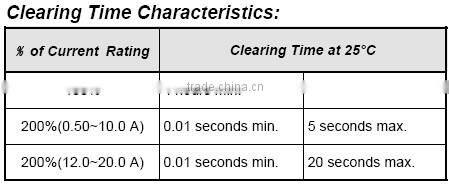

>Fast acting at 200% overload current level
>Excellent inrush current withstanding capability
>Fiberglass enforced epoxy fuse body
>Copper or copper alloy composite fuse link
>Copper termination with nickel and tin plating
>Halogen free, RoHS compliant and 100% lead-free
>Operating temperature range: -55°C to +125°C (with de-rating)
Agency Approval:
>Recognized Under the Components Program of Underwriters
Laboratories. File Number: E232989
>PSE Certificate No: NBK180711-JP13710
>TUV File Number: 50209083
>CQC No.: CQC11012065955
Typical Applications:
>Power Supply, e.g. DC/DC converters, DC/AC inverters, Backlight
drivers , etc.
>Consumer Electronics, e.g. LCD TVs, PDP, DVDs, PCM , etc.
>Communication Technology, e.g. Telecom systems, Networking,
Modems, Routers, Changers, Base stations , etc.
>Office Automation Electronics
>IT Products, e.g. LCD monitors, Notebooks, PC servers, etc.

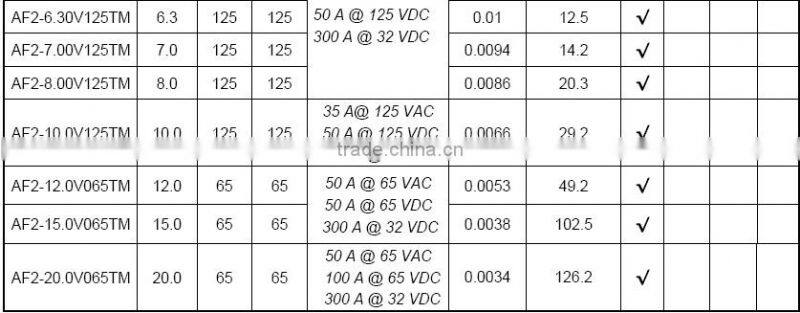

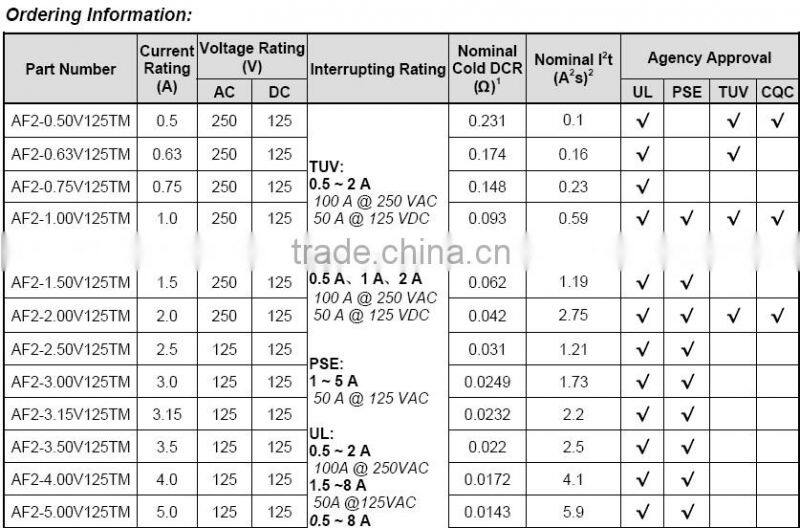

1. Measured at ≤ 10% rated current and 25ºC ambient
2. Melting I2t at 0.001 seconds pre-arcing time
1. We can deliver all over the world by DHL, UPS, FedEx, TNT and EMS. The packaging is very safe and strong. Please notify me if you have any special needs.
2. It will take around 3-5 days to reach your hands after production.
We provide all-round services from the inquiry period to the after-sale service period.
Our department would take it as the priority to produce for your order. Short-lead time is guaranteed.
The airway bill number will be offerred to to you for checking once available.
You can return the goods free of charge if any problems were found in our products.
Warranty period is 2 years.
Please contact me for more. Call me Tyler.
Skype ID: tianruifuse101
Factory Show
Company Profile
We are professional Manufacturer, Supplier, Exporter, Distributor of Circuit Protection Components in China. Main products include glass / ceramic tube fuses, thermal cutoffs, thermostats, automotive fuses, miniature fuses, SMD fuses, resettable fuses, fuse blocks, holders & clips.
Dongguan Reomax Electronics Co.,Ltd.(REOMAX-HK) stepped into the mainland market in 1999. As a professional circuit protective components-fuses manufacturer, we own advanced equipments,scientific testing standards and high-quality staff team. To ensure the quality of products, the ISO9001:2008 quality management system operation was carried out. We have accumulated rich production experience after years of exploration and development.With the principle of "client first",constantly improving technology and perfect sales service,Reomax has won wide recognition of overseas customers.
Reomax has brought in advanced equipments and excellent world advanced management experience.We take "the good faith,practical" as the enterprise management idea and "quality of survival,the product for development" as the enterprise principle. We focus on product safety and reliable performance, ensuring the product foolproof with safety performance. Our main products have passed UL,CUL,VDE,CCC,CQC,CE,PSE,KTL and ROHS and other international security authentication. Our products are widely used in power supply,switching power supply,chargers,transformers,computer,telephone,home appliances,communication products,lighting products,toys products,the LED energy-saving lamps,instruments and meters,electronic equipment,boards,all kinds of instruments and all kinds of electronic electric appliance connecting cables,motor products,IT,consumer electronics,automobiles and battery,etc.
Reomax provides customers worldwide with excellent quality,competitive price,fast delivery and comprehensive after-sales service! In order to coordinate with the general customers conveniently, Reomax has set up dongguan factory to support mass production!
Quality Concept: systematic manufacturing to ensure every product is high-quality goods.
Market Concept: brand, service, honor.
Service Tenet: To meet customer's requirements
Service Aim: To provide "zero defect" products and thoughtful service for customers,which is the goal of the company even each employees unswervingly pursuing.
The "reputation first, customer first, quality first" is always our service concept . With earnest and sincere cooperation,expanding innovation spirit of enterprise, we will do our best to make the products meet customers' requirements, and strive to be better and better.
With the independent brand(Reomax fuse),we firmly believe that can offer you higher quality products and more professional circuit protection solutions,and we look forward to your inquiry and your calls;If you have any products and technical guidance demands,we will be zealous to provide our best services;waiting for your patronage!
