AC125V/250V Ksd301 Thermal Switch

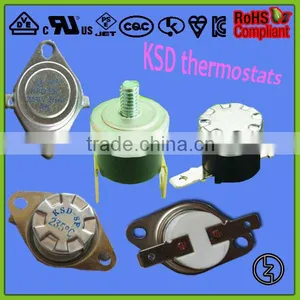

AC125V/250V Ksd301 Thermal Switch thumbnail-1
AC125V/250V Ksd301 Thermal Switch photo-1
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Reomax
Model Number:
KSD301
Contact Supplier Request Quote Chat Now
Dongguan Reomax Electronic Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Reomax
Model Number KSD301
Usage Industrial
Theory Temperature Controller

Specifications

>Type:ksd301 thermal switch
>Tf:45C-220C
>Ur:125V 250V
>Ir:5A-25A
>Reset type:manual or automatic

  Specifications

 KSD301 thermal switch details

1.Rated electrical performance: AC125/250V, 5A/7.5A/10A/15A/25A
2.Open temperature: 45 °C ~~ 220 ° C (according to the customers' requirements)
3.Open temperature tolerance: ± 2 ° C; ± 3 ° C; ± 5 ° C; ± 10 ° C; ± 15 ° C.
4.On-off temperature tolerance : 5 to 150 ° C
5.Reset temperature tolerances: ± 2 ° C; ± 3 ° C; ± 5 ° C.
6.Electric Strength: Under the AC50Hz/1800V,it lasts one minute without breakdown flashover phenomenon
7.Insulation resistance: ≥ 100MΩ (DC 500V)
8.Contact resistance: ≤ 50mΩ

9.heat resistance: It is based on the material

10.Life: ≥ 100,000 cycles

Features/Benefits



KSD301 snap action thermostat is small-size bimetal thermostat series with a metal cap,which belongs to thermalreays’family.

The main principle is that one fumction of bimetal discs snap action under the change of sening temperature.The snap action of disc can push the action of the contacts through the inside structure,then caused on of off of the circuitfinally.The main characteristics are the fixation of working temperature,the reliable snap action,less flashover,longer working life and less radio interference.

Gallery Of KSD301 thermal switch



 AC125V/250V ksd301 thermal switch

Selection Guidance of KSD301 thermal switches



Action temperature

Reset temperature



Action temperature

Reset temperature

45±5°C

40±6°C

130±5°C

100±15°C

50±5°C

43±6°C

135±5°C

105±15°C

55±5°C

45±6°C

140±5°C

110±15°C

60±5°C

50±10°C

145±5°C

115±15°C

65±5°C

50±10°C

150±5°C

120±15°C

70±5°C

50±10°C

155±5°C

125±15°C

75±5°C

55±10°C

160±5°C

130±15°C

80±5°C

55±10°C

165±5°C

135±15°C

85±5°C

55±10°C

170±5°C

140±15°C

90±5°C

60±10°C

175±5°C

145±15°C

95±5°C

65±10°C

180±5°C

150±15°C

100±5°C

75±10°C

185±5°C

160±15°C

105±5°C

80±15°C



190±5°C

165±15°C

110±5°C

80±15°C



200±5°C

170±15°C

115±5°C

85±15°C



210±5°C

175±15°C

120±5°C

90±15°C



215±5°C

180±15°C

125±5°C

95±15°C



220±5°C

185±15°C

The specification can also be manufactured as request.

 AC125V/250V ksd301 thermal switch

 Please tell me the floowing important points when you send me quotation

>contact type:normally-closed or normally-open

>the ampere rating and voltage rating

>the function temperature

>the tolerance you want

>the specific type or specific requirements

If you have photo or datasheet ,Please send it to me)

 Shipping



1, We can ship goods all over the world by DHL, UPS, FedEx, TNT and EMS. The packaging is very safe and strong. Please notify me if you have any special needs.
2, It will take around 3-5 days to reach your hands



Quality insurance and warranty







>Replacement of defective products for free







>Warranty period 1 Year
