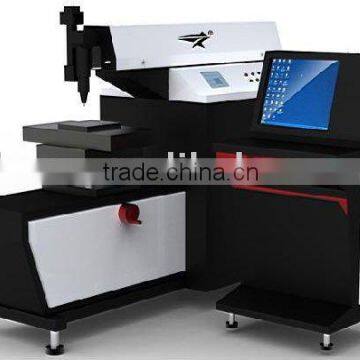

Gold Laser Welding Machine

Specifications

Gold Laser Welding Machine
small heat affected zone,small distortion
high speed
joint surface smooth

Gold Laser Welding Machine

Gold Laser Welding Machine also named NC Laser welding machine,undercontrolling of computer program,the complex plane line,arc and welding process can be completed by spotwelding,but welding sitch welding and seal welding automatically or semi -automatically .YAG laser welding of Tianqi Laser  will be produced according to the requirement of customer .



Gold Laser Welding Machine be used to weld alloy and metal ,such as gold ,silver ,platinum,stainelss steel ,titanium and aluminum,etc.The equipment  have been widely applied in Aviation ,spaceflight shipping ,petrochemical ,appliance commodity,medical device ,electronic ,autombile industry.



Service

Tianqi Laser euipment manufacturing company already set up a marketing management center, 16 offices across our domestic country and 3 branches worldwide,expert technical engineers provide comprehensive pre-sale, after sales support and service. We provide one year warranty and lifetime maintenance. Also we provide online and telephone service 24 hours a day, when it is necessary, we will send technician to the customer side to solve the problem.



Technical parameter :

Model:	TQL-LWY500
Laserwave length	1064nm
Laser material	Nd:YAG
Processing scale	300m×300mm×150mm(can be customized)
Welding depth	2.5mm
Single pulse energy	100J
Output power:	≤500
The smallest spot diameter	0.25mm
Repeatability:	±0.05mm
Consumed power:	18KW
Power supply	380V/50HZ/ 100A ,3 phase
Cooling mode:	water cooling
Main machine size	1400(L)×700(M)×1200(H)
Cooling system size	700(L)×520(M)×900(H)

Pls let me know the following information:

1,What kind of material do you want to weld or process?

2,What is the dimension of your material(including length,width and thickness)?

According to the above information ,we will recommend the most suitable machine for your metal.
