Blue Aluminum Foil for AC

Name: Blue Aluminum Foil for AC
Brand: jinding
SKU: 116569729
Availability: InStock

US$ 2,800 - 3,200 MOQ: 2 Tons

Key Specifications

Temper:

Soft

Use:

Other, air conditioner

Treatment:

Coated

Zhejiang Shuanglin Jiate Metal Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of china

Delivery Detail:

Delivery time depends on order quantity.

Temper Soft

Use Other, air conditioner

Treatment Coated

Type Roll

Alloy 1100 8011

Thickness 0.08-0.2mm

Place of Origin China

Brand Name jinding

Model Number jdx

Specifications

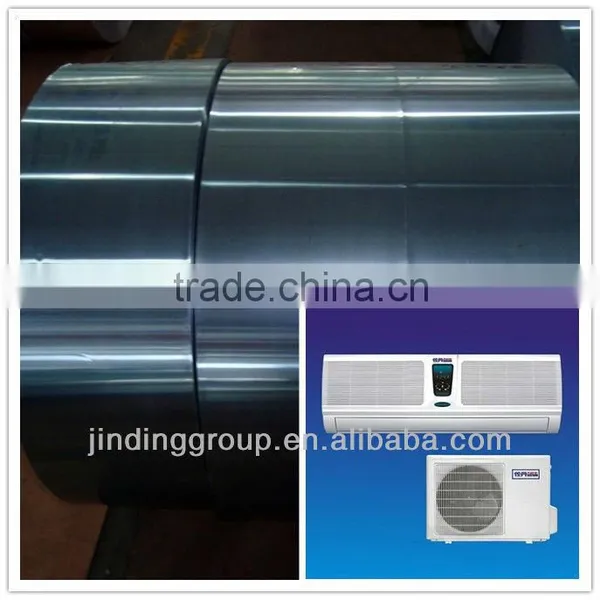

Blue Hydrophilic Aluminium Foil for Air conditioner

Hydrophilic aluminum foil/ air conditioner foil/ blue foil/ fin stock
hydrophilic aluminum foil is widely used for house

alloy:1100,1030B,8011,3102
temper:H22,H24,H26,O
thickness:0.08- 0.2mm

NO	Features & requirements	Test items	Test methods	Reguirements
1	Coating thickness	Thickness	Chambre captivity	(Single side)(0.001mm-0.002mm)
2	Adgesiive power	Adhesion test	Blade grid maker	Coat not fall off
		Cupping test	Cupping machine	Coat not fall off
		bend test	Vise	Coat not fall off
3	hydrophilic(initial stage)	Contact angle	Drip contact	≤10° ≥2.5mm ≤10° ≥2.5mm
		After washing	Drip contact	≤15° ≥2.5mm ≤15° ≥2.5mm
		Water drop test		≥3.0mm ≥3.0mm
4	(continuance)hydrophilic	Dead water dipping test	Dry and met cycle tank	≤30° ≥2.5mm ≤30° ≥2.5mm
4	(continuance)hydrophilic	Dry and wet cycle test	Dry and met cycle tank	≤35° ≥2.5mm ≤35° ≥2.5mm
5	Corrosion	Salt.spray test	(72h)Salt.spray tester	≥tNo9.8no hole
6	Heat-resisting Property	200°C	Heat 5°C min in the oven at 200°C	No color change No terrible smell
7	Solvent Resistance	Heat and dissolve trethylene		≤1%
8	Alkaline Resistance	The change of hydrophilicity after alkali eroding		≥2.5mm
9	Anti-volatility	Naphtha's effect on coat's hydrophilicity		≥2.5mm
10	Trethylene-resistant	trethylene's on coat's hydrophilicity		≥2.5mm
11	Shapability	During manufacturing, check the abrasion of high died mould by hydro-coat.
