Specifications

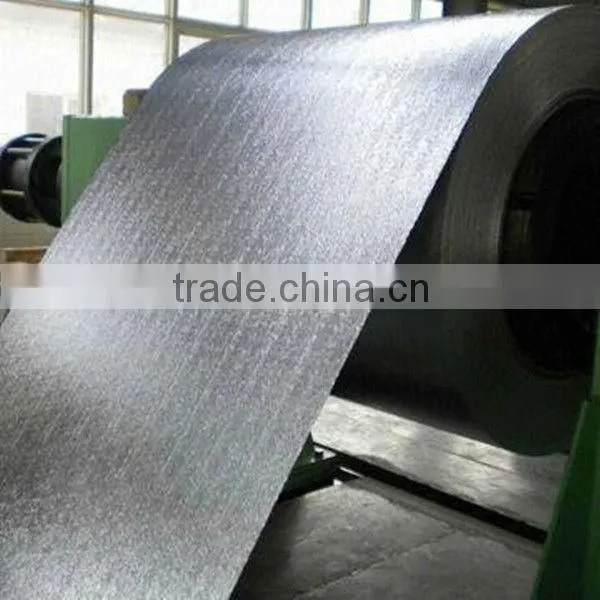

1,Stucco embossed aluminum coil2,Aluminum thickness: 0.24~0.80mm
3,Used for roofing ceiling
4,With PVDF, PE paint coating
Specifications:
01) Alloy: A3003 A1100 A8011 A1050etc
02) Aluminum thickness: 0.024mm~0.80mm
03) Aluminum max width:1600mm
Standard width: 1240mm
Special width such as 1300mm, 1520mm, 1570mm, 1595mm are also available
04) Coil's standard diameter: 1200mm
Interior diameter:150mm,405mm or 505mm
05) weight: 2.5T/coil 3.0 T/coil
06) Coating finish: PVDF, POLYESTER, ACRYLIC
07) Gloss: meet the customer requirement
08) Total coating thickness:
PVDF coating: more than 25 micron
Polyester coating: more than 18 micron
09) Coating hardness (pencil hardness) more than 2H
10) coating adhesive : no lower than first grade
11) Impact resistance: No cracking and peeling (50kg/cm ,ASTMD-2794:1993)
12) Flexibility (T-bend): 2T
13) MEK resistance: more than 100
14) Bottom side aluminum sheet is coated with protective polyester material, thickness more than 6 micron
15) outer packing ;export standard , wooden plate .
Applications:
Used to manufacture decorative materials, such as aluminum veneers, aluminum plastic panels, perforated panels, and clean plates, etc:
1) Exterior applications: wall cladding, facades, roofs and canopies, tunnels, column covers or renovations
2) Interior applications: wall cladding, ceilings, bathrooms, kitchens and balconies
3) Advertisement and market applications: display platforms
signboards, fascias and shop fronts
4) Transport and industrial applications
Hangzhou Jinding Group
specializes in manufacturing Aluminum sheets,aluminum coils,Aluminum Foils and Aluminum Strips/Tapes.
(1)we have the certificate of ISO 9002;
(2) our quality is based on EN,ASTM,JIS.
aluminum coil |
|
|||
Alloy |
Thickness(mm) |
Width(mm) |
Temper |
DC or CC |
1050,1060,1070,1100,1235,1145 |
0.2-4.0 |
20-1500 |
O,H12,H22,H14,H24,H16,H26,H18 |
DC, CC |
4.0-12.0 |
1000-1500 |
H111,H112 |
DC |
|
3003,3004,3105 |
0.2-4.0 |
20-1500 |
O,H12,H22,H14,H24,H16,H26,H18 |
DC, CC |
4.0-12.0 |
1000-1500 |
H111,H112 |
DC |
|
5052,5083,5754,5005 |
0.2-4.0 |
20-1500 |
O,H12,H22,H14,H24,H16,H26,H18 |
DC |
4.0-12.0 |
1000-1500 |
H111,H112 |
DC |
|
8011 |
0.0065-0.2 |
20-1200 |
O,H22 |
DC,CC |
ID |
505mm,75mm,150mm etc. |
|||
Packing |
eye to wall |
|
||
eye to sky |
|
|||
Application |
Mainly in printing(PS plate base), Aluminum-plastic composite panel base, construction, decoration, capacitor, cover material, deep drawing products, refrigeration, air conditioner, automobile etc. |
|||
MOQ |
5mt |
|||
Contact Person |
Name: Ms Amelia |
|||
Mobile: +86 13634103001 Skype: amelia2026 | ||||
