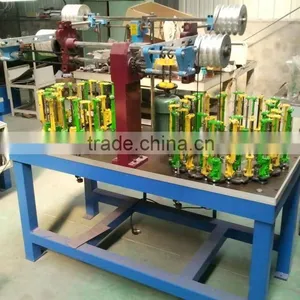

Help CenterRope Braiding Machine J
Related Products
-
M77 Rope Making MachineUS$ 40,000 - 45,000MOQ: 1 Set -
M66 Rope Making Machine for Marine RopeUS$ 28,000 - 32,000MOQ: 1 Set
-
M44 Rope Making MachineUS$ 10,000 - 15,000MOQ: 1 Set
-
M55 Rope Making Machine for Coconut Fibre Rope Quality ChoiceUS$ 20,000 - 25,000MOQ: 1 Set
-
Rope Making MachineUS$ 25,000 - 80,000MOQ: 1 Set
M66 Combined Strander and Rope Layer
For production of finished coiled rope from natural and synthetic fibre yarns
Produces coils from 390m to 2330m
Three-strand and four-strand models
From start to finish in one continuous operation
Extremely high output
Key features
- Hydraulic take-up system
- Increased take-up capacity
- Two rope lays per revolution
- Constant winding tension
- Inverter drive
- User-friendly touchscreen control panel
- Lightweight rotating parts
- Low noise level
- Low power consumption
- Simple, robust design
- Easy to change strand twist
- Highly reliable
- Easy to maintain
Technical Data
Rope Range |
Φ8-20mm |
|
Flyer Speed |
0-max.450rpm, depending on pre-twist factor |
|
Rope Lay |
S and Z |
|
Twists Per Minute |
2×rope flyer speed |
|
Lay Length |
21-106mm/47-9.4 twists per meter |
|
Pre-twist Factor |
0.6-2.1×rope twist |
|
Take-up, Coiling head |
Φ670mm, adjustable traverse max.400mm, barrel φ210 |
|
Take-up, max. weight |
Polypropylene 70 kg |
|
Pay-off Package |
M66-3 |
M66-4 |
|
3×18, max. Φ250x300mm traverse |
4×18, max. Φ250x300mm traverse |
Take-up Capacity
|
Coiling Head |
Φ8 |
2,330m |
Φ12 |
1,060m |
Φ16 |
600m |
Φ20 |
390m |
Production Capacity
|
Output |
Flyer Speed |
Φ8 |
371kg |
450rpm |
Φ12 |
1,187kg |
450rpm |
Φ16 |
2,502kg |
400rpm |
Φ20 |
3,970kg |
325rpm |
Examples based on three strand polypropylene rope.
Prewist factor:0.8. Lay length: medium. Efficiency rate:100%, 8 hours' production.
Motor Power: 22kw AC M66-3 Weight: 5,400kg M66-4 Weight: 5,900kg Height: 2.2m
