Wide Flange Beams Hot Rolled H Beam
- Xingang Tianjin
- T/T L/C D/P D/A Credit Card
You May Like
-
Q345 Grade and Hot Rolled Technique Steel h Beam Price
-
Steel Material Construction High Quality Hot Rolled Steel Painted H Beams
-
Structural Carbon Steel h Beam Profile H Iron Beam
-
Q235 Grade Light Steel H Beam
-
High Quality Q235 Q345 H Structural Steel Sections
-
Ganized Hot Rolled Steel H Beam for Construction
Product Details
| Place of Origin | Hebei, China | Grade | Other, Q235B,SM490,SS400,Q345B. | |
| Technique | Hot Rolled | Thickness | 5-34mm | |
| Application | Building Construction, Steel structure | Length | 6-12m | |
| Standard | ASTM | Flange Width | 100~500mm | |
| Flange Thickness | 7-34mm | Web Width | 100mm-900mm | |
| Web Thickness | 5-20mm | Brand Name | SANHE | |
| Model Number | Wide Flange Beams hot rolled H Beam |
Product Description

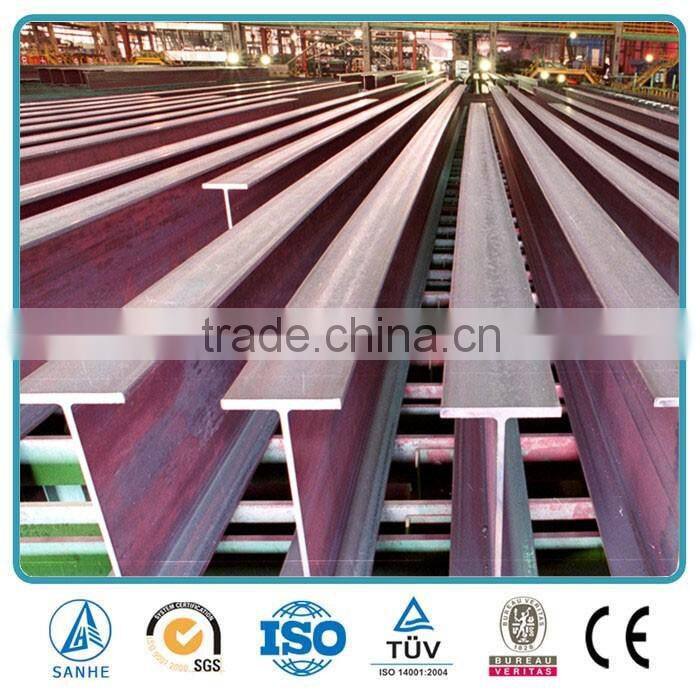

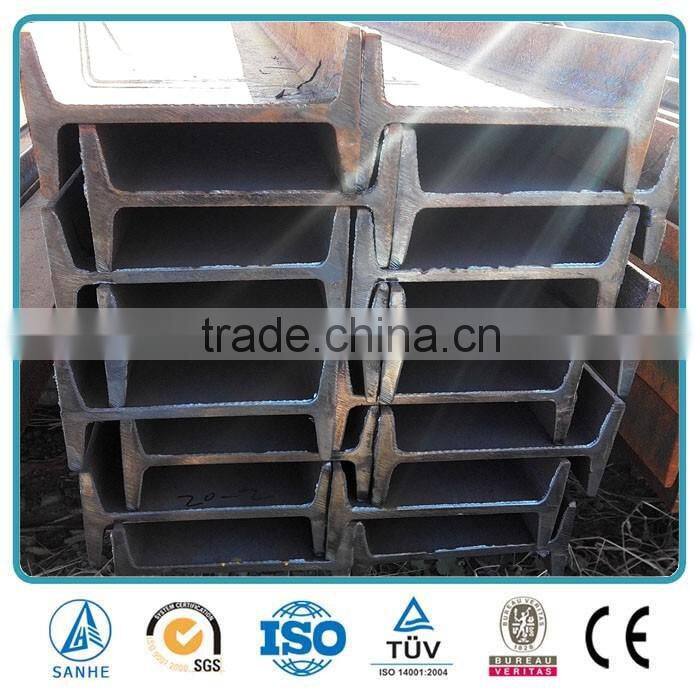

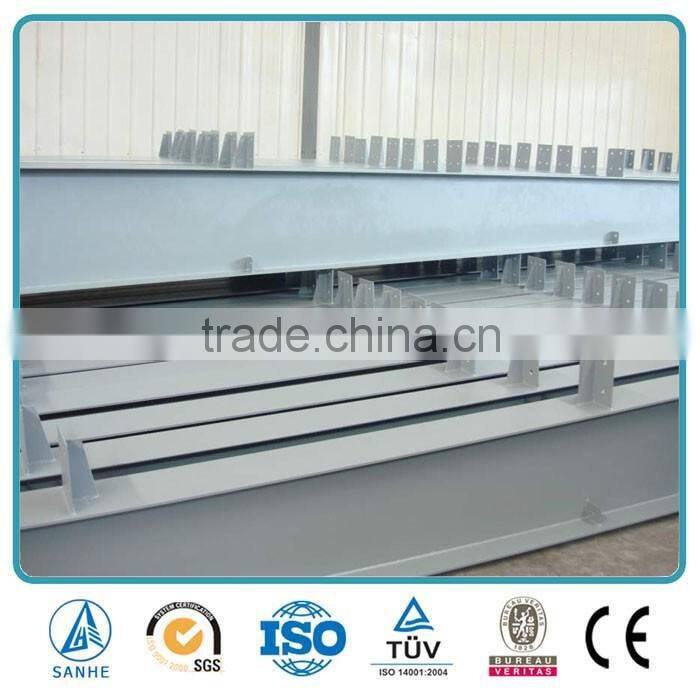

Wide Flange Beams hot rolled H Beam
Name | Wide Flange Beams hot rolled H Beam |
Material Grade | Q235B,SM490,SS400,Q345B... |
Standard | GB, ASTM, AISI, BS, DIN, JIS |
Web Thickness | 5-20mm |
Flange Thickness | 7-34mm |
Web Width | 100-900mm |
Flange Width | 100-500mm |
Length | 9m/12m or as your requirement |
Packing | In bundles |
GB H Beam Specification | ||||||
Item
| Size (mm)
| Section Dimension (mm) | Theoretic Weight (kg/m)
| |||
H | B | T1 | T2 | |||
HW | 100*100 | 100 | 100 | 6 | 8 | 17.2 |
125*125 | 125 | 125 | 6.5 | 9 | 23.8 | |
150*150 | 150 | 150 | 7 | 10 | 31.9 | |
175*175 | 175 | 175 | 7.5 | 11 | 40.3 | |
200*200 | 200 | 200 | 8 | 12 | 50.5 | |
200 | 204 | 12 | 12 | 56.7 | ||
250*250 | 250 | 250 | 9 | 14 | 72.4 | |
250 | 255 | 14 | 14 | 82.2 | ||
HM | 150*100 | 148 | 100 | 6 | 9 | 21.4 |
200*150 | 194 | 150 | 6 | 9 | 31.2 | |
250*175 | 244 | 175 | 7 | 11 | 44.1 | |
300*200 | 294 | 200 | 8 | 12 | 57.3 | |
350*250 | 340 | 250 | 9 | 14 | 79.7 | |
600*300 | 582 | 300 | 12 | 17 | 137 | |
588 | 300 | 12 | 20 | 151 | ||
594 | 302 | 14 | 23 | 175 | ||
HN | 150*75 | 150 | 75 | 5 | 7 | 14.3 |
175*90 | 175 | 90 | 5 | 8 | 18.2 | |
200*100 | 198 | 99 | 4.5 | 7 | 18.5 | |
200 | 100 | 5.5 | 8 | 21.7 | ||
250*125 | 248 | 124 | 5 | 8 | 25.8 | |
250 | 125 | 6 | 9 | 29.7 | ||
300*150 | 298 | 149 | 5.5 | 8 | 32.6 | |
300 | 150 | 6.5 | 9 | 37.3 | ||
350*175 | 350 | 175 | 7 | 11 | 50 | |
400*200 | 396 | 199 | 7 | 11 | 56.7 | |
400 | 200 | 8 | 13 | 66 | ||
450*200 | 446 | 199 | 8 | 12 | 66.7 | |
450 | 200 | 9 | 14 | 76.5 | ||

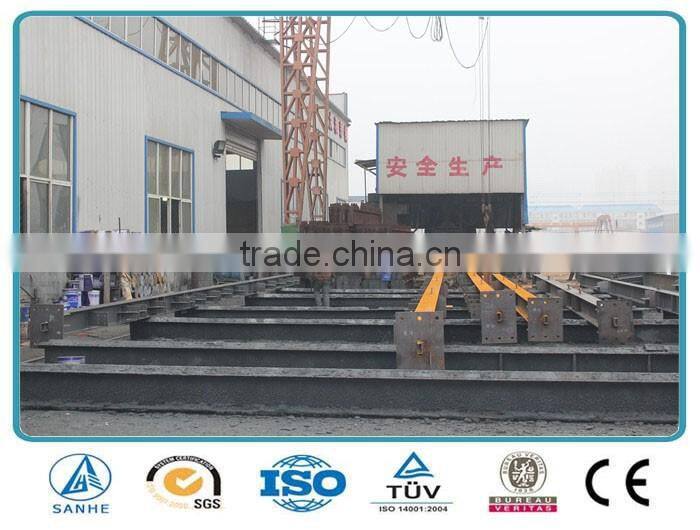

"Shijiazhuang Sanhe Light Steel Co., LTD." is a manufacturer which is devoted to steel products and steel projects. When you choose us, you will have peace of mind for many years to come.
In order to offer the highest levels of products and service, we have engineers and designers who have more than 15 years of experience join us. In the meantime, the inspection team worked with our workers in the whole manufacturing process to assure the quality....
Emily Lee
Shijiazhuang Sanhe Light Steel Co.,ltd
Tel: 0086-311-85042016
Email: emily at china-roof dot com
Factory Address: Sijiazhuang Town, Shijiazhuang City, Hebei Province,China.
We are at your Service
Ensure quality,Factory direct price,Fast delivery,OEM Service
