Specifications
1. silver onlaid contact strip2.10 years manufacturing experience
3.High quality with ROHS report
4.All size can be customed

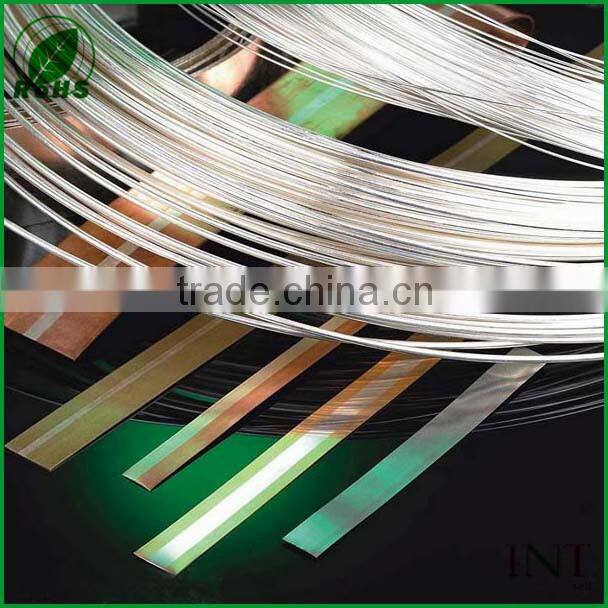

best price with best quality electrical materials silver onlaid contact strip
silver metal onlay copper or brass metal, with high temperature hot composite, form to clad metal strip as a electric material.
Clad metal Characteristic:
1. Offer flexibility of material design; being able to produce the electrical contact with high mechanical and electrical contact characteristics
2. Save precious metal materials with low prices, as precious metal is only used at electrical contact spots.
3. Precious Clad Metal Material is suitable for continuous automatically manufacture. It does not need other manufacture process, such as welding or soldering after its formation.
4. It simplifies manufacturing process of electrical parts with high productivity, and raises the assembly precision credibility of electrical component.
5. Offer flexibility of material design; being able to produce the electrical contact with high mechanical and electrical contact characteristics
Main Materials for silver copper clad metal strip series:
Face material : Ag,AgNi,AgCdO,AgSnO2
Middle material: Cu,brass,Phosphor copper, Beryllium copper
Base material: nickel,monel, low carbon steel, brazing
Main Application:
Clad metal strip is mainly used for all sorts of electrical component production, such as, micro motors, electrical brush, commutator, jiggle plug/socket, relay, connector, tuner, etc. It is also suitable for continuous automatically manufacture.
Specification
All dimensions are according to customers requirements.
| Total Width | Silver Width | Total Thickness | Silver Thickness | Total Width Tolerance | Total Thickness Tolerance |
| 1.5-60 | 1.5-60 | 0.1-0.5 | 0.05-0.3 | ±0.5 | ±0.03 |
| 1.5-60 | 1.5-60 | 0.6-1.5 | 0.05-1.0 | ±0.1 | ±0..05 |
| 1.5-60 | 1.5-60 | 1.6-3.0 | 0.05-1.5 | ±0.2 | ±0..08 |
| General technological process for inlay strips | |||
| Order | Process | ||
| 1 | Copper strip slotting | ||
| 2 | Surface treatment | ||
| 3 | Hot composite | ||
| 4 | Diffusion annealing | ||
| 5 | Cleaning | ||
| 6 | Precision rolling, | ||
| 7 | Striping processing | ||
| 8 | Forming to rolls | ||
| 9 | Test and Inspection | ||
| 10 | Packing | ||
Equipment & Test Equipment:
Germany Hi-precision Roller Machine; Hi-precision Vertical Cutting Machine; Slotting Machine; Ionic Absorption Test System AAS; Light Processor & Metallographic Microscope; Digital Light Processor; Strength Tester; Hardness Tester.
| Payment & Delivery Terms | |||||
| Minimun Qrder Quantity | 50 Kilogram | ||||
| Packing Details | In reel packed with vacuum plastic film, then in carton or wooden box | ||||
| Delivery time | 20 days | ||||
| Payment Terms | T/T, L/C, ESCROW, West Union, MoneyGram | ||||
| Supply Ability | 10 tons per Month | ||||
About shipment
1. By sea, by air, by door to door express (FedEx, UPS, DHL, TNT, EMS).
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different because of different weight and destination, we will choose the cheapest and safest way according to your detailed requirement.
4. Normally, it will take around 3-7days from China to destination country
