Home > Electrical & Electronics > Connector & Terminals > Terminals > ISO Standard Electrical Contact Material Silver Copper Alloy Strip

ISO Standard Electrical Contact Material Silver Copper Alloy Strip

US$ 35 - 399 MOQ: 50 Kilograms

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

INT

Model Number:

INS169

Contact Supplier Request Quote Chat Now

Dongguan INT Metal Products Factory

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Guangzhou HK

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name INT

Model Number INS169

Specifications

1. 10 years manufacturing,
2. full quality guarantee
3. ISO/SGS/ROHS
4. inspection test report

silver clad copper alloy series clad metal strips

Main Materials:

1.Face material : Ag, AgNi, AgCdO,AgSnO2,AgZnO, AgSnO2In2O3

2.Base material: Cu,brass,Fe, SUS,BeCu,Phosphor copper

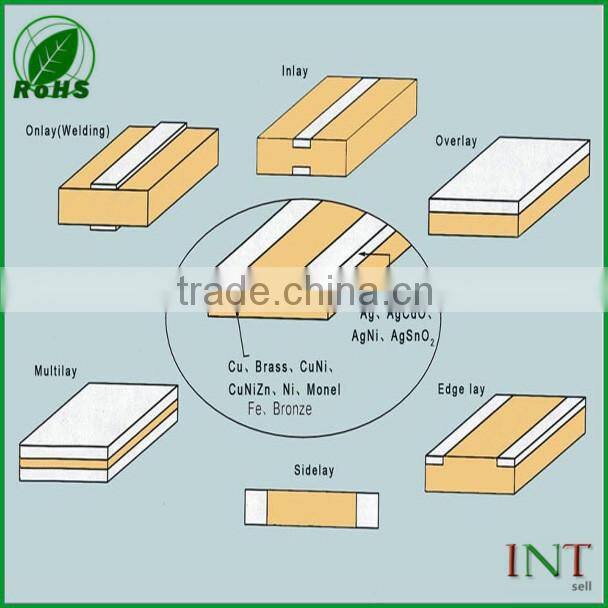

Product Types:

one layer, two layers, three layers,... Inlay

one layer, two layers, three layers... Onlay/toplay

Overlay /coverlay, edgelay,side day

onlay clad metal strips inlay clad metal strips overlay clad metal strips copper /brass clad silver strips

Characteristic:

1. Clad Metal strip is a kind of new functional composite material. It is based on the copper or copper alloy. Precious metal, silver or silver alloy are cladded on the base metal as an inlay or overlay through special bonding process.

2. It is a new technical material, based on different industry needs, formed by advanced indoor temperature composite technology or hot composite technique. It is rolled with different alloy material and base material strip. After well composited, its electrical character and wearability are much better than single precious metal (such as gold and silver).

3. It is saving precious metal, keeping low cost and consistency of social development.

General technological process for inlay strips
Order	Process
1	Copper strip slotting
2	Surface treatment
3	Hot composite
4	Diffusion annealing
5	Cleaning
6	Precision rolling,
7	Striping processing
8	Forming to rolls
9	Test and Inspection
10	Packing

Process flow chart for inlay clad meal strip

Specification for clad metal strips

All dimensions are according to customers requirements.

Total Width	Silver Width	Total Thickness	Silver Thickness	Total Width Tolerance	Total Thickness Tolerance
1.5-60	1.5-60	0.1-0.5	0.05-0.3	±0.5	±0.03
1.5-60	1.5-60	0.6-1.5	0.05-1.0	±0.1	±0..05
1.5-60	1.5-60	1.6-3.0	0.05-1.5	±0.2	±0..08

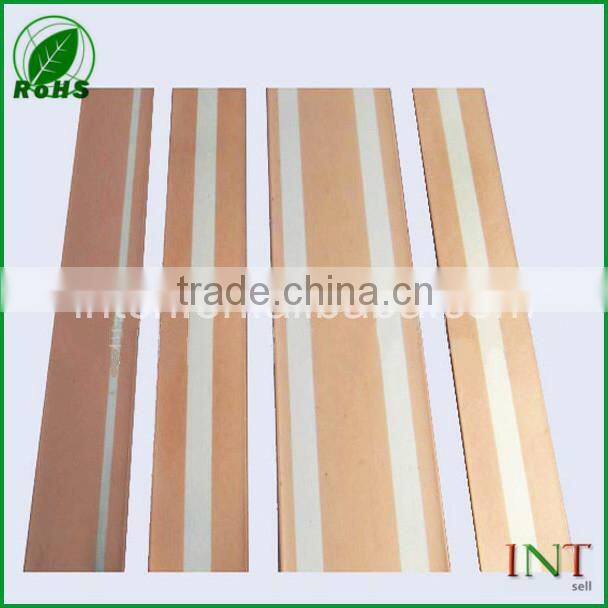

Products Pictures Show:

Equipment & Test Equipment:

Germany Hi-precision Roller Machine; Hi-precision Vertical Cutting Machine; Slotting Machine; Ionic Absorption Test System AAS; Light Processor & Metallographic Microscope; Digital Light Processor; Strength Tester; Hardness Tester.

Manufacture Facility

Test Equipment

Payment & Delivery Terms
Minimun Qrder Quantity		50 Kilogram
Packing Details		In reel packed with vacuum plastic film, then in carton or wooden box
Delivery time		20 days
Payment Terms		T/T, L/C, ESCROW, West Union, MoneyGram
Supply Ability		10 tons per Month

Packaging & Shipping

About shipment

1. By sea, by air, by door to door express (FedEx, UPS, DHL, TNT, EMS).
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different because of different weight and destination, we will choose the cheapest and safest way according to your detailed requirement.
4. Normally, it will take around 3-7days from China to destination country

Thank you for coming to our website. If you have any questions or suggestions, please do not hesitate to contact us, we will reply you within 12 hours, see more details of clad metal strips please click http://intcn.en.china.cn/productgrouplist-222352481/Clad_metal_strips.html !!!
