Specifications
1.Bimetal strips2.Advanced composite technology
3.Saving precious metal
4.Higher performance
Bimetal strips
Main Materials:
Face material : Ag,AgNi,AgCdO,AgSnO2
Base material: Cu,brass,Fe, SUS,BeCu,Phosphor copper
Product Types:

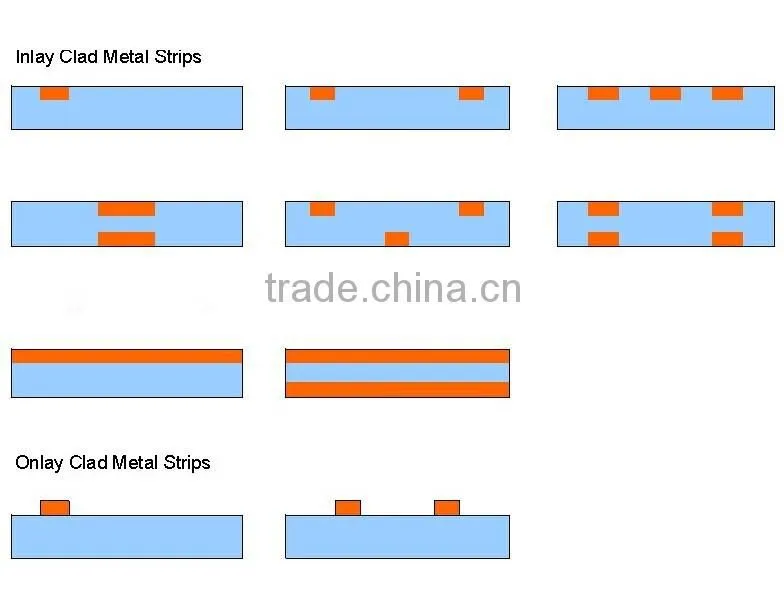

One-layer inlay, Bi-layer inlay, Tri-layer inlay, Onlay, Overlay
Main Application:
Clad metal strip is mainly used for all sorts of electrical component production, such as, micro motors, electrical brush, commutator, jiggle plug/socket, relay, connector, tuner, etc. It is also suitable for continuous automatically manufacture.
Characteristic:
1. Clad Metal strip is a kind of new functional composite material. It is based on the copper or copper alloy. Precious metal, silver or silver alloy are cladded on the base metal as an inlay or overlay through special bonding process.
2. It is a new technical material, based on different industry needs, formed by advanced indoor temperature composite technology or hot composite technique. It is rolled with different alloy material and base material strip. After well composited, its electrical character and wearability are much better than single precious metal (such as gold and silver).
3. It is saving precious metal, keeping low cost and consistency of social development.
Specification
All dimensions are according to customers requirements.
Total Width |
Silver Width |
Total Thickness |
Silver Thickness |
Total Width Tolerance |
Total Thickness Tolerance |
1.5-60 |
1.5-60 |
0.1-0.5 |
0.05-0.3 |
±0.5 |
±0.03 |
1.5-60 |
1.5-60 |
0.6-1.5 |
0.05-1.0 |
±0.1 |
±0..05 |
1.5-60 |
1.5-60 |
1.6-3.0 |
0.05-1.5 |
±0.2 |
±0..08 |
About sample time:
Within 10 days
Process flow chart
Quality Control
About shipment
1. By sea, by air, by door to door express (FedEx, UPS, DHL, TNT, EMS).
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different because of different weight and destination, we will choose the cheapest and safest way according to your detailed requirement.
4. Normally, it will take around 3-7days from China to destination country
Thank you for coming to our website. If you have any questions or suggestions, please do not hesitate to contact us, we will reply you within 12 hours!!!
